PQ35 High Frequency Transformer Bobbin

PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.

  • brand:

    MCT
  • item no.:

    MCT-PQ3512
  • MOQ:

    3000
  • shipping port:

    ShangHai
  • payment:

    T/T in advance
contact now
product description

Hot selling PQ35 coil former, PQ35/30 power supply transformer bobbin, supply matched PQ35 ferrite cores.

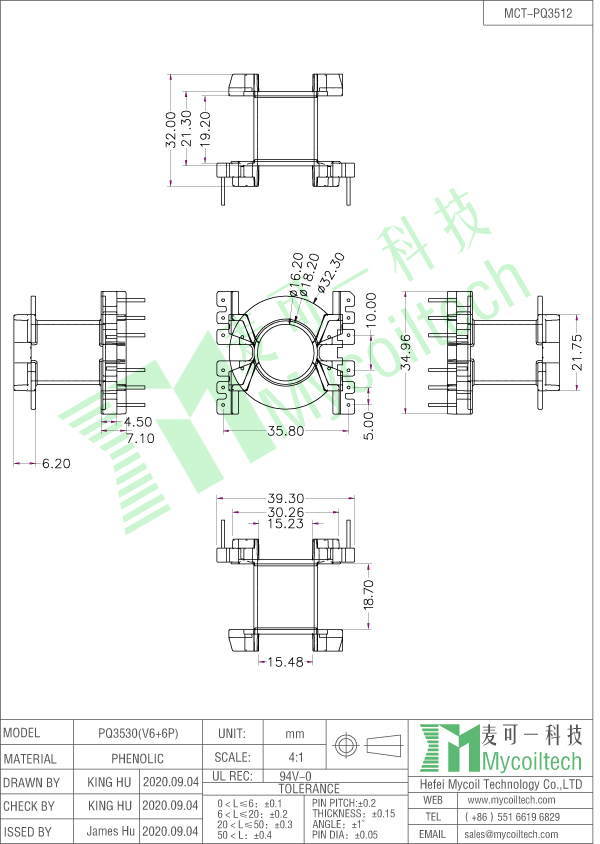

Product Specification

PQ35 vertical bobbin 6+6 pins


Welcome customized high frequency transformer:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily

Request a Free Quote

If you are interested in our products or have any questions, contact us now!

  • Subject :

    PQ35 High Frequency Transformer Bobbin
  • item no :

    MCT-PQ3512
  • You can contact us any way that is convenient for you. We are available 24/7 via fax, email or telephone.
