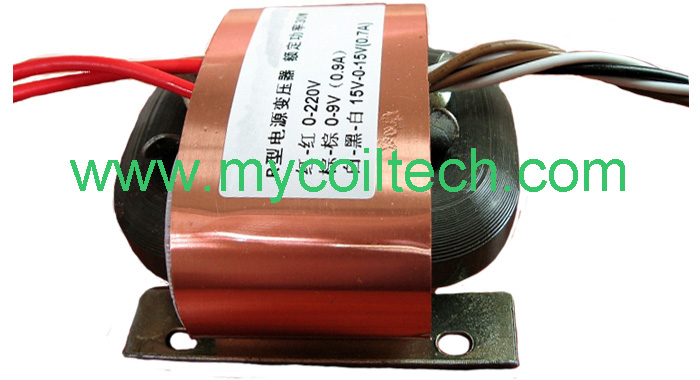

R Type transformer Applications and Features

R type transformer is a type of dry-type transformers. Its core system using width varying quality oriented cold rolled silicon steel coils made of round the waist, and a circular section, can be wound without cutting. Thus, thereby producing a transformer noise, magnetic flux leakage small, no-load current is small, low iron loss, high efficiency; and since the coil is cylindrical, short length of the copper per lap, so resistance is small, low copper loss low temperature, overload small fluctuations, power better than toroidal transformer; in addition, the beginning of the secondary winding skeleton using fire-retardant PBT engineering plastics winding respectively, whereby high dielectric strength, flame retardant.

R-type transformers with new and unique structure, excellent electromagnetic properties are being increasingly favored by the electronics industry. Especially suitable for medical equipment, display equipment, audio equipment, office equipment. It has a high Ratio, small size, light weight and other characteristics. Since the core without cutting, low iron loss, coupled with high-quality materials and compact structure, the distance between the core and windings minimize it Ratio of up to 90%. R-type core transformer no air gap and winding evenly distributed, so small magnetic flux leakage. No need to design anti MFL measures.

R-type transformer noise is particularly low, with good isolation effect, high output power. Using high-precision winding machine manufactured by R-type transformers in the instrument or audio equipment with outstanding performance, can improve the signal to noise ratio of the device, isolate the power grid to bring multiple harmonic interference devices, enabling audio tone loss decreased dynamically increase and improve sound quality.

We produce and design R type transformers

High insulation R type transformer widely used in industrial control, home appliances, Premium Sound, signaling devices, office equipment, communications equipment, test equipment and medical instruments.

MCT provides customers with customization of magnetic components such as high frequency transformers, commom mode choke inductors, EMI filters and so on. Our R type transformer core winding is cut free using high-grade oriented silicon steel sheet, and thus a small volume. Light weight (EI type transformer than 30% smaller, 40% lighter, 40% thinner).

Our products can be customized according to customer requirements. if you are interested in our customized R type electronic transformers, welcome to contact us(sales@mycoiltech.com)
