Choke Copper Coil Inductor SMD Base 3+3 Pins

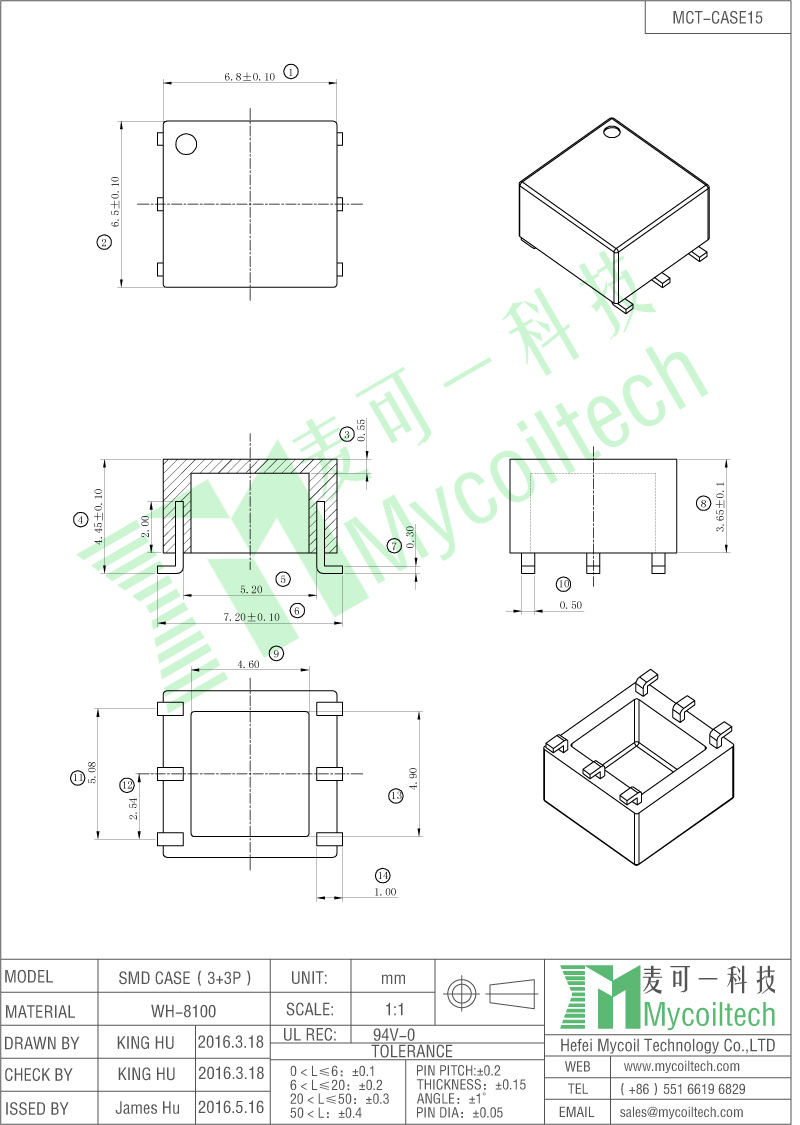

Inductor base for circuit board. we manufacture various transformer and inductor for customer. WH-8100 material inductor SMD case with 3+3 pins. When transformer assembled by bobbin and magnet cores, we use case to cover the transformer.

product origin:
China
brand:
MCT
item no.:
MCT-CASE15
shipping port:
Shanghai
payment:
T/T in advance
price range:
3000-5000/0.061$

contact now

product description

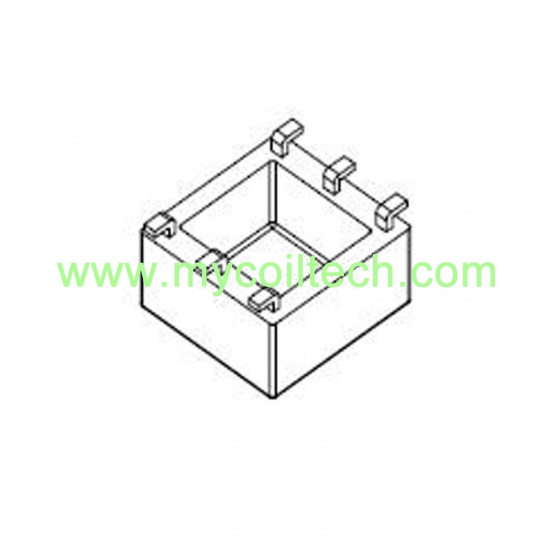

New tooling case, 3+3 pins common mode choke case, competitive price and short delivery time.

Quick Details

Part No: MCT-CASE15	Brand Name: MCT
Material: WH-8100	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
