SMD EFD15 High Frequency Transformer Case

SMD EFD15 horizontal case, 6+6 pins SMD EFD15 bobbin case. Case size=18.4mmX21.45mmX8.15mm,The case thickness is 0.6 mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.Of course, our professional technical personnel can customize transformer-related components.

product origin:
China
brand:
MCT
item no.:
MCT-SMD-EFD1530

contact now

product description

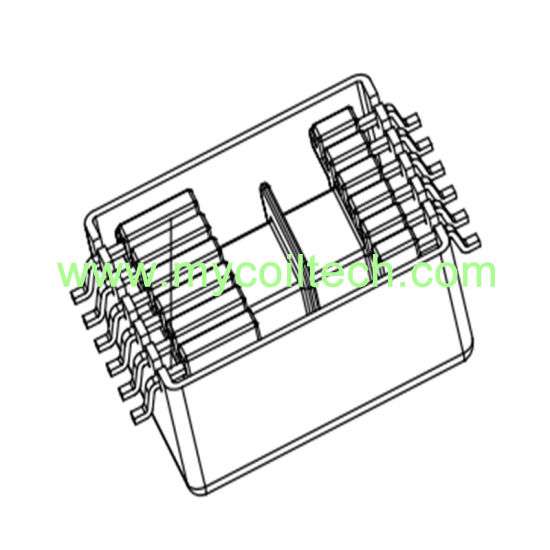

EFD15 transformer SMD case. It integrates flame retardancy, EMI shielding, and efficient heat dissipation. Compact structure ensures easy installation and stable high-frequency performance.

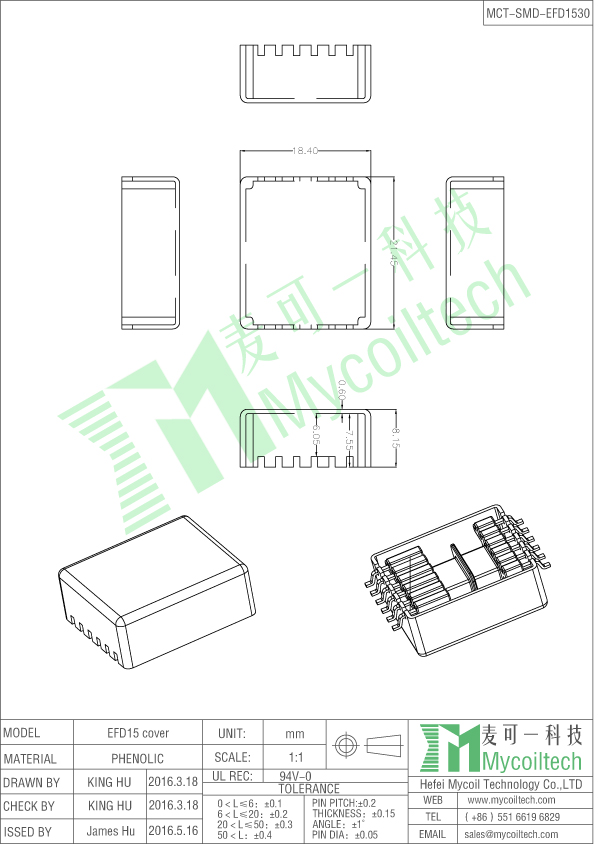

Production Specification

EFD15 bobbin SMD case
