EE04 Electron Transformer Vertical Bobbin 5+5 PinsVertical EE16 bobbin. EE16 bobbin 5+5 pins, coil former size=19.00mmX11.50mmX16.00mm, parallel distance=14.00mm, pin distance =4.00mm. We provide customized services, including matching ferrite cores, transformer bobbins, covers, bases, etc. If you cannot find a suitable product size, we have professional engineers who can customize a suitable product for you. -
Common Mode Inductor Base 3+3 PinsCommon mode choke for converter base product, we use PHENOLIC (PHENOLIC resin) material for the inductor base, which has significant advantages. It has excellent electrical insulation, extremely low electrical conductivity, can prevent current leakage, and ensure the safety and stability of the circuit. It has good heat resistance and can maintain structural stability below 200℃. It can withstand the working heat of inductors and is not prone to deformation or damage. It has excellent mechanical strength, with strong compressive and tensile resistance, capable of withstanding mechanical stress and ensuring the integrity of the base structure. It has excellent dimensional stability, a low shrinkage rate after curing, ensuring dimensional accuracy and facilitating precise fit with other components. It also has strong chemical corrosion resistance, is stable to acids, alkalis, salts, etc., and can extend its service life. Moreover, it has inherent flame retardancy, reducing the risk of fire. -
EMI filter for AC&DC line Base 2+2 PinsCMC choke for Converter base can enhance installation stability. Through positioning columns, clips or fixed hole structures, the inductor is firmly fixed on the circuit board to prevent inductor displacement and detachment caused by equipment vibration and ensure reliable circuit connection. Secondly, it has an insulating protective function. Insulating materials such as epoxy boards and engineering plastics are often used, which can isolate the inductor from other metal parts, prevent the risk of leakage, and enhance the safety of the circuit. It can also assist in heat dissipation. Some bases are designed with heat dissipation slots or made of high thermal conductivity materials, which can accelerate the heat dissipation generated by the inductor during operation and prevent high temperatures from affecting the performance and lifespan of the inductor. In addition, it can simplify the assembly process. The standardized installation structure enables the inductor to be quickly positioned and installed, reducing manual operation time. At the same time, it protects the inductor body, reduces damage caused by collision and friction during assembly or use, and extends the overall service life of the inductor. -
GU09/POT09 Flat Panel TV Switching Power Supply Transformer BobbinGU09/POT09 Medical equipment switching power supply transformer bobbin ,This is our best-selling product. To meet the diverse needs of different customers, I have launched a product in the GU/POT series. For this product, we have customized two products with different details for customers. We support small-batch orders and can also provide samples for customers. -
GU05/POT05 Vehicle Mounted Inverter Transformer BobbinGU05/POT05 Electric vehicle charger transformer bobbin ,This product measures 5.05x5.05x2.4. In the GU/POT series, we have the advantages of corrosion resistance, high temperature resistance, high insulation and customizability. You can contact me at any time and I will provide you with the best service. -
GU48/POT48 Communication Switch Transformer BobbinGU48/POT48 Electric vehicle charger transformer bobbin ,PA66 material is heat-resistant and highly corrosion-resistant, which significantly extends the service life of the product and enhances its cost-performance competitiveness. Industrial control transformer bobbin Automated transformer bobbin PLC power module transformer bobbin Servo drive transformer bobbin Industrial sensor power supply unit transformer transformer bobbin New energy equipment transformer bobbin The auxiliary power transformer bobbin for photovoltaic inverters Transformer bobbin for the power conversion module of new energy vehicle charging piles Energy storage system DC-DC conversion transformer bobbin Communication switch transformer bobbin Network equipment transformer bobbin Router power conversion transformer bobbin Transformer bobbin for the power supply module of the switching motor Transformer bobbin for 5G base station auxiliary power unit Medical electronic transformer bobbin -
GU59/POT59 Small Medical Equipment Transformer BobbinGU59/POT59 Automated transformer bobbin ,Chemical-resistant self-extinguishing, wide application: It can withstand various chemical media such as oil and flux that may come into contact with transformers during operation, and has self-extinguishing properties. In the event of an unexpected fire, it can delay the combustion and is suitable for multiple fields such as industry, home appliances, and new energy, expanding the application range of customers' products. -
CMC Choke for Converter Base 3+3 PinsEMI filter for AC&DC line Base 3+3 Pins.The base of the inductor needs to isolate the winding from the external circuit to prevent leakage short circuit. The PHENOLIC material has excellent insulation properties, with a volume resistivity of 10¹⁴-10¹⁶Ω · cm, a breakdown voltage resistance exceeding 15kV/mm, and stable performance under high temperature and high humidity conditions. It can ensure that the inductor operates at the rated voltage and is suitable for scenarios with high insulation requirements such as power adapters. -
Common Mode Choke for Converter Base 5+5 PinsHigh power converter inductor Base 5+5 Pins . -

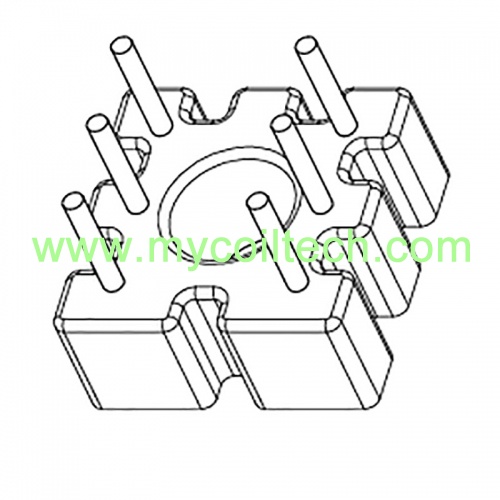

Precision industrial control equipment inductors Base 3+3 PinsPrecision industrial control equipment inductors base .The inductor generates heat during operation, which can easily lead to a decline in performance. The base needs to be heat-resistant and assist in heat dissipation. Youdaoplaceholder0 long-term temperature resistance: 120-150℃, short-term temperature resistance: over 200℃, thermal conductivity: 0.3-0.5W/(m · K), superior to most insulating plastics. It can conduct heat, prevent high-temperature aging, and extend the service life of inductors. -
EMI filter for AC&DC line inductors Base 3+3 PinsHigh-power inductors for vehicles base .The base needs to be resistant to moisture and corrosion. PM-9630 has a water absorption rate of less than 0.3% and is resistant to weak acids and weak alkalis. It is suitable for outdoor new energy equipment such as photovoltaic inverters and wind power converters, and has strong adaptability to harsh environments. -

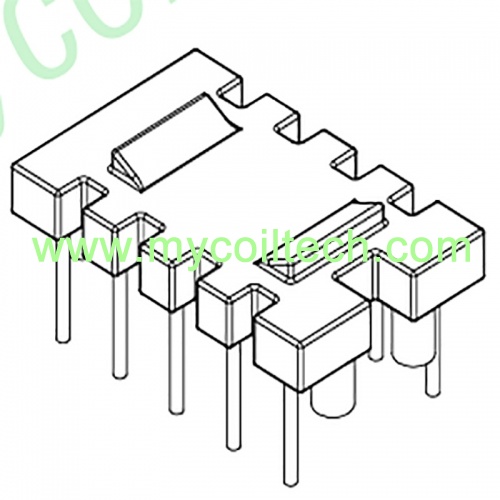

High-power Common Mode Choke Base 12PinsThis is our latest best-selling product, the high-power inductor base 12 pins. LCP-E4008 has a long-term temperature resistance of over 200℃, a thermal conductivity of 0.45W/(m · K), a low water absorption rate (< 0.1%), and is resistant to weak acids, which can extend the service life of the inductor. It is suitable for medium and high-power inductors in high-temperature and high-humidity scenarios such as automotive electronics and industrial control, meeting the requirements of harsh working conditions. -

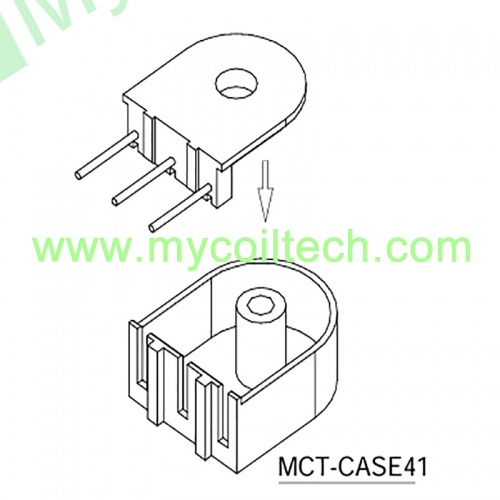

Substation Current Transformer CaseThis is our latest best-selling product, the Engine switching power supply transformer case . -
Noise Suppression Choke Base 3+3 PinsThis is our best-selling product, the anti-interference industrial inductor base. We have our own R&D team and can provide customers with tailor-made products. Meanwhile, we can offer you ferrite core, transformer bobbin, finished transformers, inductors, and current transformers. If you have any questions, please feel free to contact me at any time. -
EFD25 Horizontal Switching Power Supply Driver Transformer Frame 5+5 PinsThe smart speaker EFD25 transformer bobbin is resistant to aging and has excellent mechanical strength, which can meet the usage requirements of conventional working conditions and compact installation Spaces. Its application fields cover Internet of Things terminals, lighting driver power supplies, instruments and meters, and small electronic devices, providing safe and stable power supply conversion support for various products and adapting to the needs of electronic devices in multiple scenarios. -
Power Circuit Energy Storage Filter Inductor Base No PinsAnti-interference industrial inductor base,,this product is made of FR530 material, which can withstand high and low temperatures ranging from -40 to 150℃. It is resistant to oil stains and electrolyte corrosion, can resist vibration, prevent component displacement, avoid short circuits, and ensure stable power supply for charging and navigation systems. -
Switching power Supply ER28 Transformer Bobbin 6+6 PinsAutomotive electronic switching power supply transformer bobbin, In vehicle navigation and chargers, the ER28 transformer can withstand a wide temperature range of -40 ℃ to 125℃. The PHENOLIC frame is anti-vibration and resistant to voltage shock, suitable for vehicle 12V/24V power conversion, ensuring the stable operation of vehicle equipment in complex road conditions. -
Photovoltaic Inverter ER28 Horizontal Transformer Bobbin 6+6 PinsTest instrument switch horizontal transformer bobbin,Applied in precision equipment such as oscilloscopes and multimeters, the ER28 transformer achieves precise voltage conversion. The PHENOLIC skeleton has high insulation accuracy and low loss, providing a stable signal source for test instruments and enhancing the accuracy and repeatability of measurement data. -
ETD3416 Electronic Transformer Bobbin 16+16 PinsNEV Power Drive Transformer Bobbin Made of phenolic material, this bobbin can resist temperatures as high as 370℃. When heated, it forms a carbonized layer to block heat and retard flames, easily handling the heat buildup from ETD34 shigh-frequency work. -
EVD36 Horizontal Electronic Transformer Bobbin 6+6 L PinsOrizontal EVD36 High-Frequency Transformer Bobbin,onstructed from phenolic material, this bobbin exhibits a high temperature resistance of up to 370℃. When exposed to heat, it forms a carbonized layer that provides thermal insulation and flame retardancy, effectively accommodating the temperature rise generated during the high-frequency operation of EVD36. -
GU25/POT25 Encapsulated Transformer BobbinGU/POT25 Power Supply Driven Transformer Bobbin,High-temperature phenolic resin construction: 150–200°C continuous operation; 300°C+ short-term resistance (far exceeding PA66's 130°C limit) Matches ferrite core thermal expansion → prevents deformation from temperature fluctuations Ideal for high-load heat dissipation requirements of GU/POT25 transformers. -
RM05 Driver Power Supply Enclosed Transformer Bobbin 2+2 PinsRM05 Switching Power Supply Vertical Transformer Bobbin,Key applications: smart,wearables,automotive,micro-sensors industrial micro-control modules,Surface mount design , ideal for compact device layouts,Delivers low-power high-frequency voltage conversion ,boosts circuit integration efficiency. -
UU10.5 High Frequency Transformer ClipUU10.5 Power Switching Transformer Clip. Size=18mm×5mm×8mm.Material C5191 T0.4 is the preferred choice for transformer clips. Its precise 0.4mm thickness balances rigidity and flexibility, ensuring stable clamping force to securely hold the magnetic core and eliminate vibration-induced noise. With excellent temperature resistance, it accommodates transformer operating temperature rises, resists corrosion and oxidation, and facilitates easy welding and processing. This significantly enhances transformer assembly stability and service life. -
PCB Specific SMD RM06 Transformer BobbinRM06 Electronic High Frequency Transformer Bobbin,This product utilizes LCP-E4008 material, featuring 40% glass fiber reinforcement. It exhibits a heat deflection temperature exceeding 300°C, offering high-temperature resistance and achieving UL94 V-0 flame retardancy. It offers excellent dimensional stability, low thermal expansion coefficient, superior electrical insulation and chemical resistance, and good melt flow properties, making it suitable for precision injection molding. This ensures stable transformer operation at high temperatures and enhances durability. -
GU/POT30 Switching Power Supply Transformer Bobbin 5+5 PinsCompact POT30 High Frequency Transformer Bobbin 5+5 Pins,Features high space utilization and secure soldering. Widely used in switching power supplies, compatible with small DIY power supplies, DC-DC converters, and other electronics. Effectively isolates coil interference to enhance power conversion stability. Offers outstanding value for money and easy assembly. -
GU/POT30 Power Supply Driver Transformer Transformer Bobbin 5+5 PinsThe POT 33 power drive transformer bobbin features rapid high-frequency response and low losses, meeting the DC-to-AC conversion requirements of solar inverters. As a core component for outdoor photovoltaic equipment, it operates reliably in demanding outdoor environments with minimal heat generation and high efficiency. When paired with EFD cores, it further enhances energy conversion efficiency, facilitating the efficient output of photovoltaic power. -
GU/POT30 Charger Vertical Transformer Bobbin 5+5 PinsThe POT30 electric vehicle charger drive transformer bobbin is suitable for electric vehicle charger modules and compact adapters. Its core advantages lie in its compact size and strong compatibility. It efficiently converts mains power to the required device voltage, featuring secure pins that resist dislodgement. Additionally, it offers excellent heat dissipation properties, ensuring safe and stable charging operations while accommodating diverse charging scenarios. -
POT30 LCD Display Power Supply Vertical Bobbin 4+5PinsPOT30 Flyback Transformer Bobbin 4+5 Pins,The POT33 transformer bobbin plays a vital role in the power supply module for 75W dot matrix printers. It delivers stable voltage to the printer's control unit and transmission mechanism, offering low power consumption and low leakage inductance to ensure precise printer operation. Its straightforward manufacturing process facilitates mass production for batch integration.
