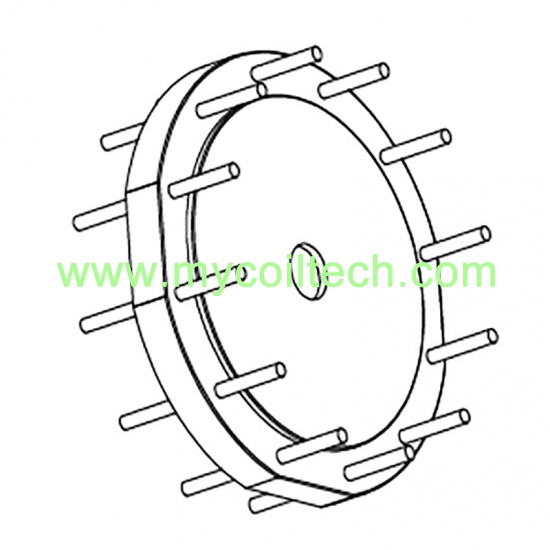

High-power Common Mode Choke Base 12Pins

This is our latest best-selling product, the high-power inductor base 12 pins. LCP-E4008 has a long-term temperature resistance of over 200℃, a thermal conductivity of 0.45W/(m · K), a low water absorption rate (< 0.1%), and is resistant to weak acids, which can extend the service life of the inductor. It is suitable for medium and high-power inductors in high-temperature and high-humidity scenarios such as automotive electronics and industrial control, meeting the requirements of harsh working conditions.

product origin:
China
brand:
MCT
item no.:
MCT-BASE109

contact now

product description

Consumer electronics inductor base.The inductor base is mainly responsible for insulating and isolating the winding from the external circuit, fixing the magnetic core and other components. The LCP-E4008 has excellent insulation (volume resistivity over 10¹⁶Ω · cm), high mechanical strength (bending strength ≥120MPa), can prevent leakage short circuits, resist vibration and shock, avoid inductance value drift caused by component displacement, and ensure the stable operation of the inductor. Miniaturized inductors suitable for high-frequency communication and consumer electronics fields.

Production Specification

Household appliance inductor base

Email: sales008@mycoiltech.com

WhatsApp ID: +86 18788862885

Name：Alex~Mycoiltech

Tel: +86 55166196829
