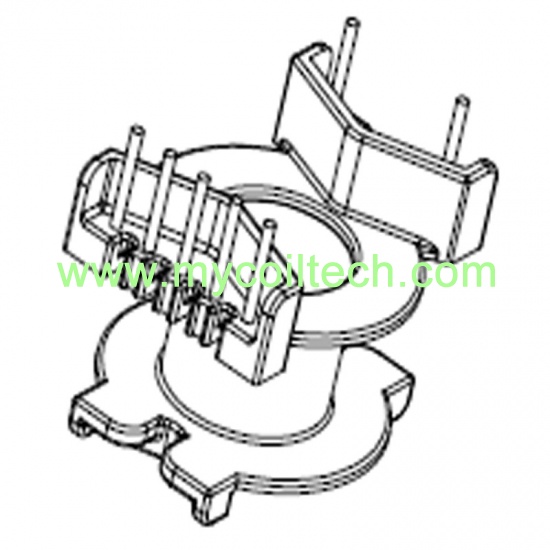

CQ25 transformer bobbin 2+5 pin. Vertical type transformer bobbin. Pin pitch=3mm. Parallel Distance=22.7mm. Phenolic material CQ25 bobbin. Size=26.2mmX23mmX19.5mm. Dip bobbin. We can make bobbin tooling.
brand:
MCTitem no.:
MCT-CQ2501(V2+5P)shipping port:
ShanghaiWe are professional electronic components factory, hot selling CQ25 power transformer bobbin, 5+2 pins CQ25 vertical bobbin. All of our products comply with international quality standards. If you are looking for high quality coil former, welcome to contact us, we also can design for you.
Quick Details
|
Part No: MCT-CQ2501(V2+5P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: CQ25 Vertical High Frequency Bobbin 5+2 Pins Coil Former
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
High Frequency Ferrite R4*20 Core for Inductor
Ferrite rod choke R4*20. High permeability and small size soft ferrite core. Rod core inductor mainly used in LED lighting and car components's driver. DC-DC converter,choke coils. Tele-Communication.Audio and video antenna filters.
EF16 Vertical Transformer Bobbin Dip Bobbin With 2+2 Pins
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Parallel Distance=10.16mm Size=13.8mmX17.5mmX11.8mm
RM10 Electronic High Frequency Transformer Bobbin No Pins Bobbin
No Pins RM10 high frequency transformer bobbin, Phenolic Electronic Transformer Bobbin,UL REC:94V-0 Customized designs are accepted.
High Temperature Resistant Transformer Bobbin EF20
EF20 power transformer. Horizontal type bobbin. Bobbin Size=19.8mmX19.8mmX16.7mm. Pin pitch=5.0mm. Parallel Distance=15.1mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design.
Flyback Transformer EF20 High Frequency Coil Bobbin
4+4 pin EF20 horizontal bobbin. Transformer factory MCT. Bobbin Size=24.0mmX20.0mmX19.5mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design.
EI Low Frequency Encapsulated Transformer with Output Power 12.0 VA to 22.0 VA
EI54 low frequency encapsulated transformer. Standard type cast housing “KK”. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. Per item tested quality with certificate.
7+7 Pins ER35 Transformer Double Slots Horizontal Bobbin
ER35 high frequency transformer manufacture. Double slots ER35 horizontal transformer bobbin. Parallel Distance=37mm. Pin Pitch=5.0mm. 7+7 pins ER35 bobbin. Size=41.5mmX34.2mmX29.2mm. UL REC:94V-0
EE25 Ferrite Core Bobbin For Power Transformer
EE25 vertical bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX19.4mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.
EOP9.5 Bobbins with Ferrite Core Used in Flyback Transformers
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.8mmX9..5mmX12.4mm
EF20 High Frequency Horizontal Ferrite Core Bobbin
EF20 horizontal type coil bobbin. 4+4 pins EF20 transformer bobbin. Bobbin Size=20.7mmX20.6mmX13.95mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.
High Frequency Horizontal EE19 3+3 Pin Coil Former
Double slots EE19 transformer bobbin. Horizontal 3+3 pin bobbin made of PBT material. Parallel distance=13mm. Dip bobbin. Bobbin Size=18.8mmX15mmX16.2mm. We can make bobbin tooling. UL REC: 94V-0
High Frequency ETD49 Ferrite Core Vertical Bobbin
ETD49 welding transformer bobbin. 11+11 pins vertical ETD49 bobbin. Bobbin Size=53.4mmX34.0mmX55.2mm. Pin distance=5.0mm. Parallel Distance=28.0mm. Lead free transformer bobbin. DIP bobbin.
