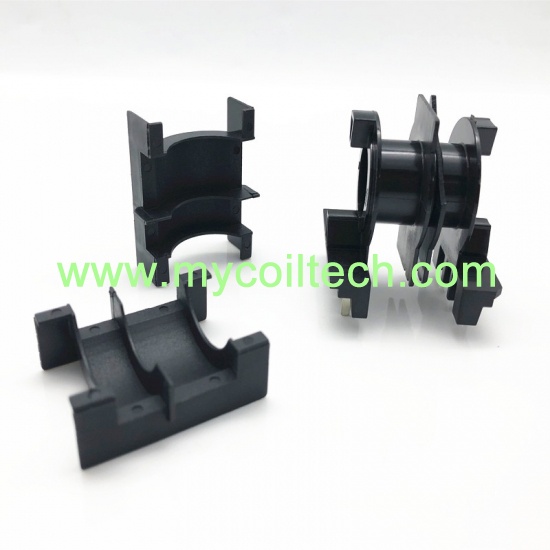

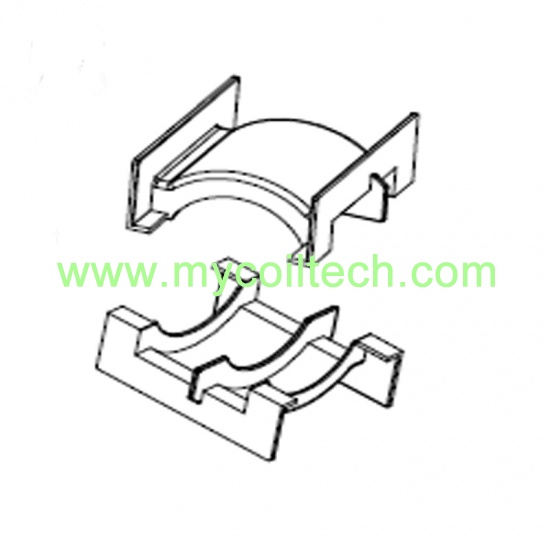

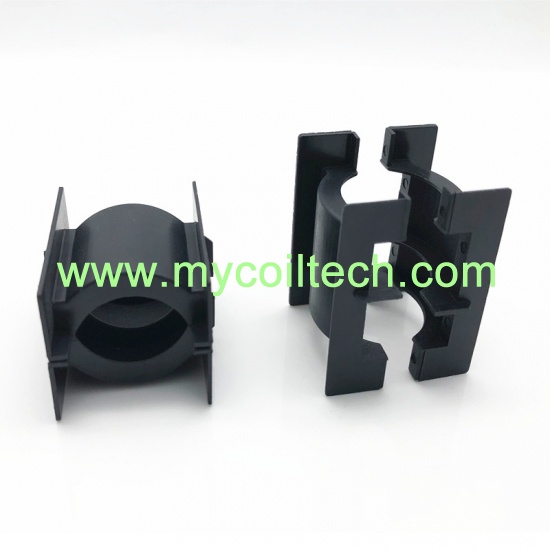

PQ35 Electronic Transformer Cover Made of PA66 Material

Vertical PQ32 coil bobbin. Single slot PQ32 bobbin 6+6pins. Bobbin Size=33.8mmX31.8mmX32.7mm. Pin pitch=5.0mm, parallel distance=22.8mm, we custom special bobbin tooling to meet size requirements, samples can be sent for testing.

PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.

PQ32 ferrite core bobbin, 6+6 pins PQ32 SMD bobbin. Coil former size=43.5mmX32.2mmX18.95mm, parallel distance=35.5mm, pin distance 1=7.5mm. pin distance 2=5.0mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.

PQ26 horizontal coil bobbin, 6+4 pins PQ26 through hole bobbin. Coil former size=29.8mmX26.4mmX27.5mm, parallel distance=26.3mm, pin distance =5.0mm, pin distance 2 =4.5mm. PQ26 electronic transformers are  used for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.

PQ26 ferrite core bobbin, 2+2 pins PQ26 vertical bobbin. Coil former size=22.0mmX14.0mmX22.0mm, parallel distance=18.0mm, pin distance=6.0mm. We can custom final transformers with specific parameters for different applications, such us UPS, charges, printers, etc.
