CUT Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: CUT Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/MP4/M5P /M7P/M10P |
Logo: Can be customized |
|
Core Type: Power core |
OEM: Available |
|
Features: High inductance, low loss core, small size |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: CUT Mn-Zn Ferrite Core for High Efficiency Sensor, Power Conversion Transformer
Product Features: High-frequency and low power loss, High Q value and high permeability, High saturation flux density, Suitable for producing transformers and chokes.
Product Applications: Switching Power Transformer,Carrier Filter, Reactors, Current transformer, High Efficiency Sensor, Power Conversion Transformer.
Advantages: We are professional factory, skilled at producing and designing electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores and other magnetic components Our Factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers. All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details

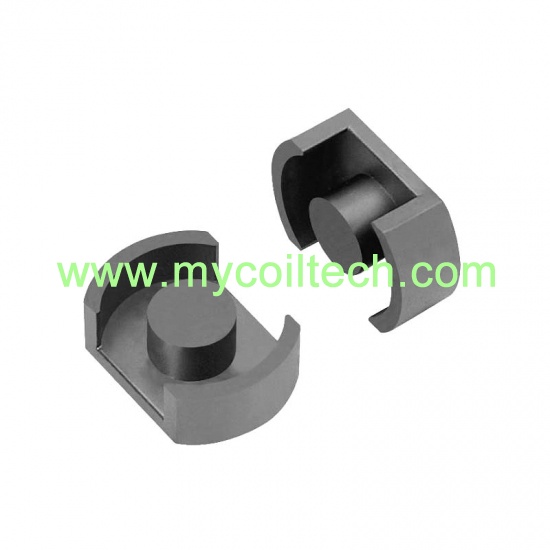

CUT Series Magnetic Core,Mn-Zn MP4 Soft Electronic Transformer Ferrite Core
|
TYPE |
Dimension:mm |
Weight:g |
|||||||
|
A |
B |
H1 |
H2 |
D |
D1 |
D2 |
D3 |
||
|
C14×8 |
9.55±0.15 |
7.6min |
4.18±0.08 |
2.7min |
14.0±0.25 |
11.6min |
5.99max |
3.1±0.07 |
2.8 |
|
C18×11 |
12.2-0.65 |
9.8 |
5.8-0.3 |
3.6+0.4 |
18.8-0.3 |
15.1+0.8 |
7.6-0.5 |
2.9+0.3 |
6.4 |
|
C22×13 |
15.2±0.25 |
10.5 |
7.0-0.3 |
4.6+0.4 |
22.4-0.12 |
18.1+1.0 |
9.4-0.5 |
4.3+0.4 |
12.0 |
|
C30×19 |
20.3±0.3 |
12.5 |
9.4±0.1 |
6.6±0.1 |
20.0±0.5 |
25.4±0.4 |
13.3±0.2 |
5.55±0.15 |
29.0 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
C14×8 |
0.91 |
23.2 |
21.2 |
492 |
2500 |
|
|
|
|
C18×11 |
0.67 |
40.6 |
27.2 |
1110 |
4800 |
|
|
|
|
C22×13 |
0.47 |
61.0 |
28.6 |
1740 |
4500 |
|
|
|
|
C30×19 |
0.347 |
128.1 |
44.4 |
5688 |
6000 |
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
Magnetic Ferrite Toroidal Cores for Transformers and Choke Coils
Magnetic ferrite toroidal cores for transformers, inductors,sensors, motors,rotors, wind generators, magnetic holder, filters automobiles. Low noise, low magnetizing current.
EE/EF/EEL Ferrite Cores for Electronic Transformers
EE/EF/EEL type ferrite core has wide range of uses, varieties, lead space, winding wiring convenient. Ferrite core materials: MP4, M5P, M7P, M10P
EF Ferrite Core, High Frequency Switching Power Transformer Soft Ferrite Core
EF Type Mnzn Transformer Ferrite Core has high frequency,low-loss.EF core materials:MP4,M5P,M7P,M10P.Mainly for swtching transformers,filter transformers,pulse transformers.
ED Series Ferrite Core for Switching Power Transformer
ED series ferrite core has high frequency and low-loss. Mainly for switching transformers, choke inductors, pulse transformers. ED power core materals: MP4/M5P /M7P/M10P
EDR Series High Frequency Soft Ferrite Core Used for Switching Power Output Transformer
EDR soft power ferrite core has high-frequency, low-loss. Mainly used in switching power output and smoothing circuits. Efficiency: more than 98% Certification: ISO9001,ROHS,CE.
