ED Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: ED Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/MP4/M5P /M7P/M10P |
Logo: Can be customized |
|
Type: Power core Phase: single |
OEM: Available |
|
Features: High inductance, low loss |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

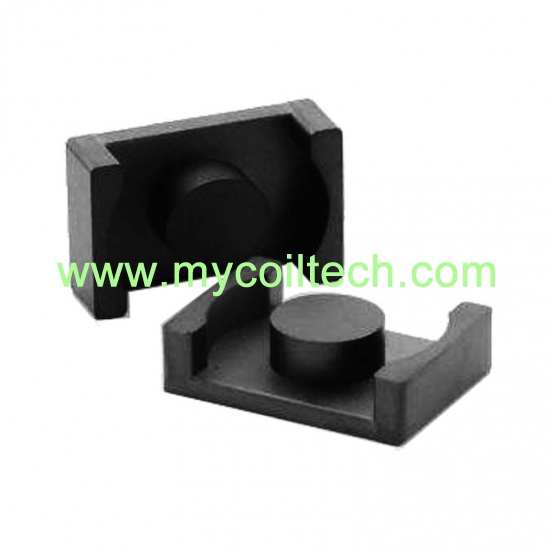

Product Name: ED Series Ferrite Core for Switching Power Transformer
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Switching Power Output Transformer. FBT pulse transformers, driving transformers. Choke inductor. DC/DC converters.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
|
|
|
ED28 |
28.0±0.5 |
20.4±0.3 |
11.9±0.2 |
20.5 |
8.5±0.2 |
13.3±0.25 |
23 |
|
ED29 |
29.3±0.5 |
29.2±0.3 |
11.6±0.2 |
21.6 |
8.4±0.2 |
22.0±0.25 |
29 |
|
ED33 |
33.3±0.5 |
21.4±0.3 |
11.6±0.2 |
25.6 |
8.4±0.2 |
14.2±0.25 |
25 |
|
ED42 |
42.0±0.5 |
44.0±0.4 |
13.5±0.3 |
29.0 |
13.5±0.3 |
30.0±0.4 |
85 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
ED28 |
0.59 |
86.1 |
50.5 |
4350 |
3600 |
|
|
|
|
ED29 |
0.84 |
83.1 |
69.5 |
5770 |
2900 |
|
|
|
|
ED33 |
0.69 |
84.4 |
57.9 |
4887 |
3000 |
|
|
|
|
ED42 |
0.578 |
165.0 |
95.4 |
15741 |
3700 |
|
|
|
