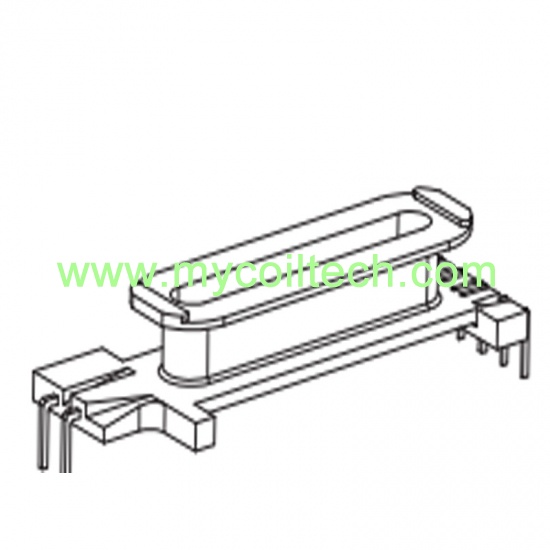

EDR28 5+2 pins transformer bobbin. Phenolic EDR28 transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=4mm. EDR28 LED transformer bobbin. Bobbin Size=42.5mmX15mmX7.4mm. DIP L pin /SMD bobbin. UL REC:94V-0
brand:
MCTitem no.:
MCT-2815(5+2P)shipping port:
ShanghaiChina professional transformer bobbin hot selling high frequency transformer bobbins, 2+5 pins EDR28 bobbin, if you have any request, welcome to contact us.
Quick Details
Part Number: MCT-2815(5+2P) |
Brand Name: MCT |
Material: Phenolic |
Color: Black |
UL REC: 94V-0 |
Logo: Can be customized |
Lead Time: 20 days after payment |
Custom Made: Available |
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EDR28 Ferrite Core Bobbin For High Frequency Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
5+3 pins EDR39 electronic transformer bobbin. UL REC:94V-0 EDR39 vertical LED transformer bobbin. Pin Pitch=3mm. Bobbin Size=53mmX15mmX6.3mm. DIP/SMD bobbin.
EDR20 bakelite transformer bobbin. 5+5 pins EDR bobbin. Phenolic EDR bobbin. Pin Pitch=2.5mm. LED transformer bobbin. Bobbin Size=17.6mmX17.6mmX5.1mm. DIP/SMD bobbin. UL REC:94V-0
5+4 pin EDR25 transformer bobbin. Phenolic EDR25 transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=6mm. EDR25 LED transformer bobbin. Bobbin Size=36.1mmX17.1mmX7.4mm. DIP/SMD bobbin. UL REC:94V-0
EDR28 L pin transformer bobbin. EDR28 phenolic transformer bobbin. Pin Pitch=3mm. EDR28 LED transformer bobbin. Bobbin Size=39.9mmX14.9mmX7.4mm. DIP L pin /SMD bobbin. UL REC:94V-0
4+5 pins EDR28 transformer bobbin. EDR28 phenolic transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=4mm. EDR28 LED transformer bobbin. Bobbin Size=40mmX15mmX6.9mm. DIP L pin /SMD bobbin. UL REC:94V-0
EDR28 coil former 5+2 pins. Phenolic EDR28 transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=4mm. EDR28 LED transformer bobbin. Bobbin Size=40mmX15mmX6.9mm. DIP L pin /SMD bobbin. UL REC:94V-0
EDR28 high frequency bobbin 5+4 pins. EDR28 phenolic transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=4mm. EDR28 LED transformer bobbin. Bobbin Size=40mmX15mmX6.9mm. DIP L pin /SMD bobbin. UL REC:94V-0
EDR28 LED transformer bobbin. EDR28 5+4 pin transformer bobbin. Pin Pitch1=3mm. Pin Pitch2=3.5mm. Bobbin Size=42.8mmX15mmX6.8mm. DIP L pin /SMD bobbin. UL REC:94V-0
5+3 pins EDR32 vertical bobbin, through hole EDR32 transformer bobbin. Bobbin Size=47.5mmX15.0mmX6.7mm. Pin pitch=3.0mm. Row distance=38.0mm. DER32 ferrite core transformer, power supply transformers mainly used in electrical components, UPS power supply, medical equipment, communication equipments, switching power supplies, welcome customzized electronic transformers.
