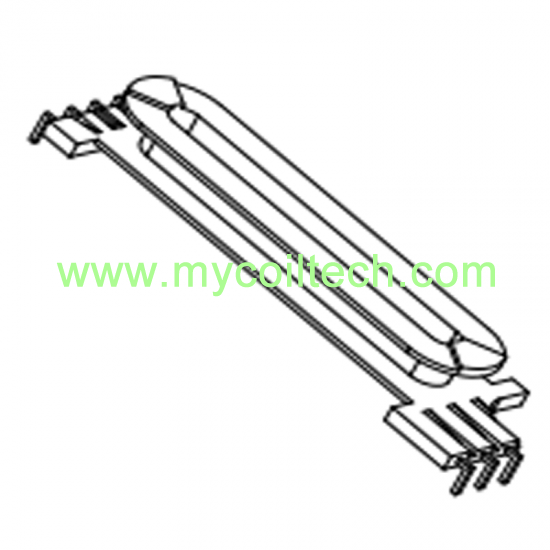

EDR39 Vertical Transformer Bobbin 5+3 Pins

EDR39 bobbin 5+3 pins, vertical EDR39 bobbin. Coil former size=50.5mmX15.0mmX6.4mm, parallel distance=53.0mm, pin distance =3.0mm. Our products apply to industrial automation, communication devices and military equipment. We offer customized power transformers with tailored parameters to meet specific needs.

product origin:
China
brand:
MCT
item no.:
MCT-EDR3903

contact now

product description

High demand EDR39 high frequency bobbin with 5+3 pins configuration. This vertical-mount bobbin is designed with through hole pins for reliable PCB integration and ensures optimal winding performance and structural stability for power transformers and inductive components.Our products can be used in industrial control panels, high-definition cameras, access control systems, sensor nodes, etc. Its advantages include low power consumption, high temperature resistance, and stable frequency.

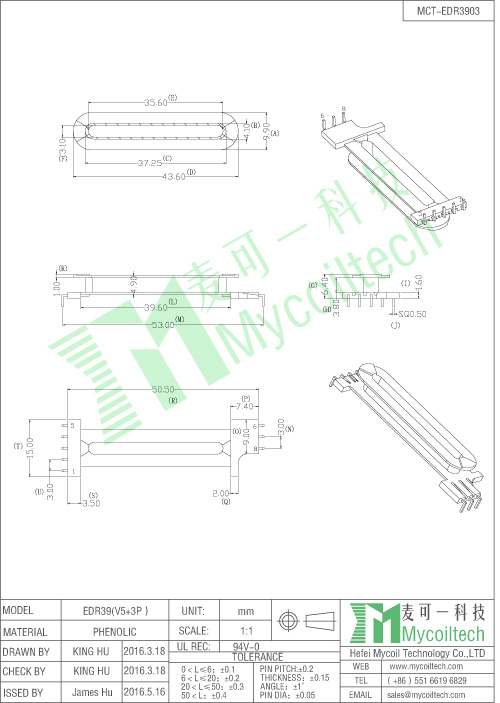

Production Specification

EDR39 main power transformer frame
