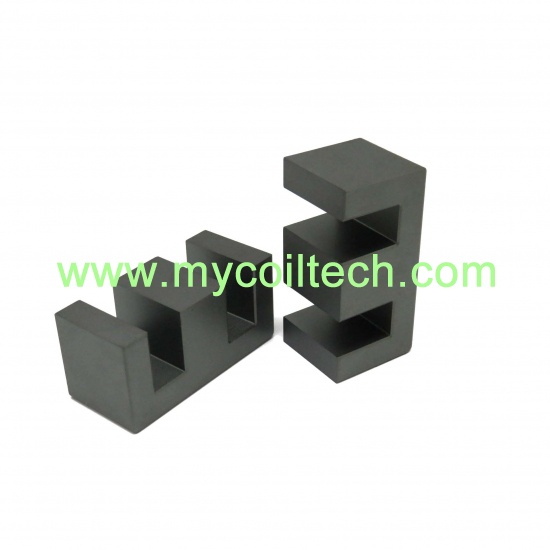

EE/EF/EEL type ferrite core has wide range of uses, varieties, lead space, winding wiring convenient. Ferrite core materials: MP4, M5P, M7P, M10P
brand:
MCTitem no.:
EEL/EE/EF Type Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: EEL/EE/EF Type Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/MP4/M5P /M7P/M10P |
Logo: Can be customized |
|
Core Type: Power core |
OEM: Available |
|
Features: High-frequency and low-loss ferrite cores |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: EE/EF/EEL Ferrite Cores for Electronic Transformers
Products Range: Electronic transformers, choke coils, bobbins, relays, magnetic cores.
Applications: High frequency switching power transformers. Matching transformer. Filter transformer. Pulse transformer.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
We have a technical team consist of 5 experienced engineers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
EE5.0 |
5.25±0.1 |
5.3±0.16 |
1.95±0.1 |
3.80 |
1.35±0.08 |
4±0.16 |
0.2 |
|
EE6.3 |
6.17±0.13 |
5.7±0.1 |
1.96±0.05 |
3.70±0.1 |
1.35±0.08 |
3.70±0.16 |
0.24 |
|
EE8.3 |
8.3±0.3 |
8.0±0.2 |
3.6±0.2 |
6.0 |
2.0-.3 |
6.0±0.2 |
0.7 |
|
EE8.8 |
9.0±0.3 |
8.0±0.2 |
2.0±0.1 |
5.20±0.13 |
1.90±0.12 |
4.2±0.15 |
0.5 |
|
EE10/11/4.75 |
10.2±0.3 |
11.0±0.2 |
4.75±0.25 |
7.7±0.2 |
2.45±0.2 |
8.4±0.3 |
1.5 |
|
EE12.6 |
12.6±0.3 |
11.3±0.2 |
4.85 |
9.2 |
2.4±0.2 |
8.1±0.3 |
2.0 |
|
EE13/12/6.15 |
13.0±0.25 |
12.0±0.25 |
6.15±0.13 |
10.0 |
2.75±0.13 |
9.2±0.25 |
2.7 |
|
EE16/14.3/4.8 |
16.0±0.3 |
14.3±0.3 |
4.8±0.2 |
11.7 |
4.0±0.2 |
10.4±0.2 |
3.3 |
|
EEL16/25/4.89 |
16.0±0.4 |
25.0±0.4 |
4.9±0.2 |
11.7 |
4.2-0.4 |
20.5±0.5 |
5.2 |
|
EE16/14.3/6.8 |
16.0±0.5 |
14.3±0.4 |
6.8±0.2 |
12.5 |
3.80±0.2 |
11.2±0.4 |
4.1 |
|
EE16/16/4.5 |
16.1±0.5 |
16.1±0.3 |
4.5±0.2 |
11.3 |
4.55±0.2 |
11.8±0.4 |
3.7 |
|
EE19/16/4.85 |
19.1±0.4 |
16.0±0.4 |
4.85±0.25 |
14.1 |
4.8±0.25 |
11.3±0.3 |
4.6 |
|
EEL19/27.3/4.85 |
19.0±0.3 |
27.3±0.4 |
4.85±0.25 |
14.1 |
4.8±0.25 |
22.8±0.6 |
7.2 |
|
EE20/20/5 |
20.0±0.6 |
20.0±0.4 |
5.3-0.4 |
12.8 |
5.2-0.4 |
12.6±0.8 |
8.0 |
|
EE22/19/6 |
22.0±0.4 |
18.7±0.4 |
6.0-0.6 |
13.20 |
6.0-0.6 |
10.7±0.3 |
8.8 |
|
EE25/19/6.3 |
25.4±0.5 |
19.0±0.4 |
6.3±0.3 |
18.55 |
6.4±0.2 |
13.8±0.4 |
9.1 |
|
EE25A |
25.4±0.6 |
20.0±0.4 |
6.35±0.3 |
18.7 |
6.4±0.3 |
13.5±0.4 |
10 |
|
EE25B |
25.4±0.5 |
34.0±0.6 |
6.35±0.25 |
18.7 |
6.4±0.25 |
27.6±0.6 |
16.5 |
|
EE25C |
25.4±0.5 |
31.8±1.0 |
6.35±0.25 |
19.05 |
6.4±0.25 |
25.4±0.6 |
15 |
|
EE28/21/10.6 |
28.0±0.6 |
21.0±0.6 |
10.6±0.3 |
18.6 |
7.2±0.30 |
12.6±0.6 |
21.5 |
|
EE28A |
28.0±0.4 |
28.4±1.0 |
11.0-0.60 |
18.6 |
7.5-0.5 |
19.4±0.4 |
28 |
|
EE28B |
28.0±0.5 |
34.5±0.6 |
11.0-0.5 |
18.6 |
7.5-0.5 |
25.6±0.4 |
32 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
EE5 |
4.78 |
2.66 |
12.5 |
33.5 |
285 |
|
|
|
|
EE6.3 |
3.67 |
3.30 |
12.2 |
40.60 |
405 |
|
|
|
|
EE8.3 |
2.75 |
7.00 |
19.2 |
134.0 |
675 |
|
|
|
|
EE8.8 |
3.10 |
5.00 |
15.60 |
78.00 |
400 |
|
|
|
|
EE10 |
2.16 |
12.1 |
26.1 |
315 |
905 |
|
|
|
|
EE12.6 |
2.39 |
12.4 |
29.7 |
369.5 |
960 |
|
|
|
|
EE13 |
1.77 |
17.1 |
30.2 |
517 |
1200 |
|
|
|
|
EE16 |
1.87 |
20.1 |
34.6 |
656 |
1160 |
|
|
|
|
EEL16 |
2.792 |
19.8 |
55.3 |
1090 |
900 |
|
|
|
|
EE16H |
1.83 |
19.5 |
35.7 |
695.15 |
1240 |
|
|
|
|
EE16G |
1.93 |
19.5 |
37.7 |
737 |
1100 |
|
|
|
|
EE19 |
1.74 |
22.8 |
39.6 |
903 |
1250 |
|
|
|
|
EEL19 |
2.64 |
23.4 |
61.70 |
1443 |
900 |
|
|
|
|
EE20 |
1.37 |
31.2 |
42.8 |
1340 |
1500 |
|
|
|
|
EE22 |
0.97 |
41.0 |
39.6 |
1610 |
2100 |
|
|
|
|
EE25 |
1.22 |
40.0 |
48.7 |
1940 |
2000 |
|
|
|
|
EE25A |
1.20 |
41.8 |
50.0 |
2090 |
1900 |
|
|
|
|
EE25B |
1.91 |
40.3 |
77.0 |
3100 |
2500 |
|
|
|
|
EE25C |
1.82 |
40.4 |
73.4 |
2965 |
1450 |
|
|
|
|
EE28 |
0.57 |
85.4 |
49.3 |
4260 |
3500 |
|
|
|
|
EE28A |
0.75 |
8.6 |
64.3 |
5530 |
3500 |
|
|
|
|
EE28B |
0.84 |
86.3 |
73.4 |
6343 |
3060 |
|
|
|
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
EE30/7 |
30.1±0.7 |
30.0±0.4 |
7.3-05 |
19.5 |
7.2-0.5 |
19.9±0.25 |
21 |
|
EE30/11 |
30.0±0.5 |
30.0±0.4 |
10.7±0.3 |
19.5 |
7.2-0.5 |
19.9±0.25 |
32 |
|
EE33 |
33.1±0.5 |
28.0±0.6 |
12.7±0.3 |
23.5 |
9.7±0.3 |
19.3±0.3 |
39 |
|
EE35 |
34.6±0.5 |
28.5±0.5 |
9.3±0.35 |
25.5 |
9.35±0.3 |
19.6±0.25 |
30 |
|
EE40 |
40.0±0.5 |
34.0±0.6 |
10.70±0.3 |
27.6 |
10.70±0.3 |
10.25±0.25 |
50 |
|
EE41 |
41.0±0.5 |
33.0±0.4 |
12.5±0.3 |
28.6 |
12.5±0.3 |
21.0±0.3 |
63 |
|
EE4212 |
43.0-2.4 |
42.4±0.4 |
12.0-0.5 |
29.5 |
12.2-0.5 |
30.0+0.8 |
70 |
|
EE4215 |
43.0-2.4 |
42.4±0.4 |
15.2-0.5 |
29.5 |
12.2-0.5 |
30.0+0.8 |
88 |
|
EE4220 |
43.0-2.4 |
42.4±0.4 |
20.0-0.8 |
29.5 |
12.2-0.5 |
30.0+0.8 |
116 |
|
EE47 |
47.12±0.76 |
39.26±0.4 |
15.62±0.25 |
31.82 |
15.62±0.25 |
24.4±0.4 |
106 |
|
EE4815 |
50.0-2.6 |
42.0 |
15-1.1 |
33.0 |
15.0-1.1 |
24.6+2.0 |
110 |
|
EE50 |
50.0±0.7 |
42.6±0.5 |
14.6±0.4 |
34.2 |
14.6±0.4 |
26.5±0.6 |
116 |
|
EE55A |
55.15±1.0 |
55.0±0.5 |
20.7±0.3 |
37.5 |
16.95±0.3 |
37.5±0.5 |
221 |
|
EE55B |
55.15±1.0 |
55.0±0.5 |
24.7±0.3 |
37.5 |
16.95±0.3 |
37.5±0.5 |
265 |
|
EE56 |
56.6±0.7 |
47.3±0.5 |
18.8±0.3 |
38.1 |
18.8±0.25 |
29.3±0.6 |
180 |
|
EE65A |
65.0±1.2 |
65.5-0.8 |
19.8±0.7 |
44.20 |
20.0-0.7 |
44.4+1.6 |
300 |
|
EE65B |
65.0±1.2 |
65.5-0.8 |
27.4-1.0 |
44.20 |
20.0-0.7 |
44.4+1.6 |
390 |
|
EE70 |
70.5±1.0 |
65.5±0.5 |
31.6±0.2 |
48.0 |
21.65+0.8 |
44.5±0.4 |
540 |
|
EE80 |
80.0±0.8 |
75.9±0.5 |
20.2±0.4 |
60.0 |
20.0±0.4 |
56.0±0.4 |
360 |
|
EE85A |
85.0±2.5 |
88.0±2.0 |
26.5±0.6 |
55.0 |
27.2-0.6 |
57.4+2.0 |
675 |
|
EE85B |
85.0±2.5 |
88.0±2.0 |
31.5±0.5 |
55.0 |
27.2-0.6 |
57.4+2.0 |
810 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
EE30/7 |
1.12 |
59.7 |
66.9 |
4000 |
2100 |
|
|
|
|
EE30/11 |
0.86 |
110 |
57.8 |
6358 |
2800 |
|
|
|
|
EE33 |
0.57 |
117 |
67.0 |
7839 |
4300 |
|
|
|
|
EE35 |
0.893 |
77.7 |
69.5 |
5400 |
2400 |
|
|
|
|
EE40 |
0.60 |
127 |
77.0 |
9810 |
4350 |
|
|
|
|
EE41 |
0.523 |
157.8 |
79.5 |
12477 |
4100 |
|
|
|
|
EE4212 |
0.70 |
143.0 |
97.8 |
13980 |
2800 |
|
|
|
|
EE4215 |
0.55 |
178.0 |
97.0 |
17266 |
3400 |
|
|
|
|
EE4220 |
0.416 |
235.0 |
97.8 |
23000 |
5000 |
|
|
|
|
EE47 |
0.38 |
234.0 |
89.2 |
20920 |
5500 |
|
|
|
|
EE4815 |
0.36 |
254.3 |
91.0 |
23141 |
3500 |
|
|
|
|
EE50 |
0.36 |
228.0 |
95.9 |
21865 |
6100 |
|
|
|
|
EE55A |
0.35 |
355.0 |
123.0 |
43665 |
6800 |
|
|
|
|
EE55B |
0.239 |
420.0 |
123.0 |
52000 |
8200 |
|
|
|
|
EE56 |
0.31 |
343.0 |
107.0 |
36710 |
6900 |
|
|
|
|
EE65A |
0.378 |
386.0 |
146.0 |
56375 |
5800 |
|
|
|
|
EE65B |
0.28 |
532.0 |
147.0 |
78204 |
8600 |
|
|
|
|
EE70 |
0.22 |
686.0 |
150.0 |
102900 |
10800 |
|
|
|
|
EE80 |
0.45 |
399.0 |
183.5 |
73216.5 |
6100 |
|
|
|
|
EE85A |
0.264 |
714.0 |
188.0 |
134232 |
8200 |
|
|
|
|
EE85B |
0.22 |
859.0 |
189.0 |
162351 |
10000 |
|
|
|
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
EE90 |
90.0±2.0 |
56.4±0.7 |
16.5±0.5 |
64.0 |
25.0±1.0 |
31.4-2 |
292 |
|
EE110 |
110.0±2.5 |
112.0-0.2 |
36.0±1.0 |
74.2 |
36.0±1.0 |
74.4+2.4 |
1560 |
|
EE118 |
118 |
173.0+1.5 |
35.0±0.8 |
82.0 |
35.0±0.5 |
138.0±1.0 |
2290 |
|
EE128 |
130.0±2.0 |
126.0±1.0 |
40.0±0.5 |
89.0 |
40.0±1.5 |
86.0 |
2200 |
|
EE160 |
162.0±7.5 |
166.0±1.0 |
40.0±1.0 |
120.0 |
40.0±1.5 |
128.0±1.0 |
3200 |
|
EE185 |
185.0±3.0 |
154.0±1.5 |
27.5±1.0 |
128.0 |
53.0±1.0 |
100±1.5 |
2800 |
|
EE240 |
240.0±4.0 |
232±1.0 |
40.0 |
176.0 |
60.0 |
172.0 |
6860 |
|
EE320 |
320.0±5.0 |
250±1.0 |
20.0±1.5 |
217.0 |
100.0±2.0 |
150±1.5 |
5950 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
EE90 |
0.34 |
419.0 |
141.0 |
59079 |
5760 |
|
|
|
|
EE110 |
0.19 |
1280 |
244.0 |
312320 |
9000 |
|
|
|
|
EE118 |
0.328 |
1240 |
407.0 |
505000 |
7000 |
|
|
|
|
EE128 |
0.35 |
1600 |
284.0 |
454400 |
12000 |
|
|
|
|
EE160 |
0.5 |
1600 |
398 |
636800 |
9000 |
|
|
|
|
EE185 |
0.24 |
1488 |
370 |
55056 |
12000 |
|
|
|
|
EE240 |
0.227 |
2530 |
576 |
1456908 |
9325 |
|
|
|
|
EE320 |
0.29 |
2000 |
577 |
1154000 |
8000 |
|
|
|
For more details. welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Magnetic Ferrite Toroidal Cores for Transformers and Choke Coils
Magnetic ferrite toroidal cores for transformers, inductors,sensors, motors,rotors, wind generators, magnetic holder, filters automobiles. Low noise, low magnetizing current.
EF Ferrite Core, High Frequency Switching Power Transformer Soft Ferrite Core
EF Type Mnzn Transformer Ferrite Core has high frequency,low-loss.EF core materials:MP4,M5P,M7P,M10P.Mainly for swtching transformers,filter transformers,pulse transformers.
CUT Mn-Zn Ferrite Core for High Efficiency Sensor, Power Conversion Transformer
CUT series transformer ferrite core has small size, high inductance, easy winding, high inductance per unit space, magnetic shielding and cooling effect of a balanced.
ED Series Ferrite Core for Switching Power Transformer
ED series ferrite core has high frequency and low-loss. Mainly for switching transformers, choke inductors, pulse transformers. ED power core materals: MP4/M5P /M7P/M10P
EDR Series High Frequency Soft Ferrite Core Used for Switching Power Output Transformer
EDR soft power ferrite core has high-frequency, low-loss. Mainly used in switching power output and smoothing circuits. Efficiency: more than 98% Certification: ISO9001,ROHS,CE.
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
please read on, stay posted, subscribe, and we welcome you to tell us what you think.
2025 Hefei Mycoil Technology Co.,Ltd..All rights reserved
皖公网安备 34019002600405号
+86(0)55166196829
sales@mycoiltech.com
Lily~Mycoiltech
