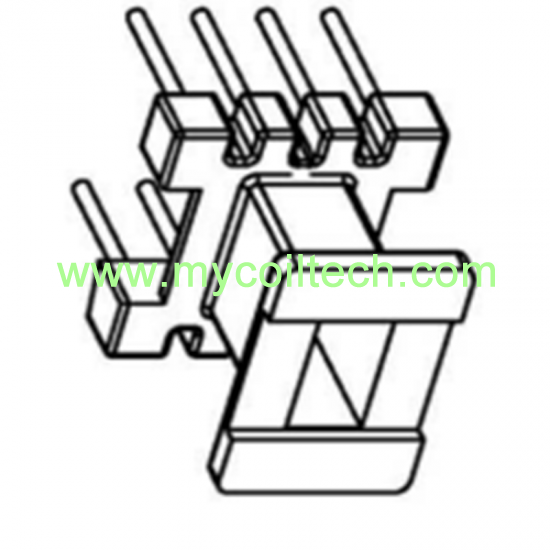

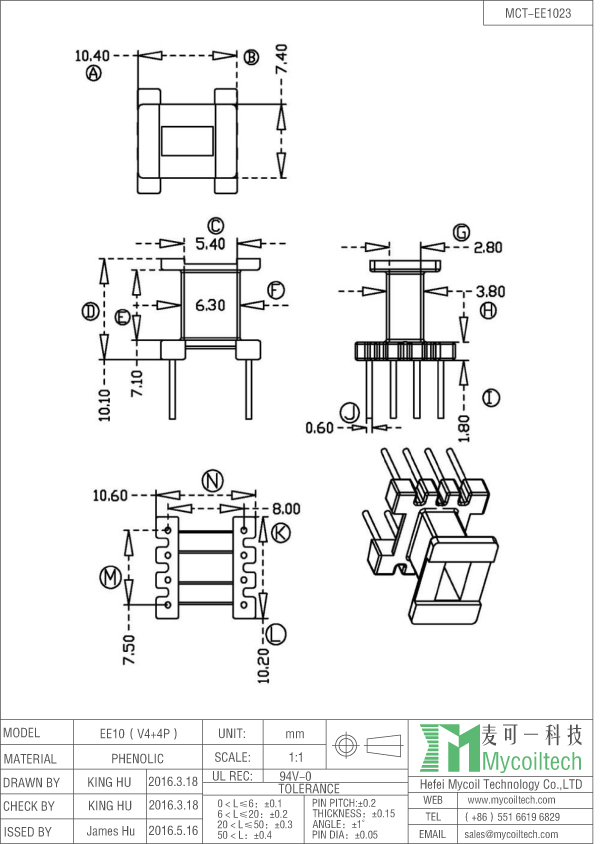

EE10 bobbin 4+4 pins, vertical EE10 bobbin. Coil former size=10.4mmX10.1mmX10.6mm, parallel distance=8mm, pin distance 1=2.5mm. pin distance 2=2.52mm. Our products apply to industrial automation, communication devices and military equipment. We offer customized power transformers with tailored parameters to meet specific needs.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE1023High-demand EE10 high frequency bobbin with 4+4 pins configuration. This vertical-mount bobbin is designed with through-hole pins for reliable PCB integration and ensures optimal winding performance and structural stability for power transformers and inductive components.
Production Specification
