6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Parallel Distance=15.6mm
Size=18.2mmX16mmX11.7mm
brand:
MCTitem no.:

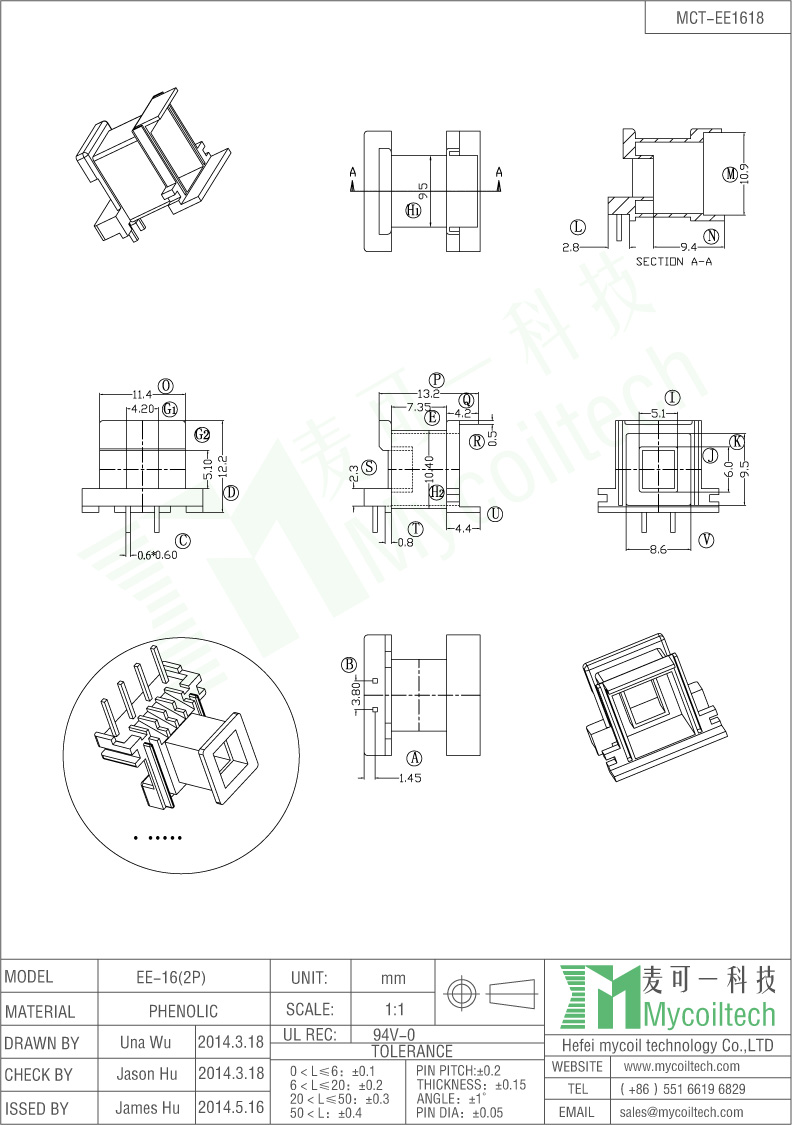

MCT-EE1618（2P）MOQ:
1shipping port:
ShangHaiEE16 transformer bobbin,horizontal Bobbin ,Dip material ,we located in HeFei where is near to ShangHai ,best lead time is available.
Quick Details
|
Place of Origin:Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material:Phenolic |
|
Part Number: MCT-EE1618（2P） |
|
Brand Name: MCT |
|
Color: black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name:EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE13 Transformer Bobbin For PCB Mounting Transformer Phenolic Material
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=8.5mm, Parallel Distance=10mm Size=12.5mmX14mmX14.6mm
