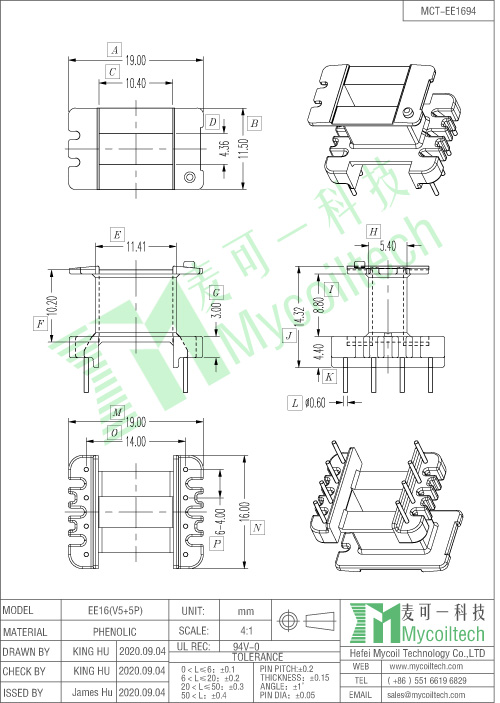

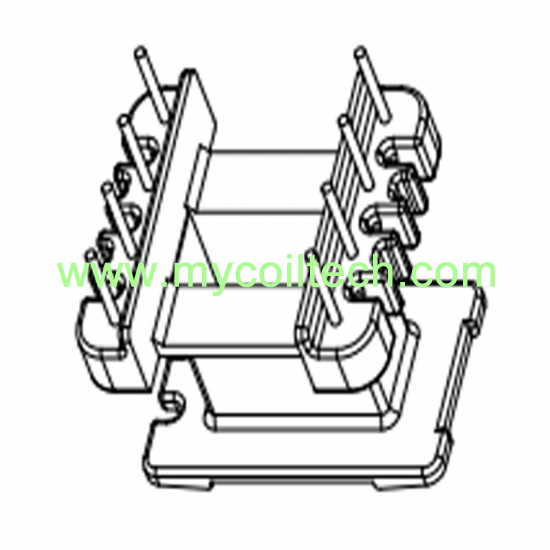

Vertical EE16 bobbin. EE16 bobbin 5+5 pins, coil former size=19.00mmX11.50mmX16.00mm, parallel distance=14.00mm, pin distance =4.00mm. We provide customized services, including matching ferrite cores, transformer bobbins, covers, bases, etc. If you cannot find a suitable product size, we have professional engineers who can customize a suitable product for you.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE1694MOQ:
5000Hot selling product, EE16 bobbin power transformer with 5+5 pins.We have an experienced professional technical team that can customize finished transformers to meet customer prototype design needs. If you have any technical questions, please feel free to communicate with us at any time.
Production Specification
We strive for excellence in every product, including competitive price, fast delivery, perfect after-sales service, high quality inspection, and small quantity trial production is welcome.
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
