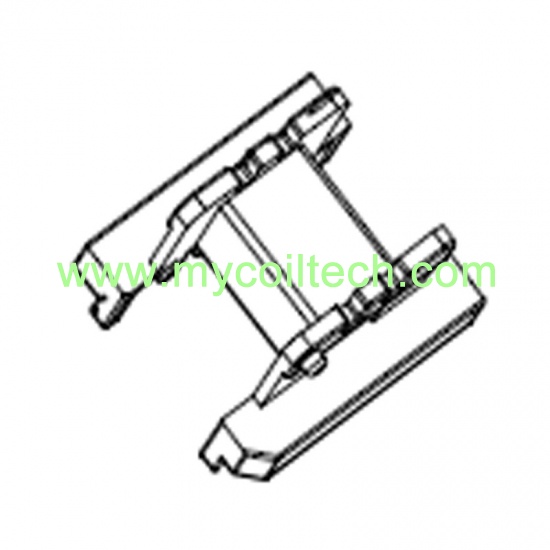

EE19 horizontal type transformer bobbin. EE19 transformer bobbin 10 pin. Phenolic material bobbin. Pin Pitch=3mm, Parallel Distance=11.2mm. DIP bobbin. Bobbin Size=19.2mmX17.8mmX13.9mm. UL REC:94V-0.
brand:
MCTitem no.:
MCT-EE1926(H5+5P)shipping port:
ShangHaiGood quality and competitive price EE19 5+5 pin transformer bobbin, horizontal type single slot bobbin. If you need customized dimensions, we also can design for you.
Quick Details
|
Part Number: MCT-EE1926(H5+5P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE19 High Frequency Horizontal Bobbin Single Slot Pin 5+5 Bobbin
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Applications: switching power supply transformers, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
