EE19 high frequency bobbin. 6+4 pin EE19 horizontal bobbin two slots. Bobbin Size=18.5mmX15.0mmX17.8mm. Parallel Distance=12.5mm. Pin pitch1=3.5mm.Pin pitch2=2.7mm. We are transformer bobbin factory, we produce and make different bobbin toolings, we also manufacture final high frequency transformers for power supply.
brand:
MCTitem no.:
MCT-EE1947payment:
T/T in advance;PayPalHot selling EE19 double slots coil former, 6+4 pin horizontal type transformer bobbin, samples can be sent for testing.

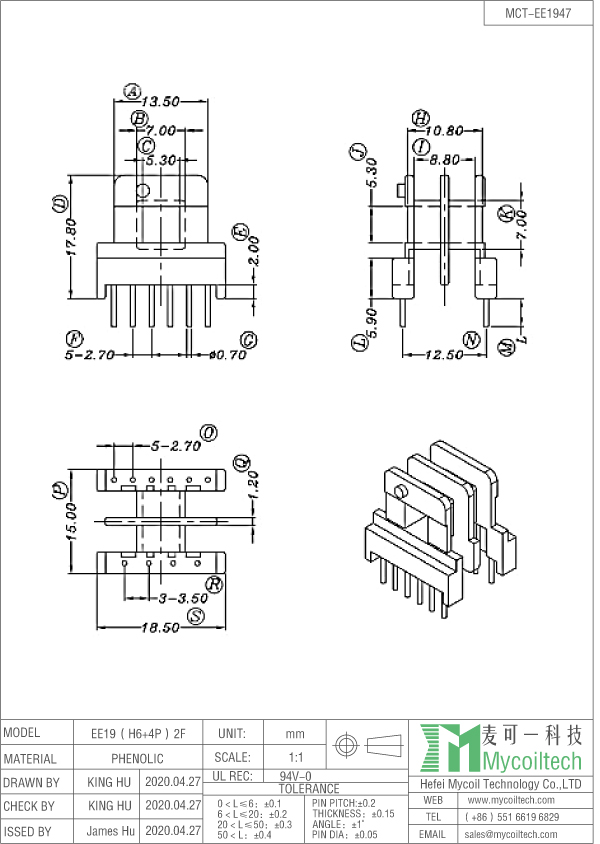

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
