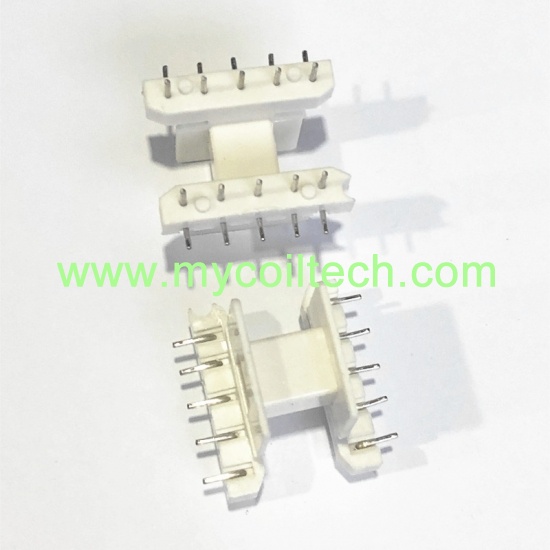

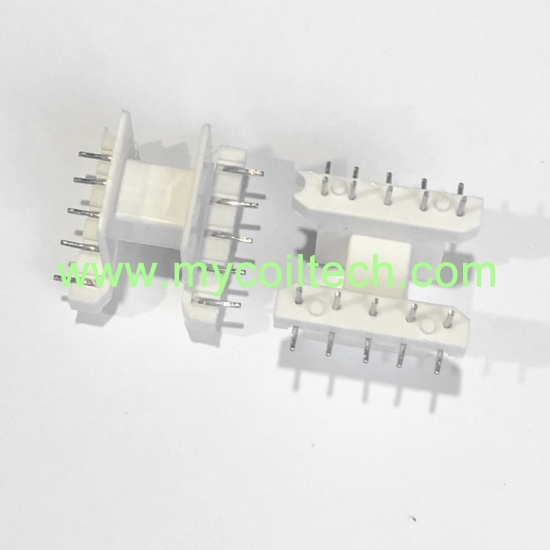

Horizontal EE25 bobbin 5+5 pin. Single slot EE25 transformer bobbin. EE25 PET transformer bobbin. Parallel Distance=15.2mm. Pin Pitch=5mm. Size=25.7mmX19.1mmX21.7mm. DIP transformer bobbin. UL REC:94V-0.
brand:
MCTitem no.:
MCT-EE2513shipping port:
ShangHaipayment:
T/T in advance; PayPalWe are professional transformer bobbin factory in China mainland, we make bobbin tooling to meet different dimensions, EE25 horizontal bobbin 5+5 pin, sample is available.
Quick Details
|
Part Number: MCT-EE2513 |
Brand Name: MCT |
|
Material: PET |
Color: White |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE25 Horizontal 5+5 Pin Single Slot Transformer Bobbin
Applications: switching power supply transformers, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Product Specification
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
