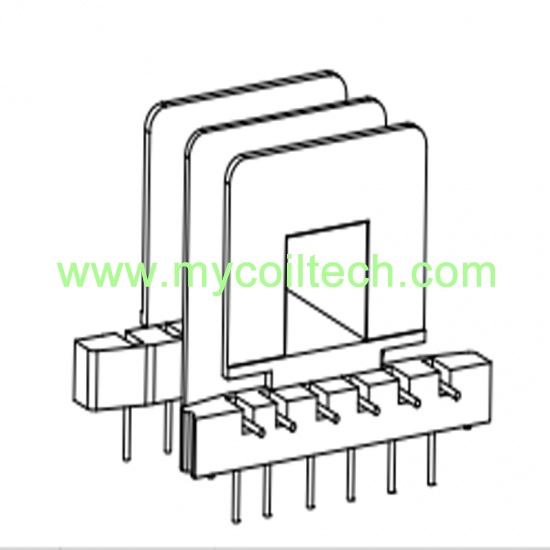

EE35 horizontal power transmission transformer bobbin 6+6 pins. Coil former size=37.20mmX26.40mmX25.40mm, parallel distance=22.10mm, pin distance 1=3.80mm, pin distance 2 =5.10mm. The ee transformer bobbin can be used for various types of switching power supplies, such as computer power supplies, chargers, etc. It can convert the input DC voltage into different levels of DC voltage, providing stable power supply for the load.If you cannot find a suitable product size, we have professional engineers who can customize a suitable product for you.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE3502-3MOQ:
5000EE35 Servomotor transformer frame 6+6 Pins，it can be used for DC-DC isolated power supply (such as 24V to 5V) of PLC control module. Its low leakage design (≤ 5 μ H) can reduce energy loss of LLC resonant circuit. Wide temperature range of - 40 ° C to+125 ° C in environmental monitoring equipment to ensure stable operation in extreme industrial environments.

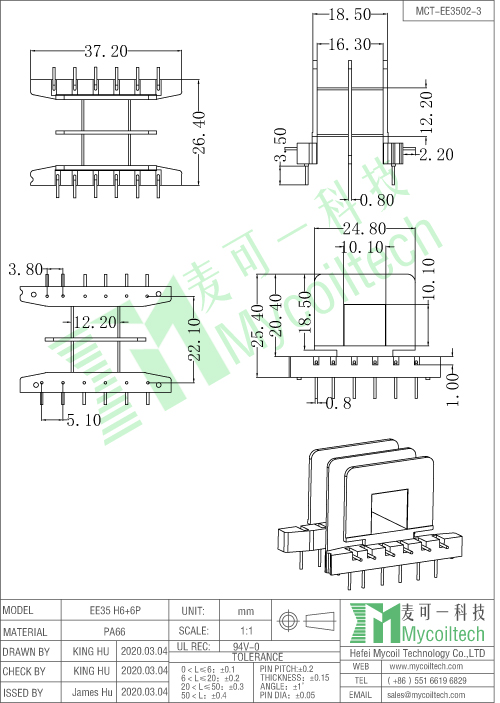

Production Specification
Contact us today to explore bulk orders or request technical specifications.
Email: sales008@mycoiltech.com
Tel: +86 55166196829
