EEL22 Switching Power Transformer Vertical Bobbin

2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=19.25mmX9.9mmX7.25mm

2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=17.45mmX9.9mmX7.25mm

3+2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=4.0mm, Pin pitch2=2.8mm Parallel Distance1=10.65mm

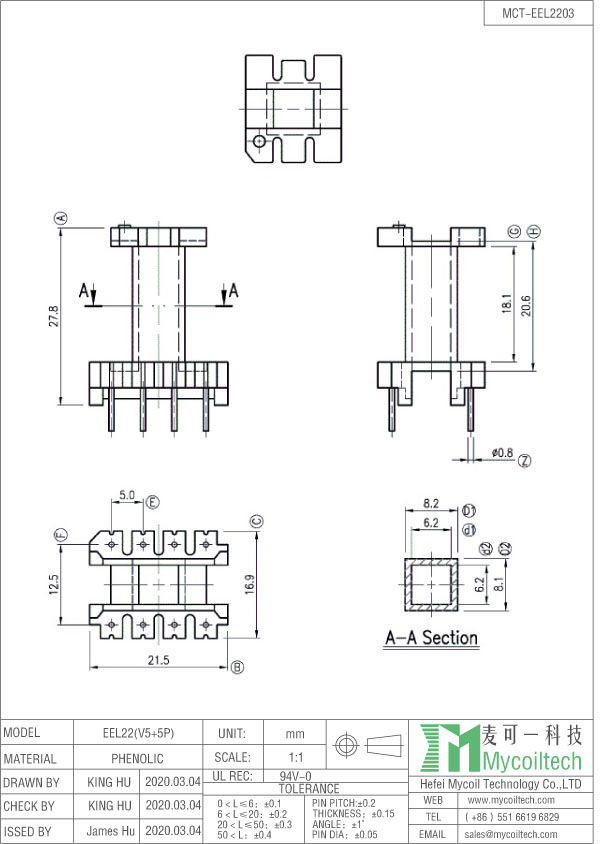

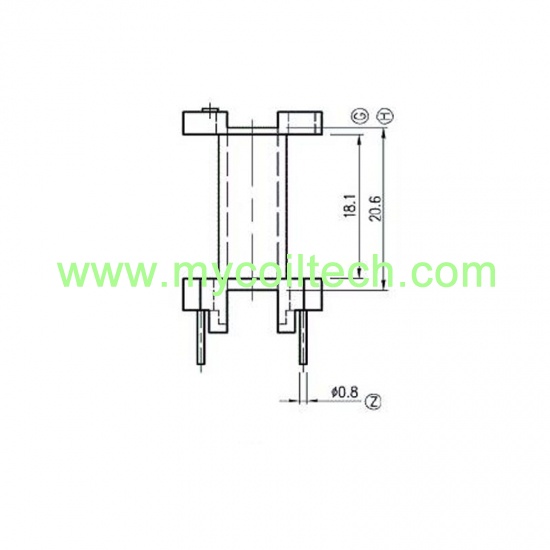

EEL22 vertical coil former, 5+5 pin EEL22 transformer bobbin. Bobbin size=21.5mmX16.9mmX27.8mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment., welcome customized EEL22 electronic transformer.

Vertical transformer EEL22 bobbin, EEL22 coil former 5+5 pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch1=3.75mm. Pin pitch2=4.75mm. Parallel Distance=15.0mm. EEL22 transformers for communication power supply,SMPS, UPS power supply and other electronic equipment, we can custom EEL22 electronic transformer for prototype testing.

5+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=3.2mm, Pin pitch2=4.5mm Parallel Distance=22.5mm

EEL22 switcing transformer. Vertical 5+5 pin EEL22 bobbin. Bobbin size=22.1mmX16.0mmX30.0mm. Pin pitch=4.0mm. Parallel Distance=15.0mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment.

5+7 pins EEL19 electronic transformer bobbin. Horizontal type DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. We can make bobbin tooling. Bobbin Size=30mmX27.8mmX15.6mm. UL REC:94V-0

12 pin EEL19 horizontal transformer bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parallel distance=24.2mm. We can make bobbin tooling. Bobbin Size=30mmX27.8mmX15.6mm.

5+5 pin EEL19 horizontal transformer bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parallel distance=24.2mm. We can make bobbin tooling. Bobbin Size=30mmX21mmX15.6mm.

EEL19 electronic transformer bobbin. 5+7 pin horizontal EEL bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parellel distance=25.5mm. We can make bobbin tooling. Bobbin Size=30mmX25.6mmX15.5mm. UL REC:94V-0

High quality EEL19 plastic coil bobbin. Horizontal EEL19 transformer bobbin. 5+7 pin EEL19 bobbin. Pin pitch=3.5mm. We can make bobbin tooling. Parallel distance=25mm. Bobbin EEL19 Size=30mmX28mmX15.5mm.
