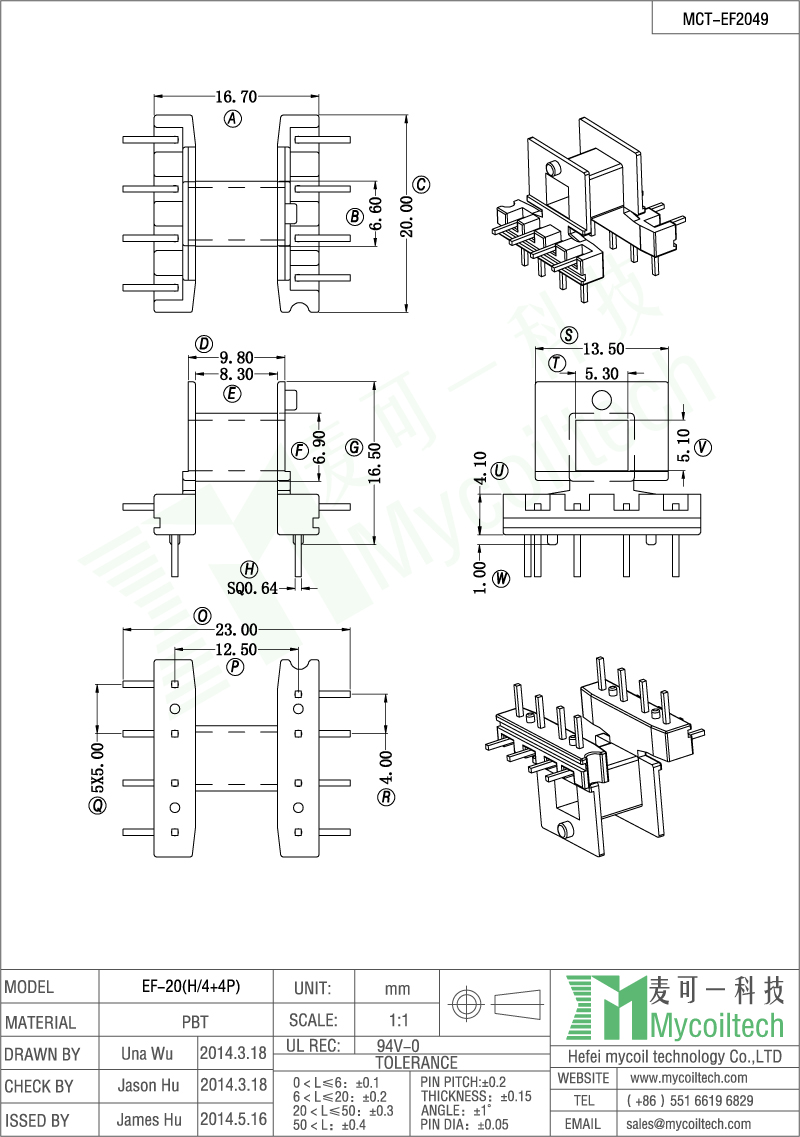

EF20 transformer manufacturer. Horizontal EF20 4-4 pin bobbin. Bobbin Size=23.0mmX20.0mmX16.5mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. EF20 transformer DIP bobbin. PBT material transformer bobbin.
brand:
MCTitem no.:
MCT-EF2049MOQ:
1shipping port:
Shanghai2018 popular electronic transformer PBT bobbin, high quality EF20 4+4 pin horizontal bobbin, fast delivery time, samples can be sent in 5 days, if you are interested in out parts, welcome to contact us.
Quick Details
|
Part No: MCT-EF2049 |
Brand Name: MCT |
|
Material: PBT |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EF20 Bobbin For High Voltage Transformer Pin 4-4 Horizontal
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
EF20 Switching Power Supply Transformer Frame 5+7 Pins
EF20 high frequency bobbin, 5+7 pins EF20 horizontal bobbin. Coil former size=27.5mmX24.8mmX18.0mm, parallel distance=20.32mm, pin pitch/distance 1 =2.5mm. Pin pitch/distance 2＝5.08mm. This is our latest best selling product that supports small batch customization. We can also custom transformer related products.
EF20 5+5 Pins Vertical Bobbin for Electronic Transformer
EF20 household appliance transformer bobbin is a very popular product in our factory, 5+5 pins EF20 vertical coil former. Bobbin size=22mmX13.8X23.4mm. We accept custom orders for high frequency transformers, inductors, current transformers, etc.
