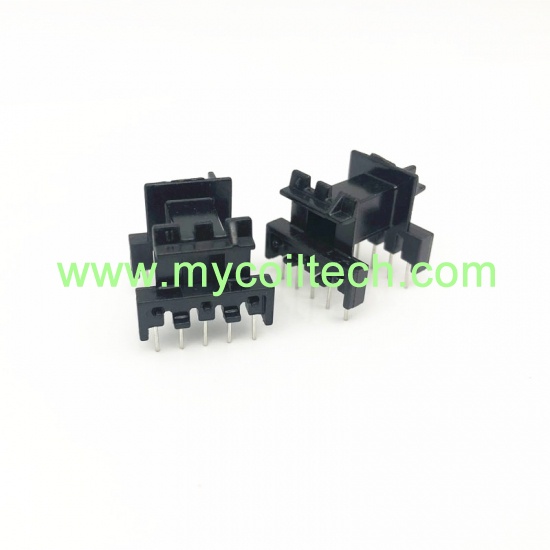

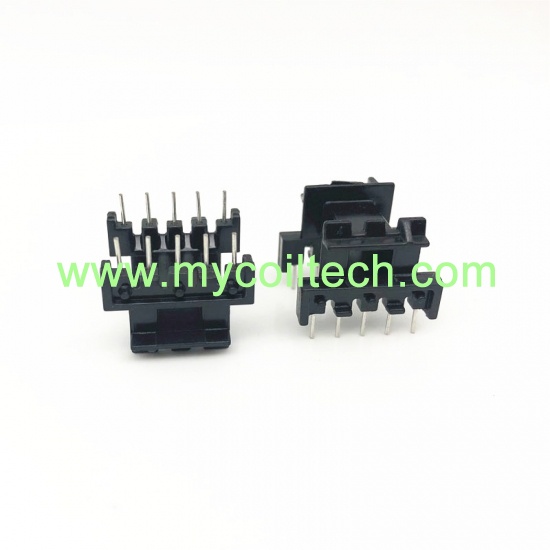

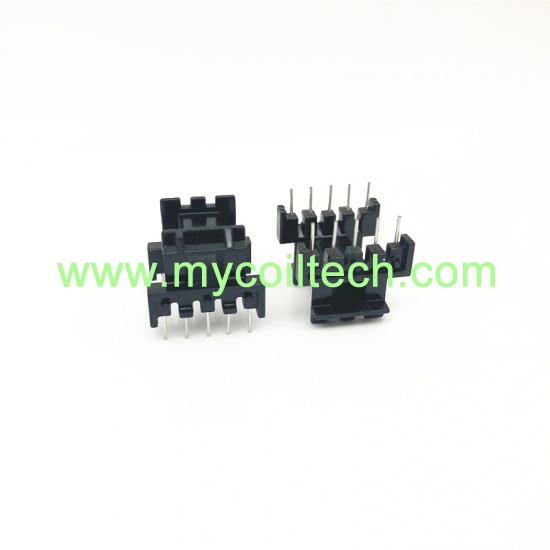

EF20 two slots transformer bobbin. 4+4 pin horizontal EF20 coil former. Bobbin Size=20.8mmX20.7mmX14.5mm. Pin pitch=5.0mm, Parallel distance=15.0mm. China EF20 bobbin factory. We have various size bobbin tooling. We manufacture final transformer for customer.
brand:
MCTitem no.:
MCT-EF2002-4shipping port:
ShangHaipayment:
T/T in advance; PayPalEF20 coil bobbin 4+4 pin, good quality and competitive price, supply matched ferrite cores.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
2+2 Pins EF12 Phenolic Bobbin
4+4 Pins Horizontal Bobbin. Pin Pitch=6mm. Parallel Distance=12mm. Bobbin Size=14.5mmX11.8mmX9mm. Phenolic Matereial bobbin. UL REC:94V-0.
3+3 Pins EF12 Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
3+3 Pins EF12 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
5+5 Pins EF 12 Horizontal Transformer Bobbin
5+5 Pins Horizontal Bobbin, Phenolic Matereial,UL REC:94V-0 Pin Pitch=2.5mm Parallel=10mm Size=14.3mmX13.5mmX10.3mm
EF20 Transformer Bobbin Ferrite Core Bobbin 3+3 Pins
3+3 pin transformer bobbin EF20. Horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.
EF12 Double Slots Bobbin for FlyBack Transformer
Power transformer EF12 bobbin. 5+5 pin two slots EF12 coil bobbin. Bobbin Size=15.0mmX13.4mmX10.3mm. Parallel distance=10.2mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement.
4+4 Pins EF16 Horizontal Transformer Bobbin For High Frequency Transformer
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=15mmX13mmX14.8mm
EF12.6 Transformer Bobbin 5+5 Pins Double Slots
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10.2mm Size=15.2mmX13.3mmX10.3mm
EF12.6 Transformer Bobbin 3+3 Pins Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=7.6mm Size=14mmX10mmX15.65mm
