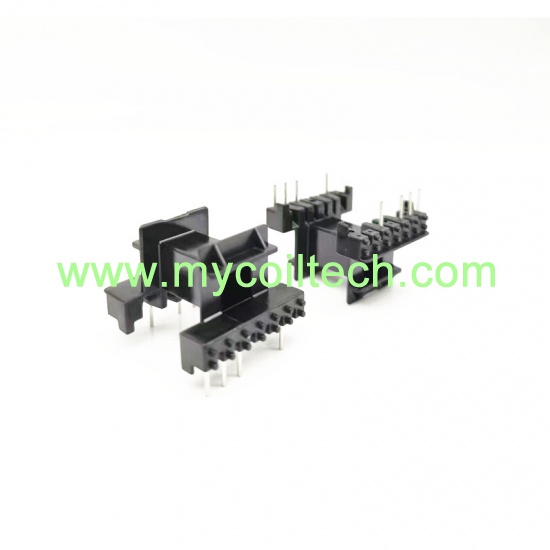

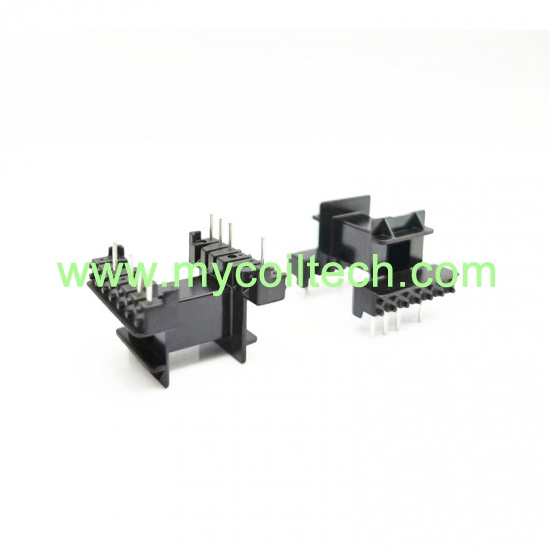

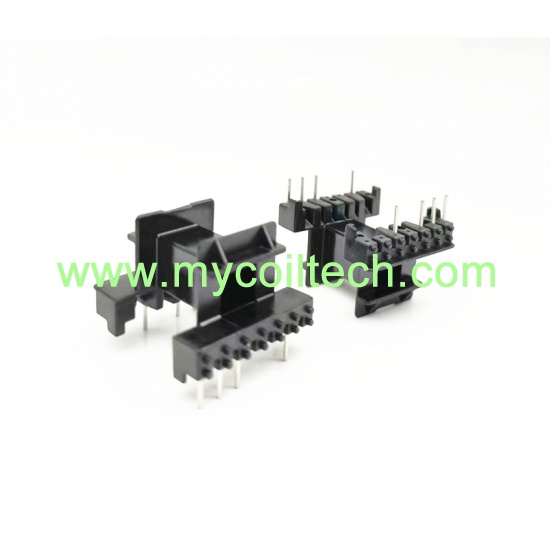

7+7 pins EF25 coil former, horizontal EF25 transformer bobbin. Parallel Distance=25.40mm. Pin distance=3.80mm. Bobbin Size=30.6mmX26.0mmX19.3mm. For special size bobbin, we can make new tooling to meet customer's requirement.
brand:
MCTitem no.:
MCT-EF2592MOQ:
1payment:
T/T in advance; PayPalSwitching power supply transformer bobbin, EF25 horizontal 7+7 pins bobbin, supply EF25 ferrite cores at competitive prices.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
EF20 Switching Power Supply Transformer Frame 5+7 Pins
EF20 high frequency bobbin, 5+7 pins EF20 horizontal bobbin. Coil former size=27.5mmX24.8mmX18.0mm, parallel distance=20.32mm, pin pitch/distance 1 =2.5mm. Pin pitch/distance 2＝5.08mm. This is our latest best selling product that supports small batch customization. We can also custom transformer related products.
EF20 5+5 Pins Vertical Bobbin for Electronic Transformer
EF20 household appliance transformer bobbin is a very popular product in our factory, 5+5 pins EF20 vertical coil former. Bobbin size=22mmX13.8X23.4mm. We accept custom orders for high frequency transformers, inductors, current transformers, etc.
