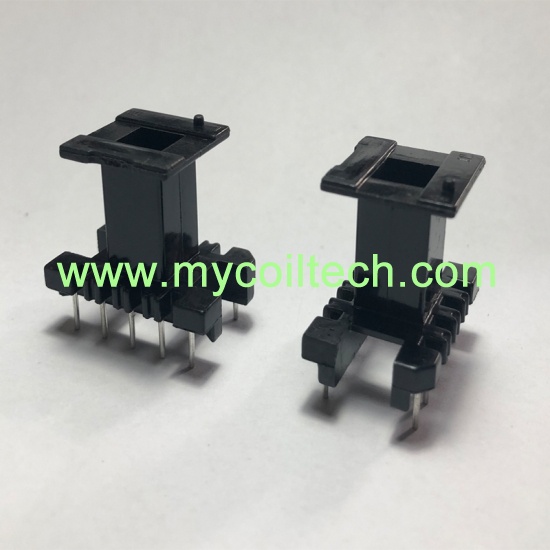

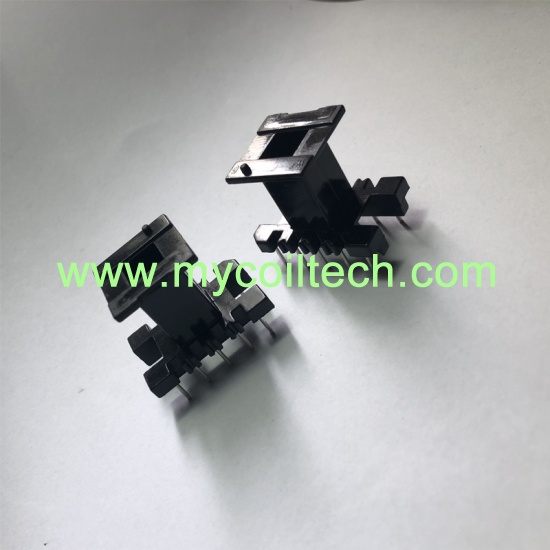

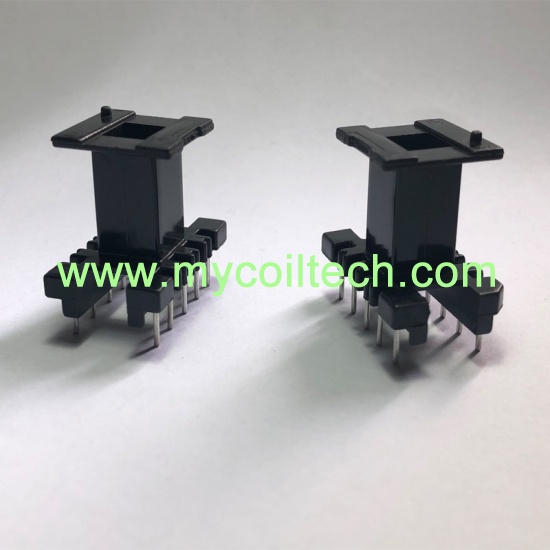

Power transformer in horizontal and vertical type. EF25 coil former 5+5 pin. Bobbin Size=24.0mmX17.0mmX24.4mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. Phenolic material transformer bobbin. DIP transformer bobbin.
brand:
MCTitem no.:
MCT-EF2580shipping port:
Shanghaipayment:
T/T in advance; PayPalHot selling vertical EF25 bobbin. New bobbin tooling, good quality and factory price, welcome for small order.
Quick Details
|
Part No: MCT-EF2580 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black, Red |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EF25 Vertical Bobbin For Step Down Transformer
Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.
Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.

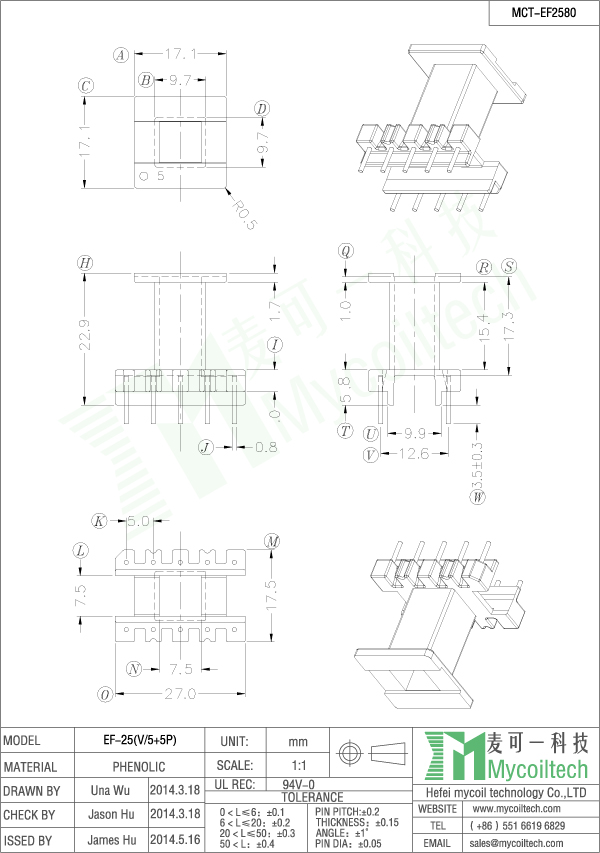

Product Specification
Welcome for more information!
