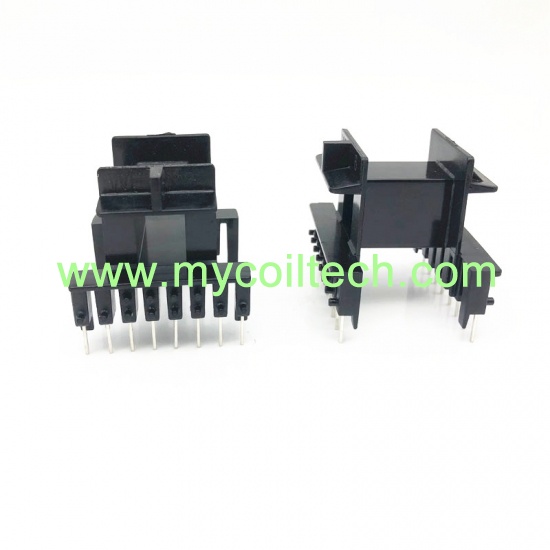

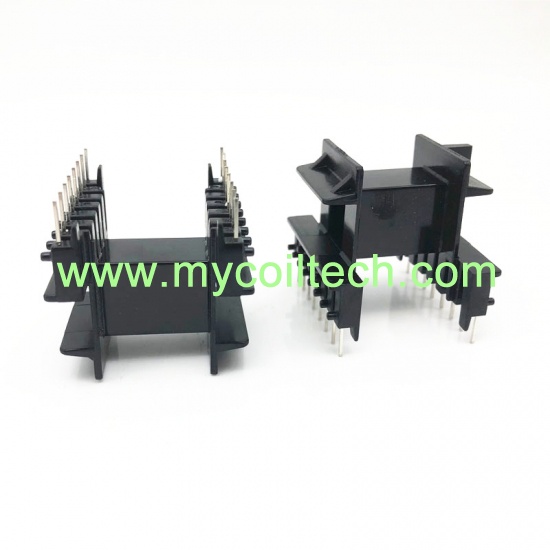

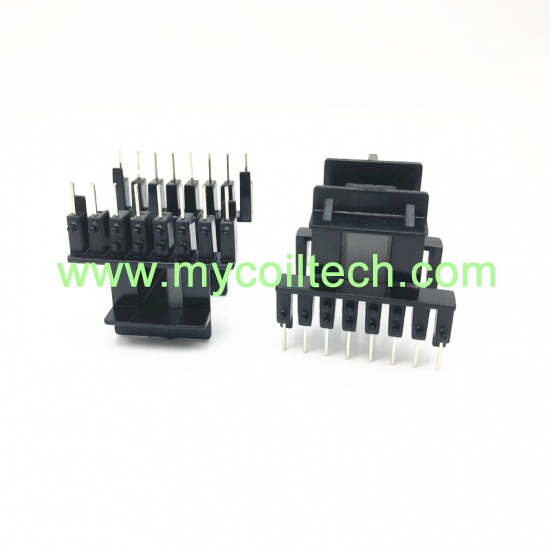

EF36 SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer. 8+8 pins EF36 coil former. Bobbin Size=38.5mmX37.4mmX27.7mm. Pin pitch=3.5mm. Parallel Distance=30.0mm. DIP transformer bobbin.
product origin:
Chinabrand:
MCTitem no.:
MCT-EF3601shipping port:
Shanghaipayment:
T/T in advanceprice range:
3000-5000/0.028$We produce EF36 coil bobbin and supply matched ferrite cores. Customized design and specification also available.
Quick Details
|
Part No: MCT-EF3601 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EF36 Flyback Transformer Horizontal Bobbin
Standard parts: Transformers, Inductor, current transformers, magnetic cores.
Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.

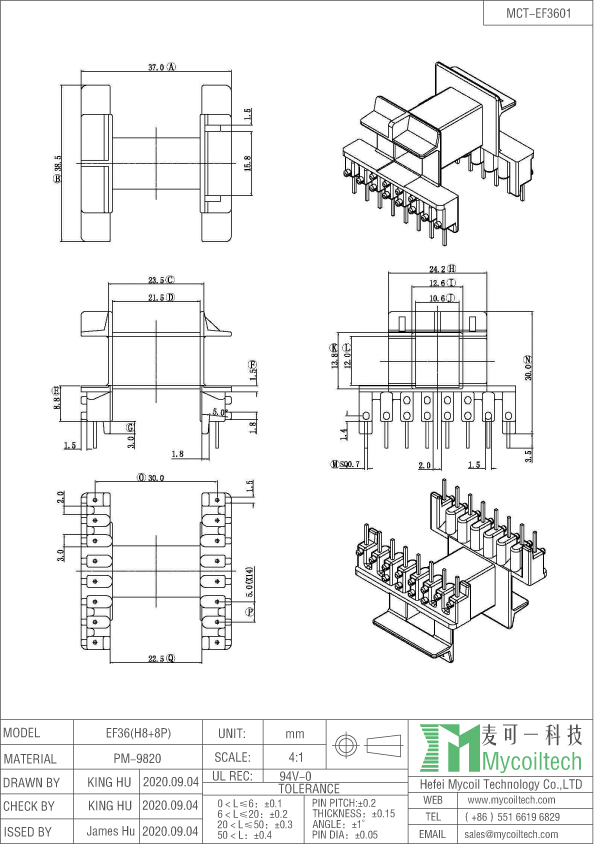

Product Specification
Please be free to contact us, we will do our best to serve you.
