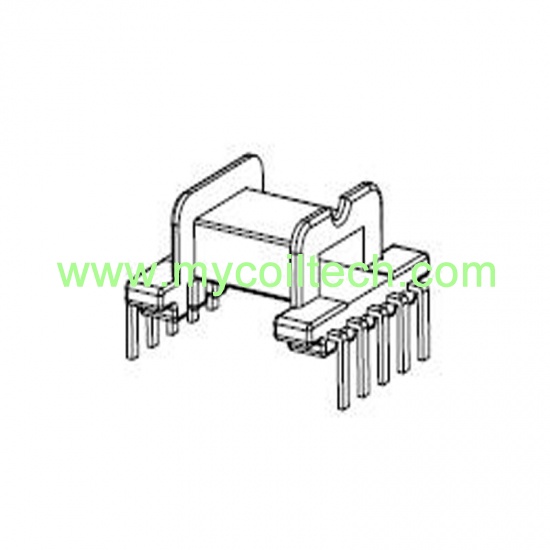

EFD15 Horizontal Transformer Bobbin L Pin

SMD power transformer. EFD15 SMD bobbin with through-hole wound components and single section. Pin Pitch=2.5mm. Bobbin Size=17.0mmX15.0mmX7.45mm. Parallel distance=15.0mm. EFD15 transformer bobbin made of PM9630 material.

brand:
MCT
item no.:
MCT-SMD-EFD1517
shipping port:
Shanghai
payment:
T/T in advance
price range:
3000-5000/0.033$

contact now

product description

Surface mounting transformer EFD15 ferrite core bobbin, SMD coil former with factory price.

Quick Details

Part No: MCT-SMD-EF1517	Brand Name: MCT
Material: PM9630	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
