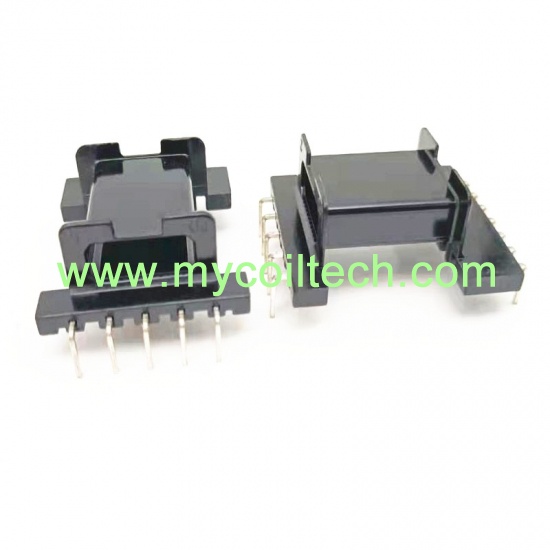

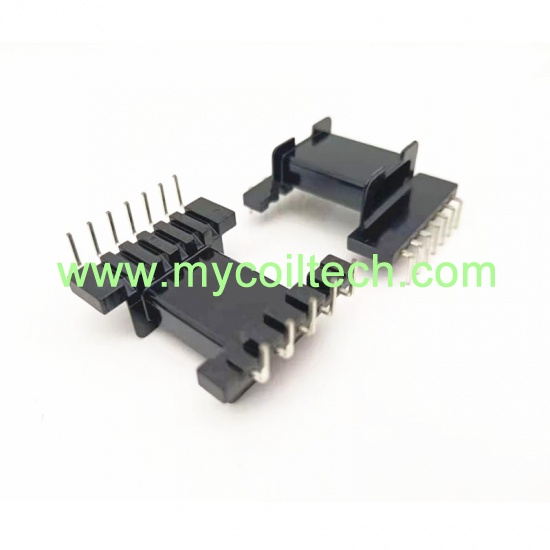

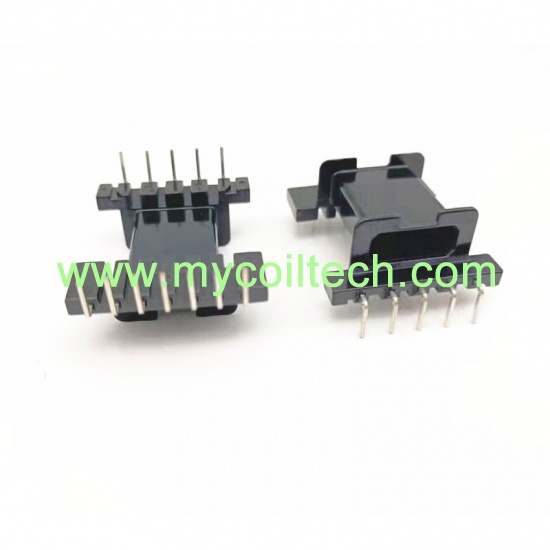

EFD30 power transformer frame. EFD30 DIP bobbin 5+7 pins horizontal bobbin. EFD30 MnZn magnetic ferrite cores. Row distance=35.0mm. Pin pitch=5.04mm. EFD30 high voltage transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
brand:
MCTitem no.:
MCT-EFD3011-1shipping port:
Shanghailead time:
5-10 dayspayment:
T/T in advanceFactory price EFD30 horizontal bobbin 5+7 pins, accept custom PCB mounting transformer.

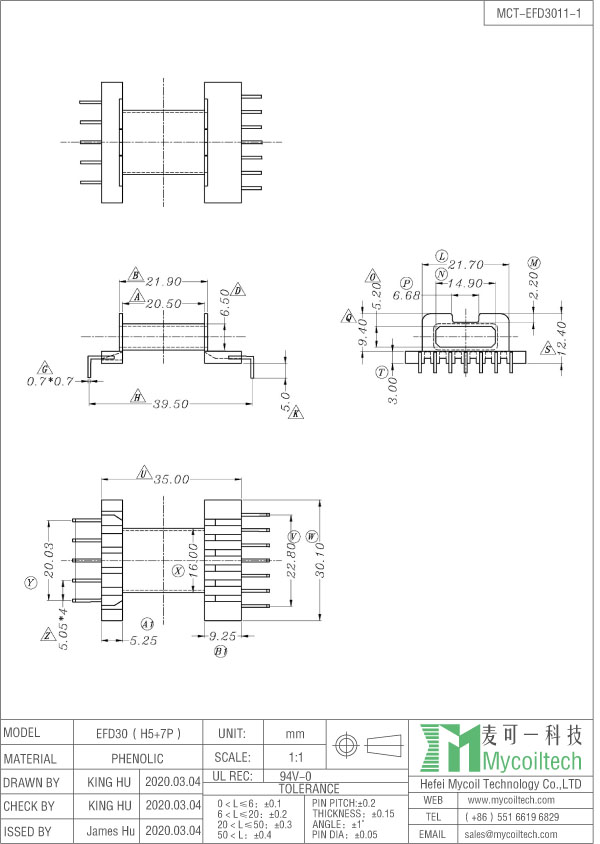

Product Specification
For more details, please contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EFD10 Electronic Transformer Bobbin, 2+2 Pin Horizontal Bobbin
2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm
EFD25 Power Supply Transformer 5+7 Pins Bobbin
Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
2+5 Pins EFD12 Phenolic Bobbin
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm
EFD30 High Voltage Transformer Frame
EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.
Horizontal Bobbin EFD15 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm
Power Transformer EFD15 Horizontal Bobbin
EFD15 pcb mounting transformer bobbin. 4+4 pins EFD15 coil bobbin. Bobbin size=16.2mmX15.0mmX8.2mm. Pin Pitch=3.8mm. Parallel distance=13.7mm. Phenolic material EFD15 transformer bobbin. Welcome customized EFD15 transformer.
EFD15 Flyback Transformer Horizontal Coil Former
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.75mm, Parallel Distance=13.8mm Size=16.4mmX15mmX8.3mm
Horizontal Bobbin EFD15 Phenolic Material With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.6mm Size=17mmX15mmX9.6mm
Four Slots EFD15 Transformer Horizontal Bobbin
EFD15 ferrite core, 5+5 Pins horizontal transformer bobbin, pin pitch=2.5mm, Parallel Distance=14.6mm, Bobbin Size=17mmX15mmX8.5mm. We manufacture final EFD15 transformer.
EFD15 Horizontal Bobbin With 4+4 Pins Phenolic Material
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=3.75mmX13.7mmX8.4mm
EFD15 Transformer Bobbin Horizontal Bobbin With 4+2 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm
EFD15 Transformer Bobbin Horizontal Bobbin With 4+2 Pins
4+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm
