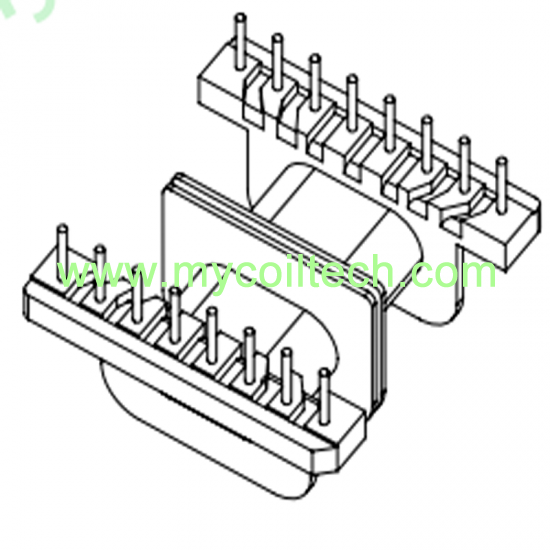

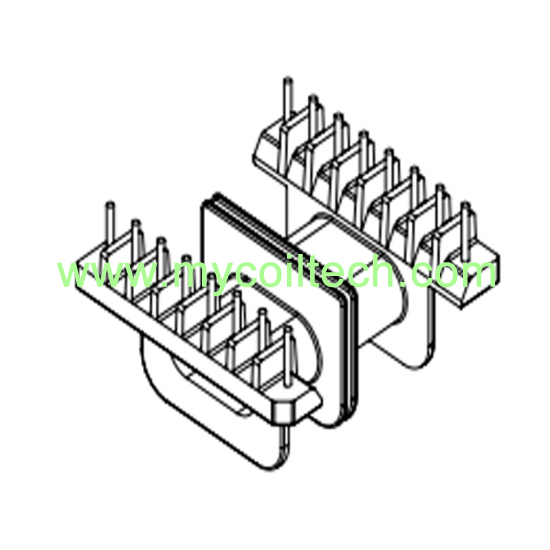

EFD40 high frequency transformer multi slot bobbin is a very popular product in our factory, 8+8 pins EFD40 horizontal bobbin，bobbin former size=42.60mmX41.00X17.40mm.We accept customized transformer frame sizes. If your industry belongs to laboratory research and development, medical equipment, military industry, or manufacturing, you can contact us at any time and we can provide transformer samples.
product origin:
Chinabrand:
MCTitem no.:
MCT-EFD4010 & MCT-EFD4010-1MOQ:
5000
Our EFD40 power transformer bobbin product is made of phenolic transformer material, which combines high insulation and high temperature resistance. It also has advantages such as flame retardancy, high mechanical strength, dimensional stability, and corrosion resistance, greatly improving the service life of the transformer.We have a professional design team capable of providing tailored customization services, covering current transformers, common mode inductors, high-frequency transformers, potted transformers, and more.

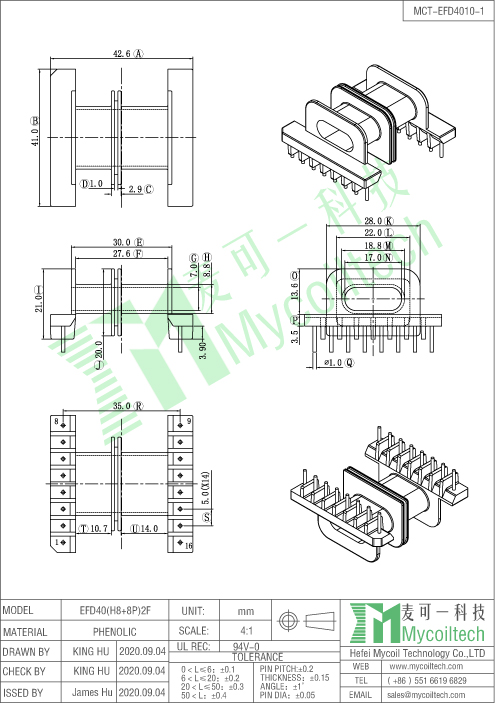

Production Specification
This is the same product from our company's EFD series
EFD10 Electronic Transformer Bobbin, 2+2 Pin Horizontal Bobbin
2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm
EFD25 Power Supply Transformer 5+7 Pins Bobbin
Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
2+5 Pins EFD12 Phenolic Bobbin
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm
EFD30 High Voltage Transformer Frame
EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.
Horizontal Bobbin EFD15 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm
