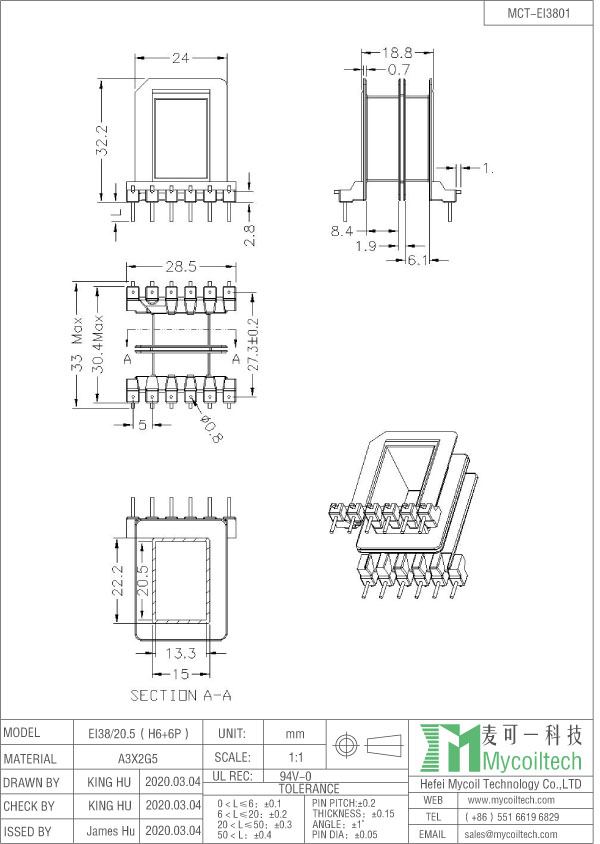

EI38 ferrite core bobbin, 6+6 pins EI38/20.5 coil former. A3X2G5 material horizontal bobbin. Size=33.0mmX28.5mmX32.2mm, Parallel distance=27.3mm. Bobbin pin pitch=5.0mm. We produce various transformer bobbins and supply magnetic cores, we accept make new tooling to meet special size requirements.
brand:
MCTitem no.:
MCT-EI3801shipping port:
Shanghaipayment:
T/T in advance; PayPalEI38 6+6 pin coil former, horizontal 6+6 pin transformer bobbin, supply matched ferrite cores.
Product Specification
Welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Double Slots EI13 Transformer Vertical Bobbin Penolic Material
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=8.5mm Size=12.4mmX12.3mmX11.4mm
EI13 Transformer Bobbin Vertical Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX12.5mmX10.7mm
Double Slots EI13 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=12.3mmX12.5mmX11mm
5+5 Pins EI13 Transformer Bobbin Phenolic Material Dip Type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=13.3mmX12.2mmX12mm
EI13 Transformer Bobbin Double Slots 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=13.3mmX12.2mmX12mm
Double Slots EI13 Transformer Bobbin Phenolic Material
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=16mmX12.7mmX10.8mm
5+5 Pins EI13 Transformer Bobbin Vertical Bobbin Dip Type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=16mmX12.7mmX10.8mm
5+5 Pins EI13 Transformer Bobbin Phenolic Material
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.8mm Size=13mmX12.5mmX13mm
Double Slots EI13 Transformer Bobbin 5+5 Pins Vertical type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.8mm Size=12.5mmX12.5mmX13mm
EI13 Transformer Bobbin 3+3 Pins With Double Slots
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.4mmX12.1mm
Double Slots EI13 Transformer Bobbin 3+3 Pins Dip Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.4mmX11.5mm
EI13 Transformer Bobbin Vertical Bobbin 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.2mmX11.9mm
