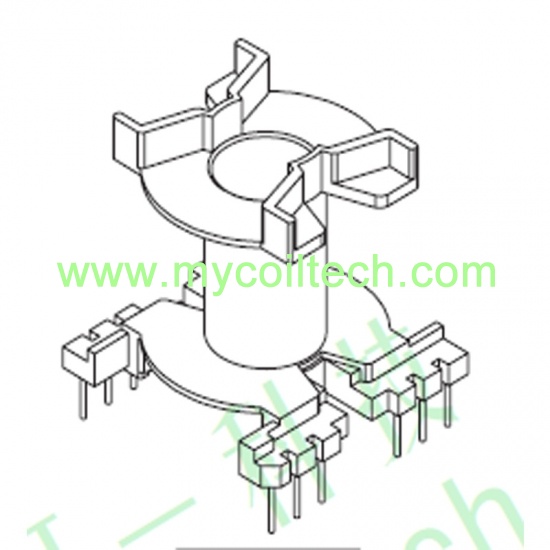

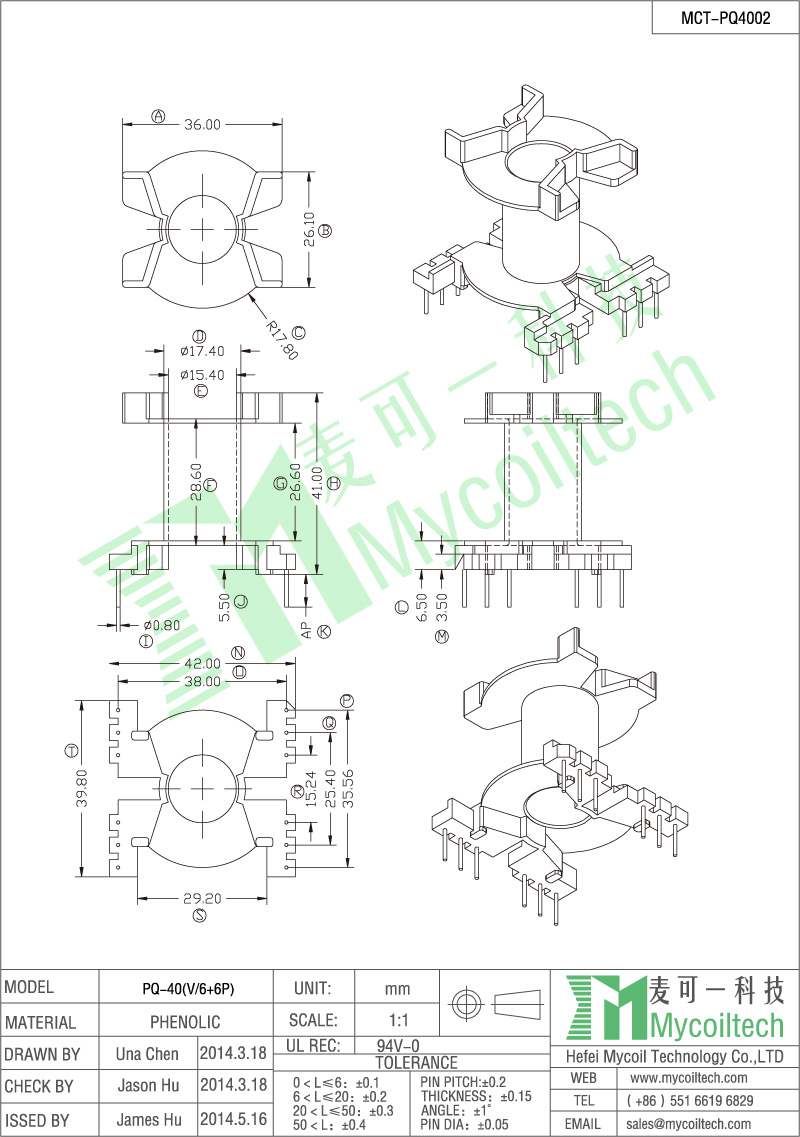

6+6 pins PQ40 transformer bobbin. Phenolic PQ bobbin.
Parallel Distance=38mm. PQ40 Vertical transformer bobbin.
Bobbin Seize=42mmX39.8mmX41mm, Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-PQ4002(V6+6P)MOQ:
1shipping port:
ShanghaiWe are a factory in Hefei, China, specialized in manufacturing coil type products and filters( kinds of transformers, chokes, inductors, other accessories) for 10 years in china, mainly in home market before, now we started our oversea market. If you are looking for high quality electronic components, you can check our website for more product details, any request, welcome to contact us.
Quick Details
|
Part Number: MCT-PQ4002(V6+6P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Electronic Transformer Bobbin PQ40 Vertical Bobbin 6+6 Pins Coil Former
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
PQ32 LLC Resonant Transformer Bobbin
Vertical PQ32 coil bobbin. Single slot PQ32 bobbin 6+6pins. Bobbin Size=33.8mmX31.8mmX32.7mm. Pin pitch=5.0mm, parallel distance=22.8mm, we custom special bobbin tooling to meet size requirements, samples can be sent for testing.
PQ35 High Frequency Transformer Bobbin
PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.
PQ32 High Frequency Transformer Bobbin 6+6 Pins
PQ32 ferrite core bobbin, 6+6 pins PQ32 SMD bobbin. Coil former size=43.5mmX32.2mmX18.95mm, parallel distance=35.5mm, pin distance 1=7.5mm. pin distance 2=5.0mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26/25 High Voltage Transfomer Frame 6+4 Pins
PQ26 horizontal coil bobbin, 6+4 pins PQ26 through hole bobbin. Coil former size=29.8mmX26.4mmX27.5mm, parallel distance=26.3mm, pin distance =5.0mm, pin distance 2 =4.5mm. PQ26 electronic transformers are used for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26 High Frequency Transformer Bobbin 2+2 Pins
PQ26 ferrite core bobbin, 2+2 pins PQ26 vertical bobbin. Coil former size=22.0mmX14.0mmX22.0mm, parallel distance=18.0mm, pin distance=6.0mm. We can custom final transformers with specific parameters for different applications, such us UPS, charges, printers, etc.
