EMC optimized ET35 inductor for electric drive system

The ET35 series inductors are our best-selling products. By flexibly adapting to different core materials (such as manganese-zinc ferrite) and winding processes (such as multi-layer flat winding), the ET35 series common mode inductors not only ensure the EMC performance of equipment but also meet the requirements of miniaturization and high reliability, becoming the core EMI suppression components of modern electronic systems.For example, the ET35 anti interference inductor can be used in laboratory instruments In the signal acquisition circuit of a gene sequencer, the ET35 common-mode inductor (such as Mycoiltech's low-noise model) can suppress the interference of power supply ripple on weak bioelectrical signals. After the application of a certain sequencer, the baseline noise was reduced from ±10μV to ±2μV, improving the accuracy of gene mutation detection.

product origin:
China
brand:
MCT
item no.:
MCT-ET3502&MCT-ET3504
MOQ:
5000

contact now

product description

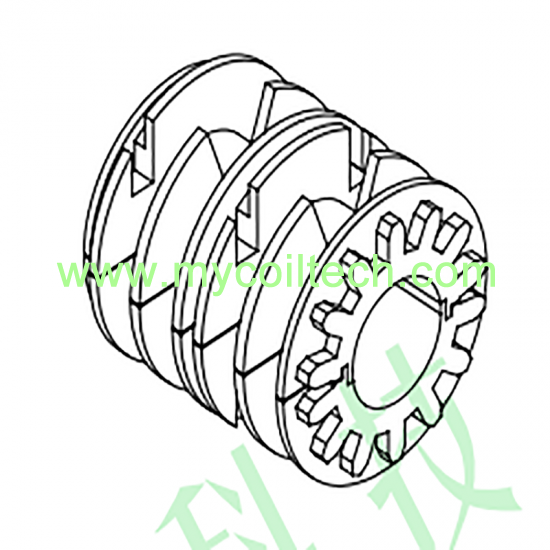

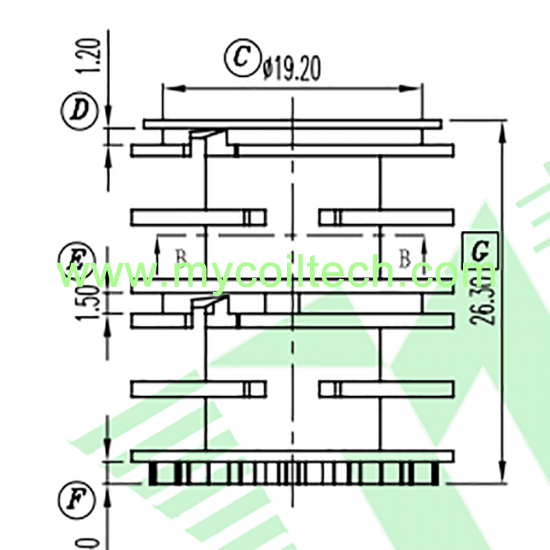

The ET35 series common mode inductor bobbin can be applied to consumer electronics and home appliances (such as power filtering for smart terminals, signal isolation for audio-visual equipment, and protection for home appliance control boards), industrial automation and energy (frequency converters and motor drives, new energy power generation systems, and stability of energy storage systems), communication and data centers (5G) Base station signal processing, server power filtering, industrial Ethernet anti-interference), automotive electronics and new energy vehicles (on-board power systems, EMC optimization of electric drive systems, intelligent cockpit signal isolation), medical and precision instruments (safety protection of medical equipment, anti-interference of laboratory instruments), special scenarios and emerging fields (security monitoring systems, LED Intelligent lighting, aerospace equipment.
As a professional electronic component factory, we offer ET35 bases and customization services.
