EP5 Soft Ferrite Core Bobbin For LAN Transformer

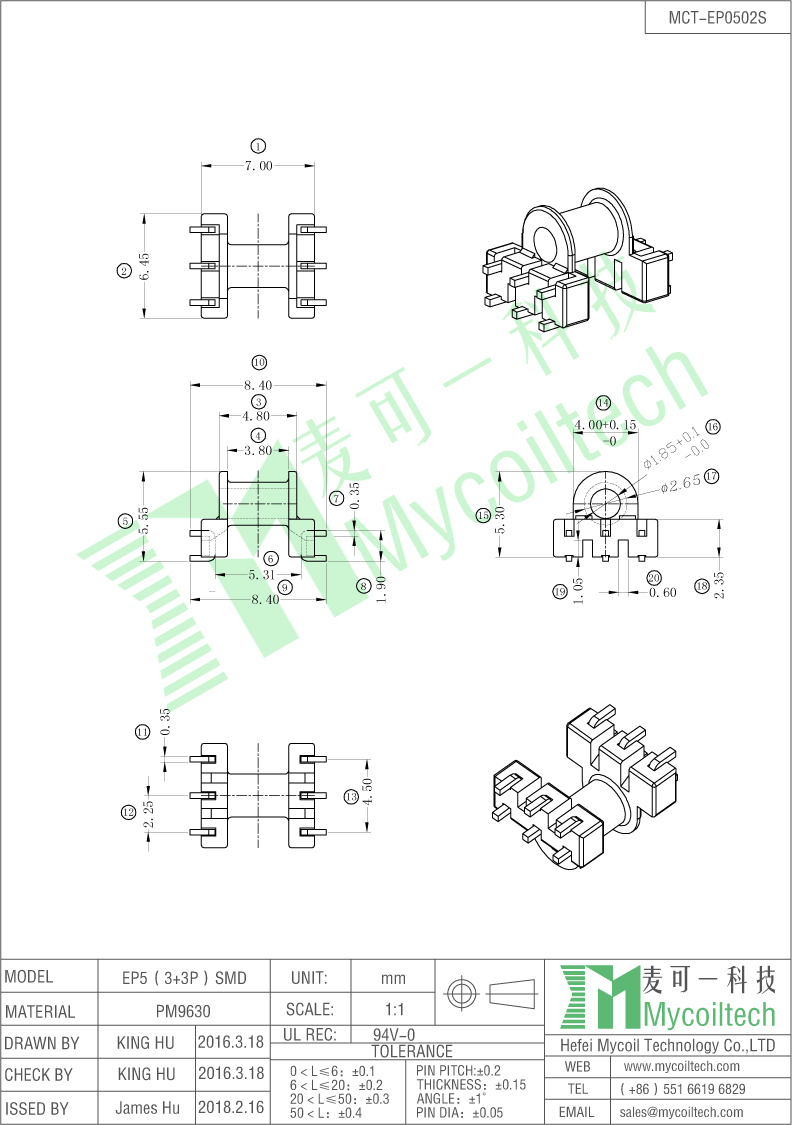

EP5 LAN transformer bobbin. 3+3 pins SMD bobbin. Bobbin Size=8.40mmX6.45mmX5.55mm. Parallel Distance=7.0mm. Pin pitch=2.25mm. PM9630 material transformer bobbin. UL REC: 94V-0. Custom design acceptable.

brand:
MCT
item no.:
MCT-EP0502S
shipping port:
Shanghai Port
payment:
T/T in advance
price range:
1000-5000/0.054$

contact now

product description

Professional transformer bobbin factory, low price EP5 coil bobbin, SMD bobbin pin 3+3, we supply matched magnetic cores and customized LAN transformers, if you have any requests, welcome to contact us.

Quick Details

Part No: MCT-EP5(3+3P)	Brand Name: MCT
Material: PM9630	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
