EPC19 Transformer Bobbin 4+6 Pins Horizontal Coil Bobbin

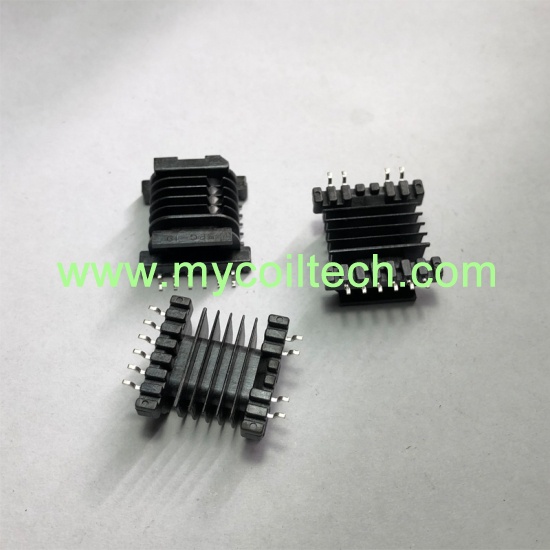

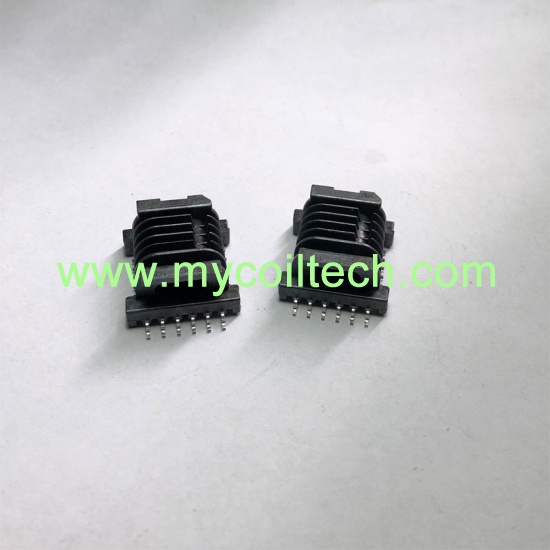

EPC19 Six Slots Transformer SMD Horizontal Bobbin

EPC19 SMD winding bobbin. Six slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=18.9mm. Bobbin Size=24mmX19mmX9.5mm. Customized designs are accepted.

brand:
MCT
item no.:
MCT-SMD-EPC1903(H4+6P6F)
MOQ:
1
shipping port:
Shanghai
payment:
T/T in advance; PayPal

contact now

product description

2019 popular EPC19 SMD bobbin, 4+6 pins six slots transformer bobbin, best quality and low price, samples can be sent for testing.

Quick Details

Part No: MCT-SMD-EPC1903	Brand Name: MCT
Material: LCP-E4008	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
