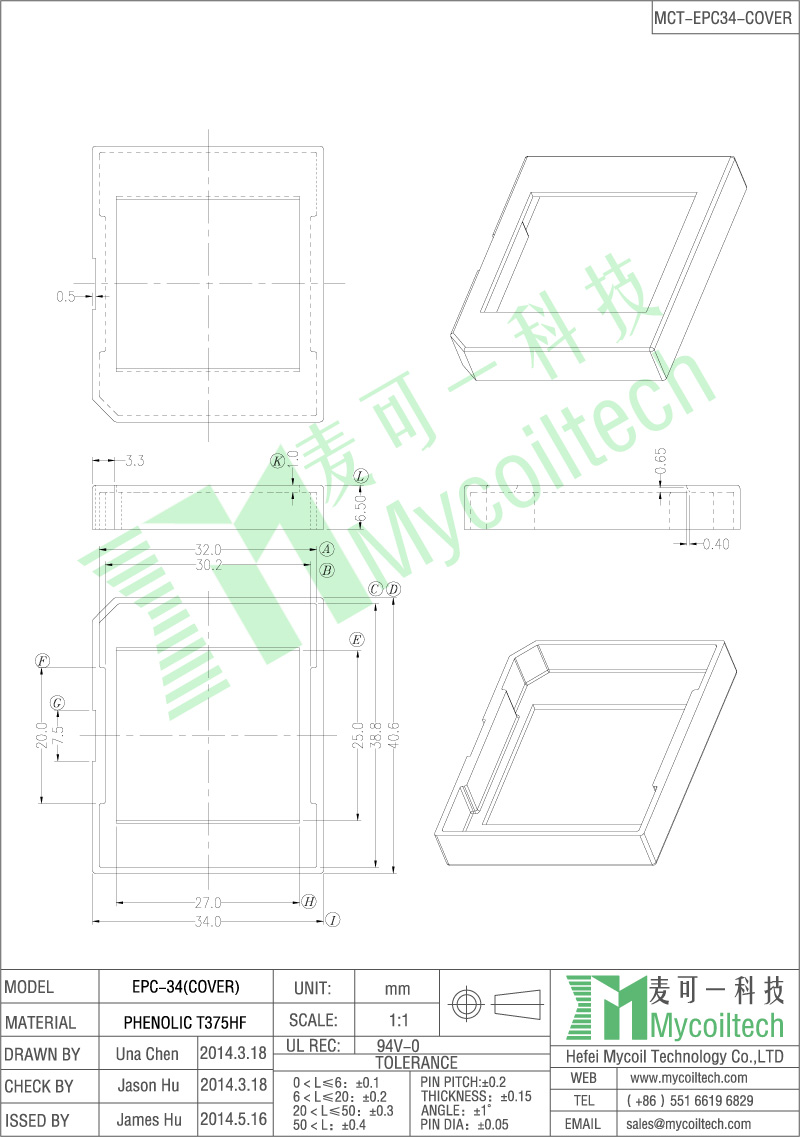

EPC34 Electronic Transformer Cover. UL REC:94V-0.
Phenolic and T375HF Material Cover. Accept custom design.
Transformer cover Size=40.6mmX34mmX6.5mm.
brand:
MCTitem no.:
MCT-EPC34-COVERshipping port:
ShanghaiPopular EPC34 bobbin and cover for electronic transformer. Good price and high quality transformer cover, if you are interested in our transformer bobbins, welcome to contact us.
Quick Details
|
Part Number: MCT-EPC34-COVER |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EPC34 Electronic Transformer Cover Phenolic and T375HF Material Cover
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EPC13 Power Transformer Bobbin Cover
EPC13 electronic transformer cover. Bobbin factory sale coil former, cover size=16.0mmX16.0mmX10.0mm. We produce various bobbins, we can make new tooling to meet special size requirements. EPC13 electronnic transformers widely used for PCB circuits, UPS, computers, switching power supplies,TVs, monitor, scanner and other electronics.
SMPS Flyback Transformer Bobbin EPC40 Core
PCB current transformer manufacturer. EPC40 high frequency bobbin mainly used for auxiliary powr transformer and main power transformer. Bobbin Size=41.5mmX26.2mmX23.2mm. Pin distance=5.0mm. We are bobbin factory, we supply various gigh quality ferrite cores for customers.
EPC Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=10.6mm Size=13.4mmX13.4mmX7.4mm
EPC13 Horizontal Bobbin For High Frequency Transformer 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.5mm
Horizontal Bobbin EPC13 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.2mm
5+0 Pins EPC13 Transformer Bobbin Dip Bobbin
5+0 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Size=12.78mmX12.07mmX7.24mm
5+5 Pins EPC13 Transformer Bobbin Phenolic Material
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13mmX7.4mm
EPC40 Power Transformer Frame 8+8 Pin Horizontal Bobbin
8+8 pin horizontal EPC40 ferrite core bobbin, windly used in auxiliary powr transformer and main power transformer. Bobbin Size=41.5mmX26.0mmX21.45mm. Pin distance=5.0mm. We are bobbin factory, we supply various gigh quality ferrite cores for customers.
6+6 Pins EPC34 Horizontal Bobbin for Electronic Transformer
EPC34 horizontal transformer bobbin. UL REC:94V-0. 6+6 Pins transformer bobbin. Parallel Distance=27.5mm. Bobbin Size=37.7mmX32.1mmX21.5mm. PHENOLIC T375HF Bobbin.
7+7 Pins EPC40 Horizontal Bobbin for Electronic Transformer
EPC40 horizontal transformer bobbin. UL REC:94V-0. 7+7 Pins transformer bobbin. DIP transformer bobbin. Bobbin Size=20.5mmX33.9mmX20.7mm. PF151 transformer Bobbin.
EPC40 Electronic Transformer Case PF151 Black Transformer Case
EPC40 black transformer case. PF151 transformer case for bobbins. Case Size=33.9mmX13.2mmX14.5mm. We can make case tooling. UL REC:94V-0.
14 Pins EPC40 Horizontal High Frequency Electronic Transformer Bobbin
EPC horizontal electronic transformer bobbin. UL REC:94V-0. 7+7 Pins EPC40 transformer bobbin. DIP transformer bobbin. Pin Pitch=4.98mm. PF151 transformer Bobbin.
