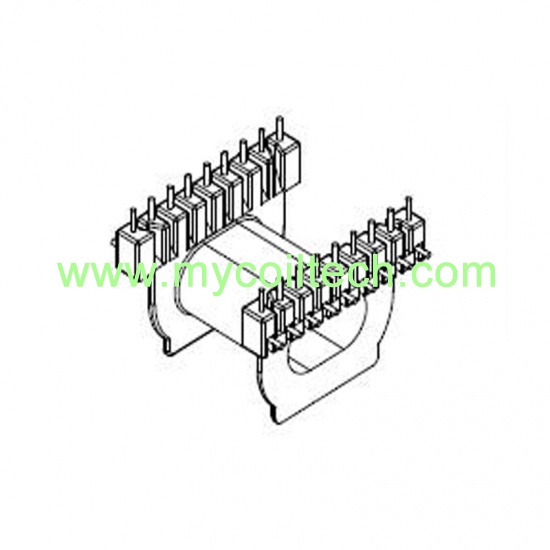

9+9 pin EPC46 horizontal coil former, mainly used for auxiliary power transformer and switching power supplies. Bobbin Size=44.0mmX40.0mmX29.4mm. Pin distance=5.0mm. Parallel distance=35.0mm. We are bobbin factory, we supply various high quality ferrite cores for customers.
brand:
MCTitem no.:
MCT-EPC46.5(H/9+9P)shipping port:
Shanghaipayment:
T/T in advance; PayPalBest quality EPC46 horizontal for transformer, supply matached soft ferrite cores for testing.

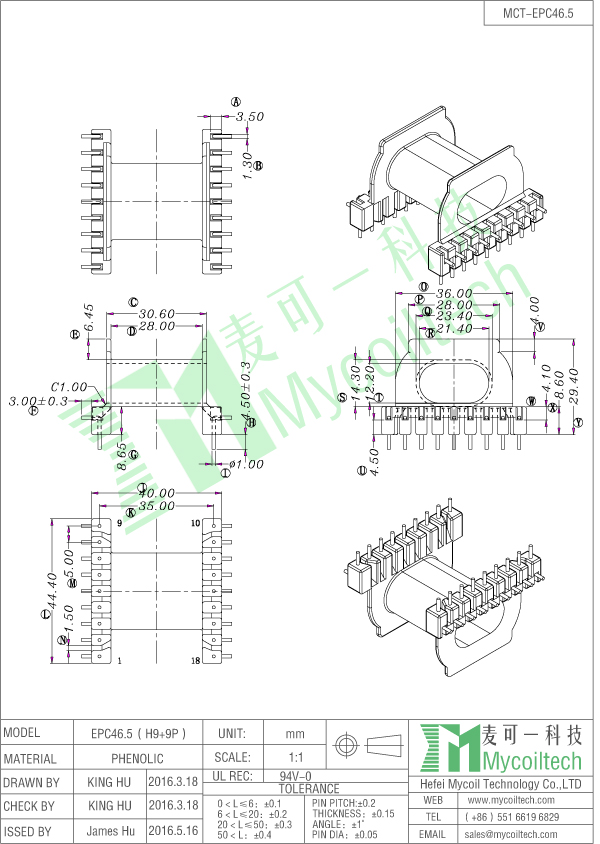

Product Specification
FAQ?
Q1: Do you provide samples?
A1: Yes, we provide 3-5pcs free samples.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products to meet your needs.
Q3:How bout your supply ability?
A3:We can ship 5millions pieces per month
Q4:How’s the package?
A4: Normally are cartons, but we accept customized pack according to your requirements.
If you are interested in our items, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
QQ: 2783136957
Contact: Miss Lily
EPC13 Power Transformer Bobbin Cover
EPC13 electronic transformer cover. Bobbin factory sale coil former, cover size=16.0mmX16.0mmX10.0mm. We produce various bobbins, we can make new tooling to meet special size requirements. EPC13 electronnic transformers widely used for PCB circuits, UPS, computers, switching power supplies,TVs, monitor, scanner and other electronics.
SMPS Flyback Transformer Bobbin EPC40 Core
PCB current transformer manufacturer. EPC40 high frequency bobbin mainly used for auxiliary powr transformer and main power transformer. Bobbin Size=41.5mmX26.2mmX23.2mm. Pin distance=5.0mm. We are bobbin factory, we supply various gigh quality ferrite cores for customers.
EPC Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=10.6mm Size=13.4mmX13.4mmX7.4mm
EPC13 Horizontal Bobbin For High Frequency Transformer 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.5mm
Horizontal Bobbin EPC13 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13.3mmX7.2mm
5+0 Pins EPC13 Transformer Bobbin Dip Bobbin
5+0 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Size=12.78mmX12.07mmX7.24mm
5+5 Pins EPC13 Transformer Bobbin Phenolic Material
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.5mm Size=13.3mmX13mmX7.4mm
EPC40 Power Transformer Frame 8+8 Pin Horizontal Bobbin
8+8 pin horizontal EPC40 ferrite core bobbin, windly used in auxiliary powr transformer and main power transformer. Bobbin Size=41.5mmX26.0mmX21.45mm. Pin distance=5.0mm. We are bobbin factory, we supply various gigh quality ferrite cores for customers.
EPC34 Electronic Transformer Cover Phenolic and T375HF Material Cover
EPC34 Electronic Transformer Cover. UL REC:94V-0. Phenolic and T375HF Material Cover. Accept custom design. Transformer cover Size=40.6mmX34mmX6.5mm.
6+6 Pins EPC34 Horizontal Bobbin for Electronic Transformer
EPC34 horizontal transformer bobbin. UL REC:94V-0. 6+6 Pins transformer bobbin. Parallel Distance=27.5mm. Bobbin Size=37.7mmX32.1mmX21.5mm. PHENOLIC T375HF Bobbin.
7+7 Pins EPC40 Horizontal Bobbin for Electronic Transformer
EPC40 horizontal transformer bobbin. UL REC:94V-0. 7+7 Pins transformer bobbin. DIP transformer bobbin. Bobbin Size=20.5mmX33.9mmX20.7mm. PF151 transformer Bobbin.
EPC40 Electronic Transformer Case PF151 Black Transformer Case
EPC40 black transformer case. PF151 transformer case for bobbins. Case Size=33.9mmX13.2mmX14.5mm. We can make case tooling. UL REC:94V-0.
