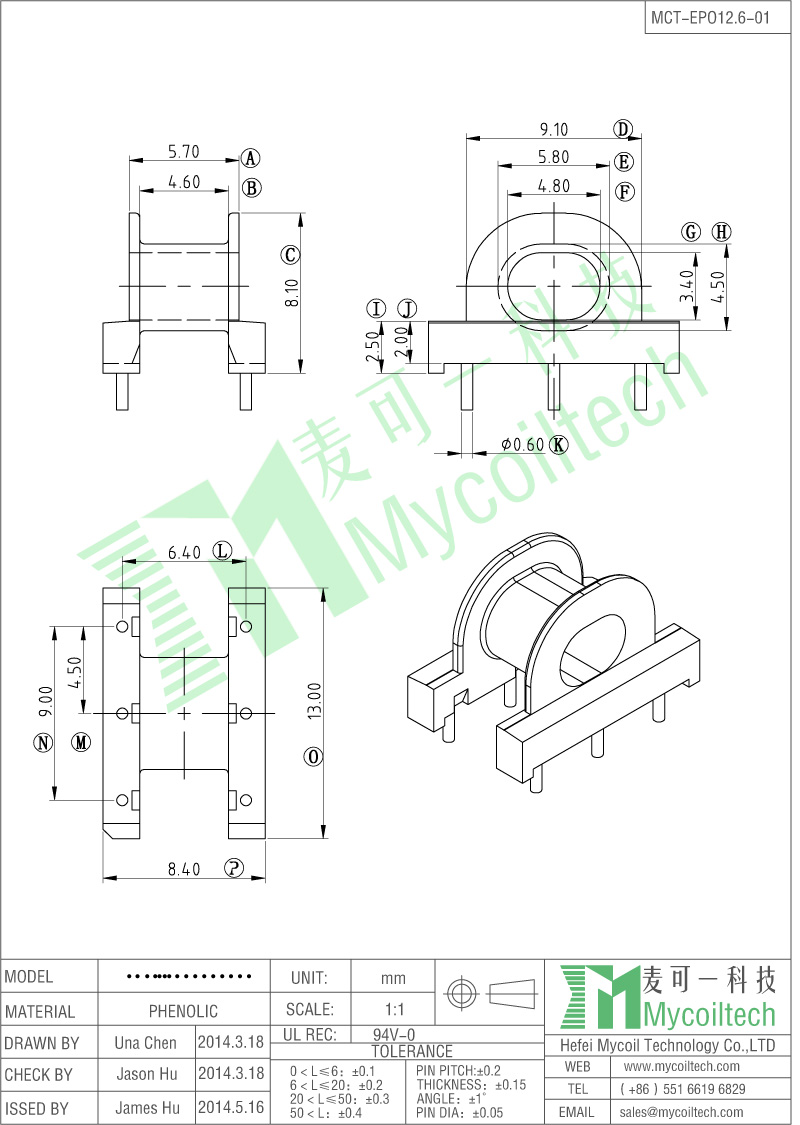

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Pin Pitch=4.5mm Parallel Distance=6.4mm
Size=13mmX8.4mmX8.1mm
brand:
MCTitem no.:
MCT-EPO12.6-01(H3+3P)shipping port:
ShangHai300,000 pcs products can be shipped every month.custom made and design service is available.big discount now ,any requests are available.
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material:Phenolic |
|
Part Number: MCT-EPO12.6-01(H3+3P) |
|
Brand Name: MCT |
|
Color: black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: EPO12.6 Transformer Bobbin Horizontal Bobbin With 3+3 Pins.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
EPO12.6 Horizontal Bobbin Dip Type With Double Slots
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.5mm Parallel Distance=6.4mm Size=13mmX8.4mmX8.1mm
EDR28 LED Power Transformer Bobbin with 5+5 Pins
EDR28 L pin transformer bobbin. EDR28 phenolic transformer bobbin. Pin Pitch=3mm. EDR28 LED transformer bobbin. Bobbin Size=39.9mmX14.9mmX7.4mm. DIP L pin /SMD bobbin. UL REC:94V-0
PQ65 Flyback Transformer Frame PQ65 No Pin Bobbin
PQ65 ferrite core bobbin, no pin PQ65 coil former. PM9823 material PQ65 coil bobbin. We are experienced IS09001 certificated factory, our main products are various transformer bobbins, magnetic cores, transformers and filter inductors. For special size bobbin, we can make tooling to meet requirement.
SMD ER11.5 Flexible SMPS High Frequency Transformer
ER11.5 SMPS transformer with 5+3 pin SMD coil former. It has low leakage inductance, high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.
EI19 Electronic Transformer Bobbin Vertical 5+5 Pins
5+5 pins vertical bobbin. EI19 single slot transformer bobbin. Bobbin Parallel Distance=13mm. Pin Pitch=3.9mm. Bobbin size=20.2mmX15.8mmX19mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.
EFD15 SMD Transformer Bobbin Clip
SMD EFD15 bobbin clip, SUS-301 material EFD15 transformer clips. Clip size=16.0mmX5.2mm. We produce various DIP and SMD type EFD20 EFD15 EFD30 series bobbins. EFD15 clamp for transformer, mainly used in power supply, LED light power, audios, computers, UPS, and other electronic equipment.
EF16 Vertical Bobbin Dip Bobbin Phenolic Material With 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.75mm Parallel Distance=11.5mm Size=16.6mmX12.8mmX18.2mm
EF25 Soft Ferrite Core Bobbin Horizontal 5+5 Pin
EF25 5+5 pin horizontal bobbin. EF25 ferrite core transformer bobbin. Bobbin Size=25.9mmX25mmX21.7mm. Parallel Distance=20mm. Pin pitch=5mm. PA66 material bobbin. DIP transformer bobbin.
High Frequency SMD EFD30 Transformer Bobbin 6+6 Pins
Flyback transformer EFD30 bobbin, horizontal EFD30 6+6 pin SMD coil former. Supply matched ferrite cores, row distance=31.0mm. Pin pitch=4.5mm. Pin pitch2=3.8mm. Bobbin Size=39.6mmX30.2mmX12.1mm. EFD30 transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EFD20 Power Transformer Horizontal Bobbin
EFD20 high voltage transformer bobbin, single slot EFD20 transformer frame, 7+4 pins horizontal EFD20 coil former. Bobbin size=30.0X23.0mmX11.5mm. EFD20 bobbin phenolic material, we manufacture EFD20 transformers for power supplies, welcome customized electronic transformer.
RM14 Telecom Transformer Vertical Frame
Power charge transformer bobbin. RM14 6+6 pin vertical coil bobbin.Widely used in communication transformer, high frequency Transformer, main power transformer and SMPS transformer. We have many bobbin toolings, for special size, we can make new tooling to meet requirement.
ETD34 Horizontal 7+7 Pins Flyback Transformer
ETD34 ferrite core bobbin. 7+7 pin horizontal coil former. Bobbin Size=42.4mmX38.8mmX29.4mm. Pin pitch=5.0mm. Parallel Distance=25.5mm. We supply ETD34 ferrite cores and transformers. ETD34 flyback transformer widely used in inverters, medicial supplies, power supply,amplifier,electrical equipments,LED drive supply, etc.
