ET20 Transformer PBT Material Bobbin

ET20 high frequency bobbin, flyback transformer bobbin with base. Manufacture final ET20 transformer, welcome customized transformers. Bobbin Size=15.0mmX11.3mm.

brand:
MCT
item no.:
MCT-ET2007
shipping port:
ShangHai
lead time:
15-20days
payment:
T/T in advance; PayPal

contact now

product description

ET20 multi section coil former, supply matched base, samples can be sent for testing.

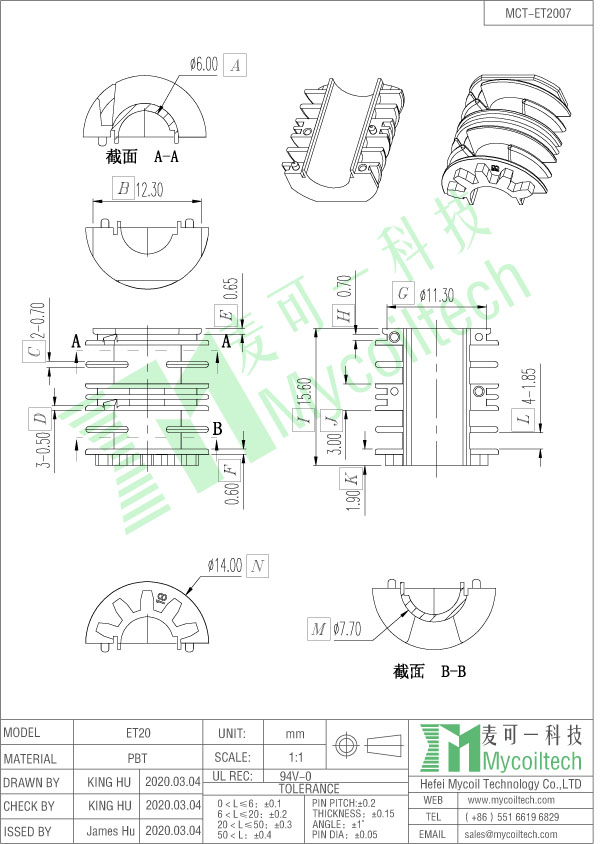

Product Specification

ET20 soft ferrite bobbin

For more details, welcome to contact us:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
