brand:
MCTitem no.:
ER Series Ferrite Coreshipping port:
Shanghai
Quick Details
|
Part Number: ER Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core High permeability |
OEM: Available |
|
Core Materials: M10P, M7P, M5P, MP4 |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: ER Series Power Ferrite Core for Filter Transformer, Pulse Transformer
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: High-frequency switching power transformers. Matching transformer. Filter transformer. Pulse transformer. Electronic ballasts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details

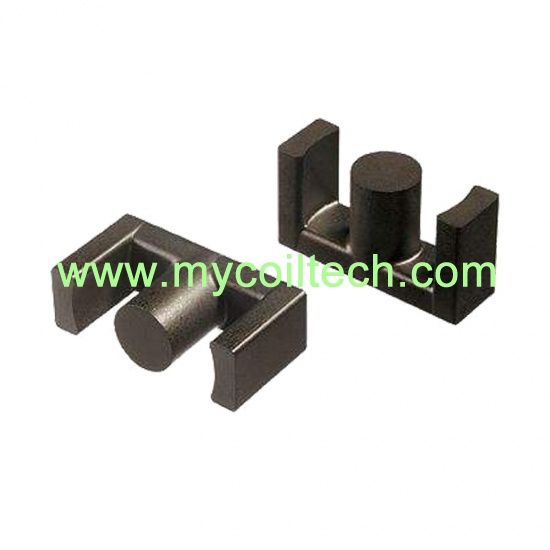

ER series ferrite core for electronic transformers and inductors
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
ER7.5 |
7.50±0.15 |
2.50±0.05 |
4.5±0.1 |
6.22 |
2.65±0.15 |
1.75±0.05 |
0.75 |
|
ER9.5 |
9.35±0.15 |
2.45±0.05 |
4.9±0.1 |
7.5+0.25 |
3.40±0.1 |
1.68±0.08 |
0.96 |
|
ER11/5 |
10.8±0.25 |
2.45±0.1 |
5.9±0.2 |
8.70 |
4.40±0.15 |
1.60±0.15 |
1.0 |
|
ER14.5/6 |
14.5±0.2 |
2.95±0.05 |
6.7±0.1 |
11.8±0.2 |
4.70±0.1 |
1.65±0.1 |
2.0 |
|
ER22 |
22.0±0.4 |
14.7±0.3 |
6.65±0.15 |
15.5 |
6.65±0.15 |
10.7±0.3 |
15.0 |
|
ER28 EC28 |
28.0±1.1 |
14.0±0.25 |
11.4±0.25 |
21.2 |
9.9±0.25 |
9.65±0.25 |
28.0 |
|
ER28L |
28.02±1.1 |
16.9±0.25 |
11.4±0.25 |
21.2 |
9.9±0.25 |
12.25±0.55 |
33.0 |
|
ER35 EC35 |
35.0±0.7 |
20.7±0.25 |
11.3±0.25 |
25.6 |
11.3±0.25 |
14.7±0.3 |
52.0 |
|
ER39 EC39 |
39.3±0.5 |
22.7 |
12.8±0.3 |
28.6 |
12.8±0.2 |
17.0±0.3 |
62.5 |
|
ER40 EC40 |
40.0±0.6 |
22.4±0.4 |
13.3±0.2 |
29.0 |
13.3±0.3 |
15.4±0.2 |
78.0 |
|
ER42 EC42 |
42.0±0.8 |
22.0±0.5 |
15.2±0.2 |
30.5 |
15.2±0.2 |
15.4±0.3 |
102.0 |
|
ER49 EC49 |
49.0±0.8 |
19.0±0.3 |
17.2±0.4 |
36.4 |
17.2±0.25 |
12.4±0.2 |
110.0 |
|
ER53 |
53.2±0.8 |
23.2±0.5 |
21.5±0.3 |
38.7 |
20.0±0.2 |
32.6±0.5 |
178.0 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
|||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
||
|
ER7.5 |
2.28 |
5.85 |
13.3 |
73.3 |
680 |
|
|
|
|
|
ER9.5 |
1.67 |
8.47 |
14.2 |
120 |
610min |
|
|
|
|
|
ER11/5 |
1.23 |
11.9 |
14.7 |
174 |
960 |
|
|
|
|
|
ER14.5/6 |
1.08 |
17.6 |
19 |
333 |
1600 |
|
|
|
|
|
ER22 |
1.665 |
37.5 |
62.4 |
2340 |
1450 |
|
|
|
|
|
ER28 EC28 |
0.784 |
82.1 |
64.0 |
5257 |
2990 |
|
|
|
|
|
ER28L |
0.924 |
85 |
78.3 |
6640 |
2660 |
|
|
|
|
|
ER35 EC35 |
0.820 |
113 |
92.2 |
10400 |
2800 |
|
|
|
|
|
ER39 EC39 |
0.792 |
130 |
103 |
13380 |
3500 |
|
|
|
|
|
ER40 EC40 |
0.656 |
149 |
98.0 |
14587 |
3890 |
|
|
|
|
|
ER42 EC42 |
0.547 |
183 |
96.3 |
17622 |
4500 |
|
|
|
|
|
ER49 EC49 |
0.395 |
231 |
91.3 |
21100 |
6250 |
|
|
|
|
|
ER53 |
0.338 |
319.5 |
105.9 |
33835 |
6200 |
|
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
