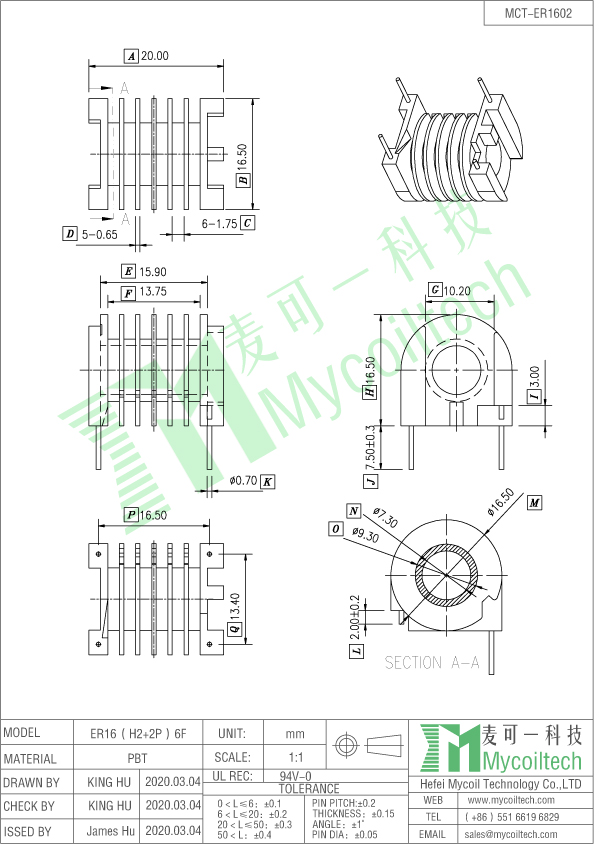

Pulse transformer ER16 bobbin. 2+2 pins ER16 six grooves transformer bobbin. Bobbin size=20.0mmX16.5mmX16.5mm. Pin pitch=13.4mm. Parallel distance=16.5mm. Multi section ER16 bobbin for transformer and coil, mainly used for DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
brand:
MCTitem no.:
MCT-ER1602shipping port:
Shanghaipayment:
T/T in advance;PayPalFactory price ER16 high voltage transformer frame, MP4 ferrite core bobbin with six slots, samples can be provided for testing.
Bobbin Specification
We manufacture final ER16 transformer, please feel free to send your requirements to us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
ER28 High Frequency Transformer Horizontal Bobbin
ER28 ferrite core bobbin, 5+5 pins ER28 single slot coil former. Bobbin size=29mmX25.8mmX21.0mm, parallel distance=23.0mm, pin pitch/distance=5.8mm. T375 material ER28 bobbin, we can custom final transformers.
