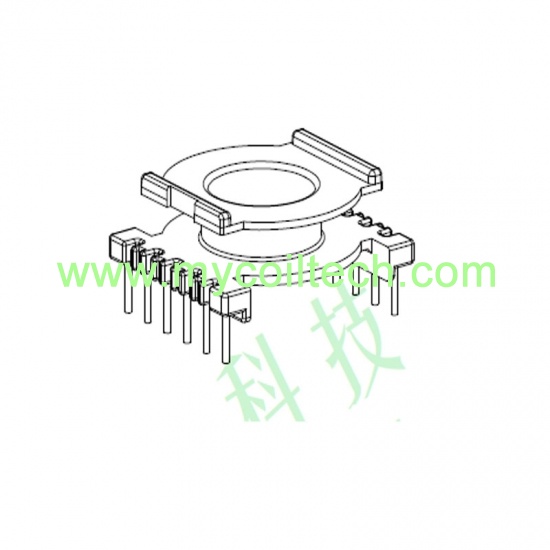

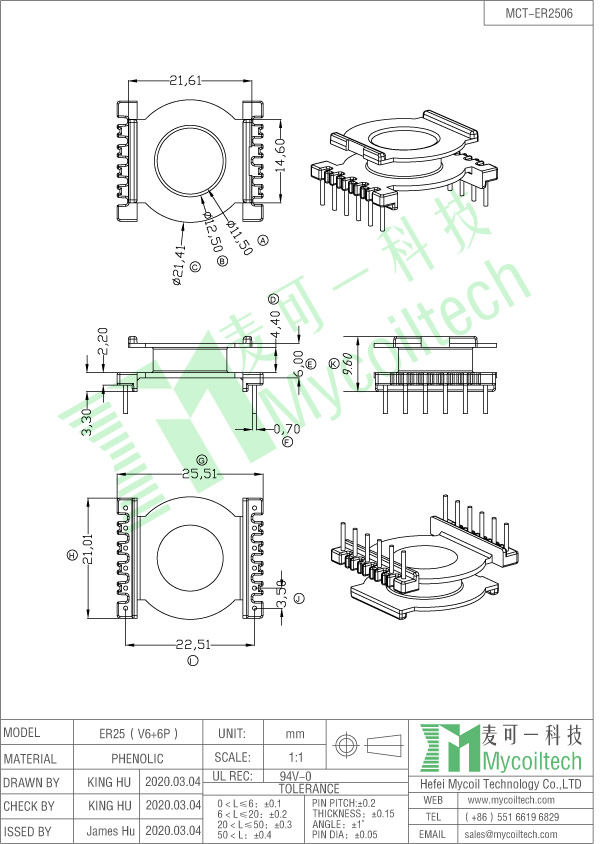

ER25 6+6 pins vertical bobbin. High frequency transformer ER25 coil former. Bobbin Size=25.51mmX21.01mmX9.60mm. Parallel distance=22.51mm. Pin Pitch=3.5mm. DIP bobbin. We can make new ER25 bobbin tooling.
brand:
MCTitem no.:
MCT-ER2506shipping port:
ShanghaiGood quality ER25 vertical transformer bobbin, 6+6 pins single slot coil former, samples can be sent for testing.
Product Specification
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
High Frequency ER14.5 SMD Transformer Bobbin
ER14.5 power transformers, SMD horizontal coil bobbin 6+6 pin. Parallel distance=12.0mm. Pin pitch=2.5mm. High voltage ER14.5 coil bobbin, LCP-E4008 material coil bobbin. We make bobbin tooling to meet customer's requirement. ER14.5 transformer for inverters, DC/DC converters, power systems, UPS, computers.
