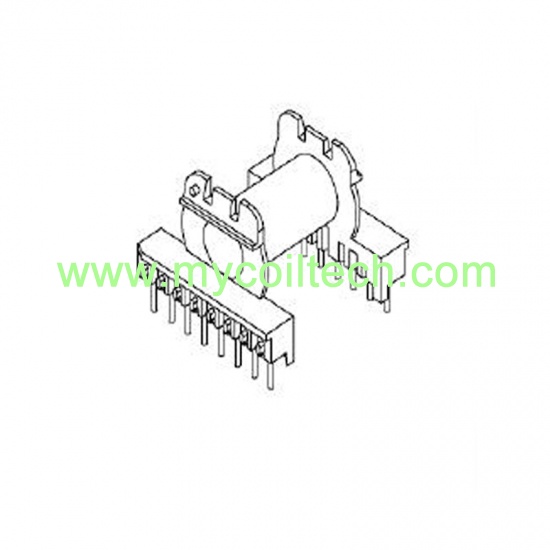

ER35 high current transformer manufacturer. Horizontal 8+8 pin ER35 coil former. Supply matched ER/EC35 ferrite cores. Parallel Distance=35mm. Pin Pitch=5.0mm. Bobbin Size=40mmX39.6mmX24.35mm.
brand:
MCTitem no.:
MCT-ER3507(H8+8P)shipping port:
ShanghaiHigh efficiency EC/ER series transformer bobbins, 8+8 pins horizontal transformer bobbin. We can design to meet different requirements.
Quick Details
|
Part Number: MCT-ER3507 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ER35 FlybackTransformer Horizontal Bobbin Pin 8+8
Product Range: Transformers,inductors,filters,bobbin,magnetic cores.
Applications: SMPS transformer,high frequency transformer,current transformer,drive transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
For more details, welcome to contact us.
Email: live:sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
High Frequency ER14.5 SMD Transformer Bobbin
ER14.5 power transformers, SMD horizontal coil bobbin 6+6 pin. Parallel distance=12.0mm. Pin pitch=2.5mm. High voltage ER14.5 coil bobbin, LCP-E4008 material coil bobbin. We make bobbin tooling to meet customer's requirement. ER14.5 transformer for inverters, DC/DC converters, power systems, UPS, computers.
