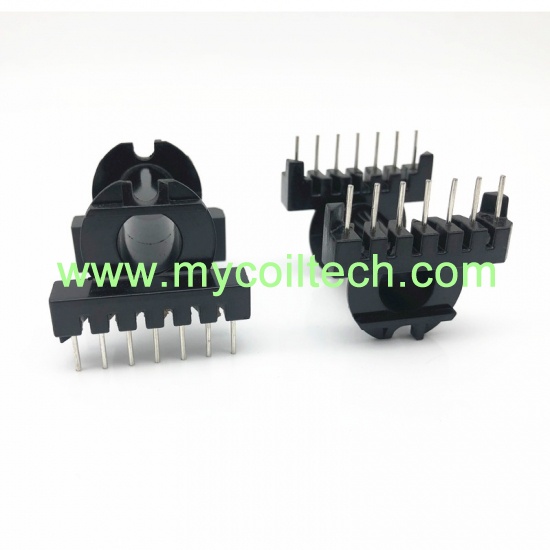

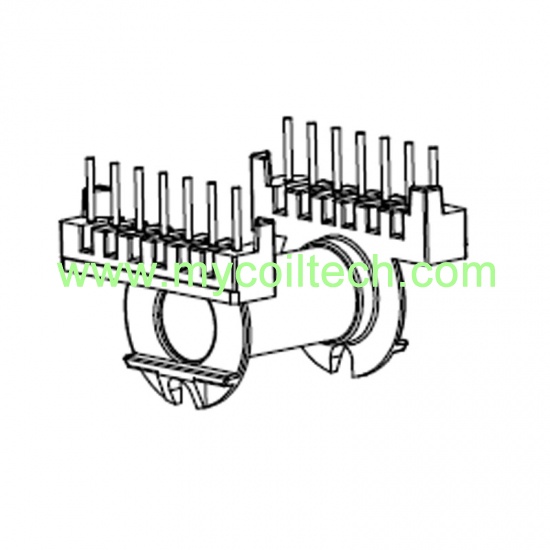

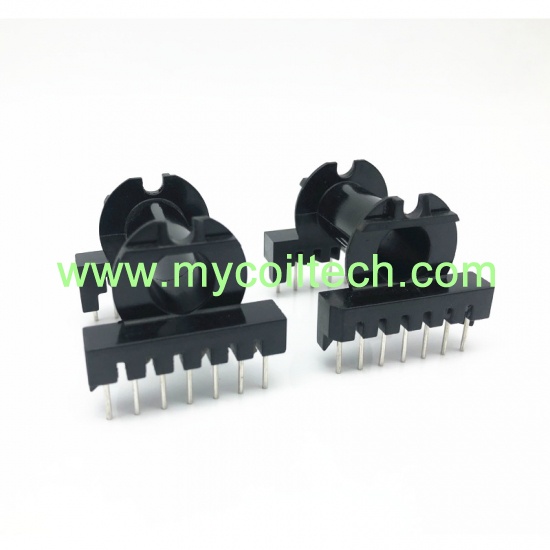

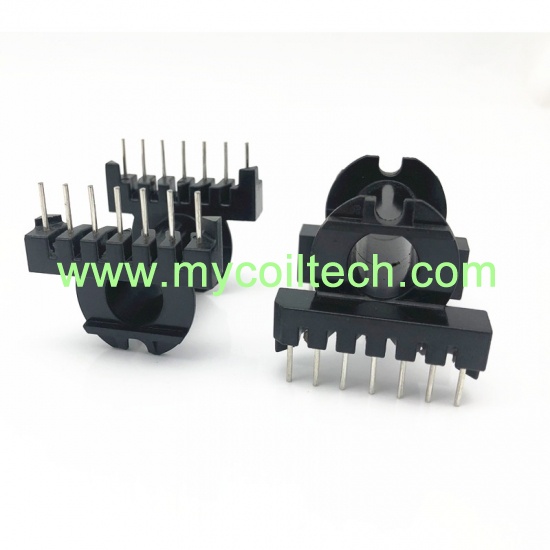

14 Pins ER35 horizontal electronic transformer bobbin.
Parallel Distance=37mm. ER35 phenolic bobbin. DIP bobbin.
Bobbin Size=44mmX36mmX28.7mm. UL REC:94V-0.
brand:
MCTitem no.:
MCT-ER3508(H7+7P)MOQ:
1shipping port:
ShanghaiChina electronic components factory direct selling ER35 horizontal transformer bobbin, 7+7 pins phenolic bobbin, accept custom made and OEM service, any request welcome to contact us.
Quick Details
|
Part Number: MCT-ER3508(H7+7P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ER35 High Frequency Low Power Consumption Transformer Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
ER28 High Frequency Transformer Horizontal Bobbin
ER28 ferrite core bobbin, 5+5 pins ER28 single slot coil former. Bobbin size=29mmX25.8mmX21.0mm, parallel distance=23.0mm, pin pitch/distance=5.8mm. T375 material ER28 bobbin, we can custom final transformers.
