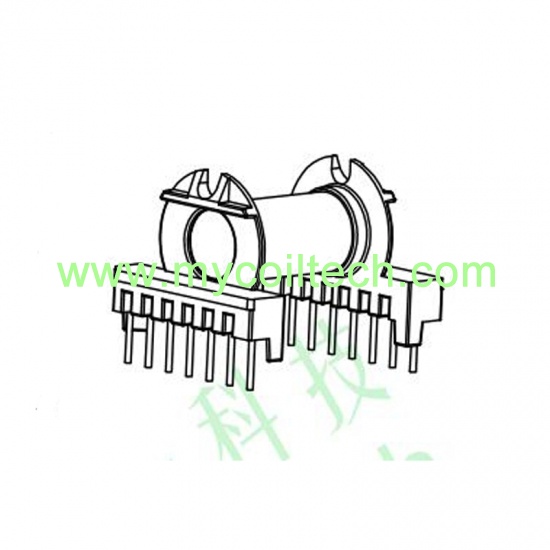

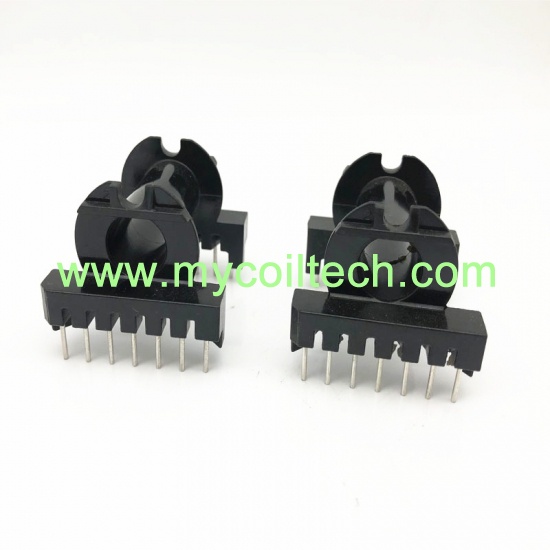

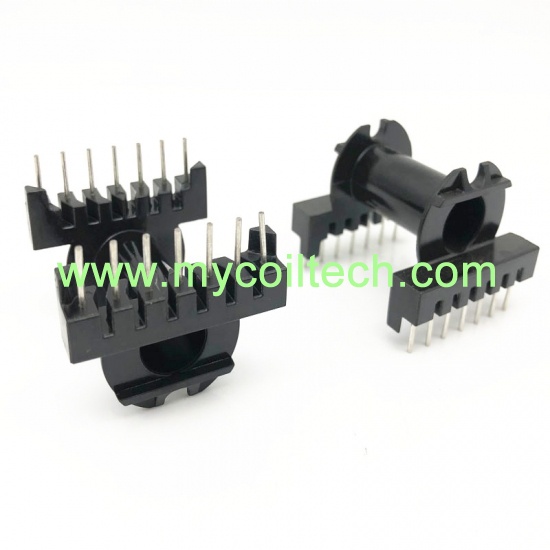

ER35 High Voltage Transformer Frame Horizontal Bobbin

ER35 high frequency transformer. Horizontal ER35 7+7 pins coil former. Bobbin size=40.0mmX36.0mmX27.7mm, pin distance=5mm, parallel distance=37.0mm. We manufacture final electronic transformer for power suppliers, low magnetic leakage and good performance, welcome customized transformers.
  • brand:

    MCT
  • item no.:

    MCT-ER3508-1
  • shipping port:

    Shanghai
  • payment:

    T/T in advance; PayPal
contact now
product description

Hot selling ER35 horizontal coil bobbin, 7+7 pin phenolic coil former factory, we supply matched ER35 EC35 ferrite cores.


Bobbin Specification

ER35 ferrite core bobbin


If you are interested in our product, welcome to contact us:

Email:  sales003@mycoiltech.com

Skype:  live:sales003_125

Contact: Miss Lily

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
