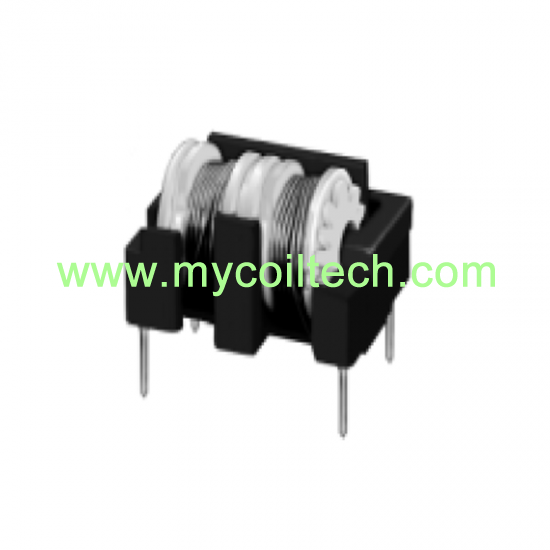

ET12 high current common mode chokes has moderate size and large inductance. Easy to make,low cost and high reliability. Excellent attenuation characteristics in low frequency.
brand:
MCTitem no.:
ET12 Series Common Mode Chokeshipping port:
Shanghai PortCommon mode choke inductors are applied to supply and return pairs of conductors, are ideal for EMI filtering of signal and power lines. Hefei Mycoil Technology Co., LTD is professional manufacture in designing, producing and selling electronic transformers, choke coils and full range of SMD power inductors. All the goods we shipped, are all meet customers requirement strictly. We offer OEM services on all our product lines. Design and manufacture of new models are also available.
Quick Details
Part No: ET12 Series Common Mode Choke |
|
Brand name: MCT |
Working frequency range:20kHz-500kHz |
|
Custom made: Available |
Operating temperature range: -40℃~+125℃ |
|
Logo: Can be customized |
Storage temperature: +85℃~-25℃ |
|
Packing: Carton,can custom |
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
DC resistance: 0.15Ω~4.0Ω @25°C |
|
OEM: Available |
Rated current:0.20~1.1 50Hz(A) |
|
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: ET12 Line Filter Common Mode Choke Inductor For Signal And Noise Suppression
Applications: Switching power supply, Lighting equipment, Data transmission,Wind generators, Frequency Converter.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.

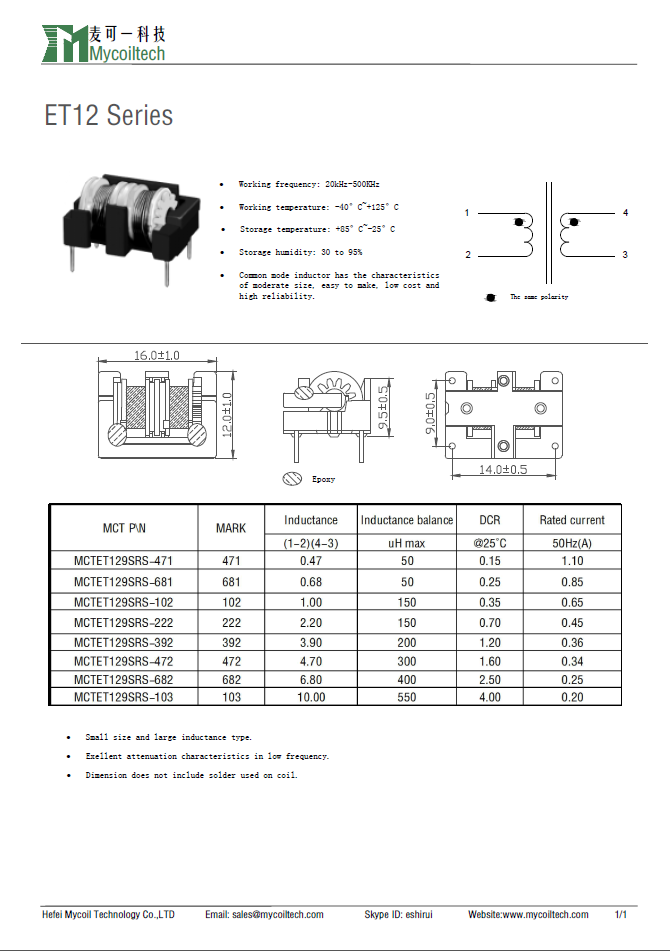

Product Specification
Please, if you have any other questions or inquiry about packing, shipping time, delivery, payment and etc,contact us.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
ET20 high current common mode inductor has light weight, easy to round and , low magnetic leakage flux, high reliability, windings balanced within 1%.
ET35 Common Mode Choke has high impedance at applicable frequency, high self-resonant frequency and provides excellent noise suppression for high frequency ranges.
ET28 horizontal/vertical common mode chokes are applied to supply and return pairs of conductors, are ideal for EMI filtering of signal and power lines.
ET24 series common mode chokes are designed in using common mode choke coil structure to enable nice noise suppression.
UI48 Printed Circuit Board Flat type transformers Output Power: 40.0 VA – 60.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.
EF(4+4pin) horizontal bobbin. Multi section coil former. Bobbin Size=26.2mmX25.4mmX21.0mm. Pin pitch=5.0mm. Parallel Distance=19.9mm. PA66 material transformer bobbin. DIP bobbin.
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.5mmX9.2mmX12.4mm
EF25 horizontal two slots bobbin. 4+4 pins EF25 transformer bobbin. Bobbin Size=25.7mmX25.6mmX20.5mm. Parallel Distance=20mm. Pin pitch=5mm. Phenolic material bobbin. DIP transformer bobbin.
Double slot vertical EF25 bobbin, high frequency bobbin 5+5 pins. Parallel Distance=12.7mm. Pin distance=5.13mm. Bobbin Size=23.9mmX16.5mmX24.8mm. Flyback transformer EF25 bobbin with PA66 PET FR530 material. We can make new EF25 bobbin tooling to meet special size bobbin.
Telecom transformer RM10 bobbin. Vertical 6+6 pin RM10 L pin bobbin. MP4/MP44/MP95 material RM10 ferrite cores. Bobbin Size=39.3mmX23.2mmX19.1mm. Parallel Distance=27.9mm. Pin Pitch1=5.08mm. Pin Pitch2=3.81mm. RМ10 transformer used in switching power supply and kinds of high-frequency circuit board, it has small volume and light weight
Multi section transformer bobbin. EF20 horizontal type bobbin. Bobbin Size=20.9mmX20.0mmX19.65mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. 4+4 pins transformer DIP bobbin. PBT material transformer bobbin.
3+2 Pins Dip Base,LCP Material,UL REC:94V-0 Inductor base size=10.6mmX10.6mmX4.3mm
