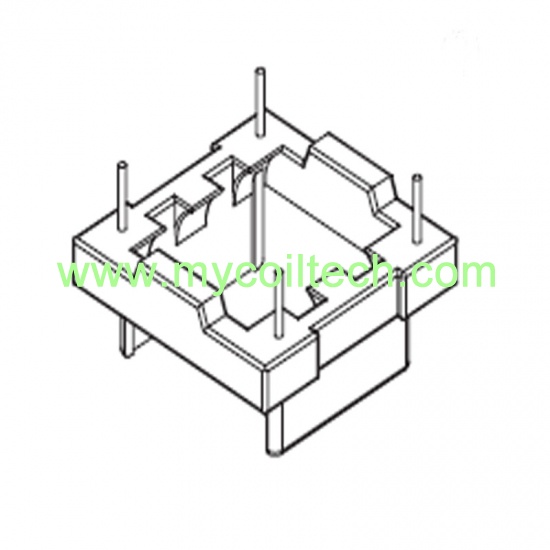

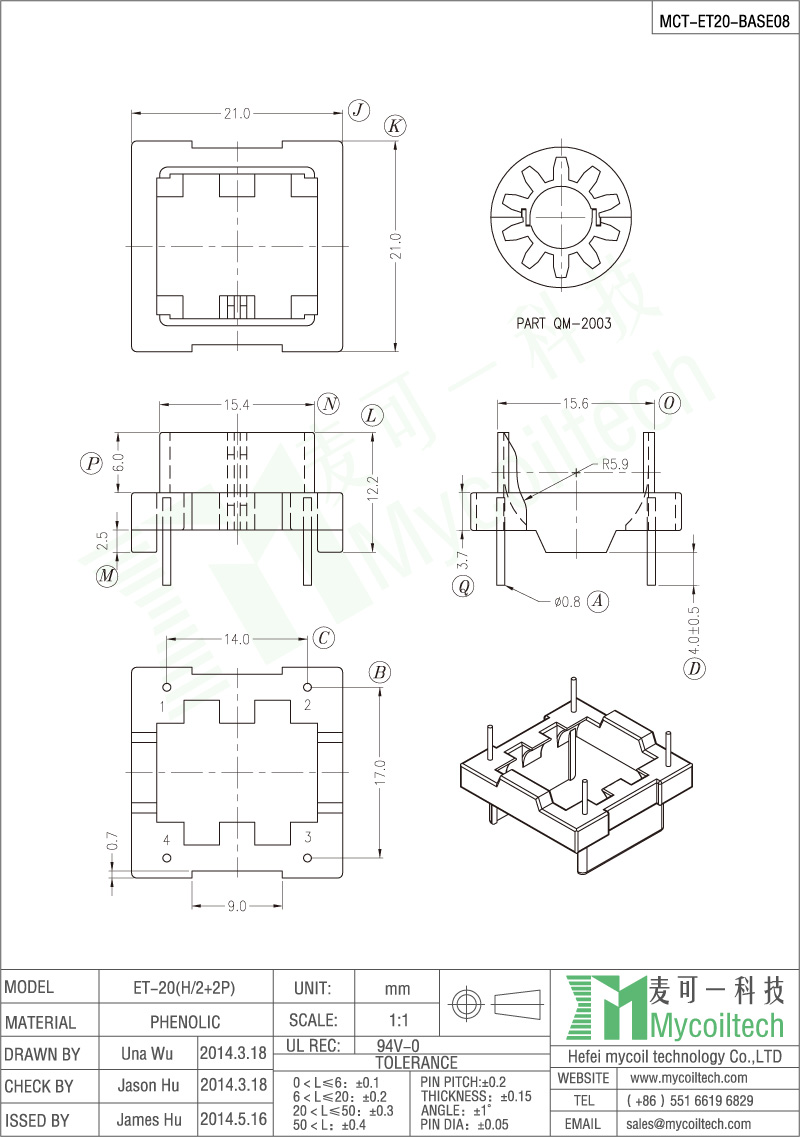

ET20 common mode choke base. 2+2 pins ET20 horizontall bobbin base. Base Size=21mmX21mmX12.2mm. ET/UT20 phenolic material bobbin base. Pin pitch=14mm. We can make tooling to meet different dimensions. UL REC: 94V-0
brand:
MCTitem no.:
MCT-ET20-BASE08shipping port:
ShanghaiHigh quality common mode choke base, ET20 horizontal bobbin base, fast delivery time, samples order acceptable, welcome for customized products.
Quick Details
|
Part No: MCT-ET20-BASE08 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ET20 Power Indcutor Bobbin Choke Coil Base
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
ET24 Common Mode Choke Bobbin With Four Slots
ET24 power inductor bobbin. 2+2 pins choke coil bobbin. ET28 vertical type coil former. ET/UT24 four slots bobbin. We can make tooling to meet different dimensions. Bobbin Size=17.0mmX17mmX18.8mm. UL REC: 94V-0
UT19 Bobbin Cover for Common Mode Choke Coils FBT Material Cover
UT/ET19 transformer bobbin cover for coil inductors. FBT material cover, we can make tooling to meet different dimensions. UL REC: 94V-0
ET20 High Frequency Transformer Bobbin Four Slots UT20 Bobbin
ET20 electronic transformer bobbin. ET/UT20 four section bobbin output transistors. Size=15.6mmX11.5mmX7.9mm. PBT material transformer bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
Double Slot ET20 Transformer Bobbin for Common Mode Choke Coil
ET20 filter inductor bobbin. ET/UT20 two section bobbin output transistors. Size=15.6mmX11.5mmX7.9mm. PBT material transformer bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
ET20 Common Mode Choke Bobbin Four Slots Coil Bobbin
ET20 high frequency transformer bobbin. ET/UT20 four section bobbin. Size=15.4mmX15mmX7.5mm. Phenolic material ET/UT series transformer bobbins. We can make tooling to meet different dimensions. UL REC: 94V-0
ET20 Power Line Filter Inductor Bobbin Four Slots ET Bobbin
Four slots ET20 coil bobbin. ET/UT20 PBT material bobbin. Bobbin Size=15.65mmX13.9mmX6.95mm. We can make tooling to meet different dimensions. UL REC: 94V-0
Four Slots ET20 Phenolic Bobbin For PCB Mount Transformer
ET20 four slots transformer bobbin. High frequency and good performance. Size=15.6mmX12.5mmX7.8mm. Phenolic material ET/UT bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
Filter Inductor Bobbin ET20 Four Slots Transformer Bobbin
ET20 high frequency coil former. ET/UT20 PBT material bobbin. Bobbin Size=15.65mmX11.3mmX6mm. We can make tooling to meet different dimensions. UL REC: 94V-0
ET28 Single Slot Vertical Transformer Bobbin 4+4 Pins
ET28 4+4 pins high frequency bobbin. Vertical ET28 coil former. Bobbin Size=34.7mmX29.2mmX29.2mm. ET/UT28phenolic material bobbin.We can make tooling to meet different dimensions. UL REC: 94V-0
ET28 Four Slots Transformer Bobbin For Inductor Base
ET28 no pins transformer bobbin. ET28 vertical/horizontal type coil former. ET/UT28phenolic material bobbin. We can make tooling to meet different dimensions. Bobbin Size=21.6mmX16mmX6.9mm. UL REC: 94V-0
ET28 Double Slots Transformer Ferrite Core Bobbin
ET28 double slots bobbin. ET28 vertical/horizontal type coil former. ET/UT28 phenolic material bobbin. We can make tooling to meet different dimensions. Bobbin Size=21.6mmX16mmX6.9mm. UL REC: 94V-0
ET20 Vertical 2+2 Pins Inductor Base For Transformer
ET20 vertical coil bobbin base. 2+2 pins ET20 coil former. Base Size=21mmX16mmX15.5mm. Pin pitch=13mm. ET/UT20 phenolic material bobbin base. We can make tooling to meet different dimensions. UL REC: 94V-0
