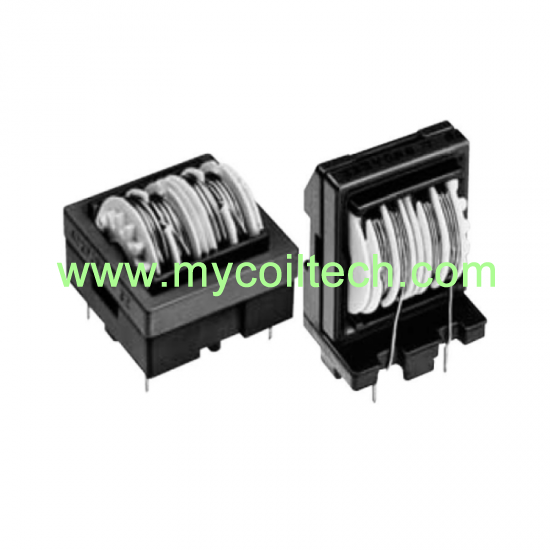

ET24 series common mode chokes are designed in using common mode choke coil structure to enable nice noise suppression.
brand:
MCTitem no.:
ET24 Series Common Mode Chokeshipping port:
ShanghaiET24 common mode chokes or coils with 2.4~68mH inductance, always used to block AC while allowing DC to pass, inductors designed for this purpose are called chokes. They are also used in electronic filters to separate signals of different frequencies, and in combination with capacitors to make tuned circuits, used to tune radio and TV receivers.
Common mode chokes are applied in electromagnetic interference (EMI) currents, function telephones, AC adapters, VCRS, switching power supply and etc. If you are looking for ET24 common mode choke inductor, you can find our products by different electrical parameters, such as inductance, impedance, rated current and DCR. We also can design as your requirements, you just offer us your specification or drawings.
Quick Details
Part No: ET24 Series Common Mode Choke |
|
Brand name: MCT |
Working frequency range:20kHz-500kHz |
|
Custom made: Available |
Operating temperature range: -40℃~+125℃ |
|
Logo: Can be customized |
Storage temperature: +85℃~-25℃ |
|
Packing: Carton,can custom |
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
Inductance range: 2.4mH~68mH |
|
OEM: Available |
Rated current:0.4~2.5 50Hz(A) |
|
Shipping: Air, Ship, etc |
DC resistance: 0.09Ω~2.3Ω @25°C |
|
MOQ: Any quantity |
Shape type: horizontal, vertical Weight≈19.5g |
|
Lead time: 25 days after payment |
Part Information
Product Name: ET24 Common Mode Choke Coils 2.4 To 68mH Inductance
Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Specification
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
ET20 high current common mode inductor has light weight, easy to round and , low magnetic leakage flux, high reliability, windings balanced within 1%.
ET35 Common Mode Choke has high impedance at applicable frequency, high self-resonant frequency and provides excellent noise suppression for high frequency ranges.
ET28 horizontal/vertical common mode chokes are applied to supply and return pairs of conductors, are ideal for EMI filtering of signal and power lines.
ET12 high current common mode chokes has moderate size and large inductance. Easy to make,low cost and high reliability. Excellent attenuation characteristics in low frequency.

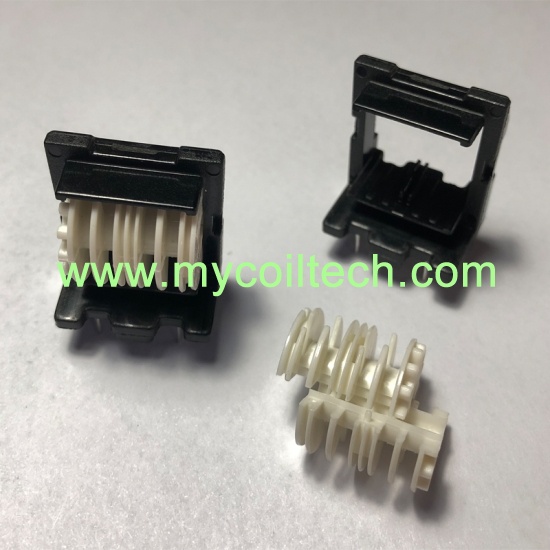

4+4 Pins Bobbin,PM-9630 Material,UL REC:94V-0 Vertical Bobbin, Size=11.55mmX8.1mmX4.45mm
High frequency RM7 transformer clip. SK7 material RM7 bobbin clip. Clip Size=12.7mmX4.5mmX2.9mm. We are ISO9001 certificated factory, we manufacture RМ series transformers, mainly used in switching power supply and kinds of high-frequency circuit board, it has small volume and light weight.
PQ type SMD large current shielded inductor. We design this power inductor wieh PQ20/16 ferrite core, wingding with flat copper-single layer. Operation temperature: -40°to+125°C. Less temperature rise. Mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.
Magnetic core EE130/40 bobbin. Supply matched ferrite cores. Bobbin Size=79.5mmX79.5mmX95.0mm. We are China transformer bobbin factory, we make bobbin tooling to meet special size bobbin requirememnts.
4+4 pin EVD25 ferrite core bobbin. Horizontal type EVD25 transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.
EER28 5+5 pin vertical bobbin. Lead free ER28 transformer bobbin. Bobbin Size=25.0mmX23.0mmX27.0mm. Pin Pitch=5mm. Parallel distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic material bobbin. UL REC:94V-0
RM14 electronic transformer clip. Iron clips SK7 material, we produce RM14 plastic bobbins and supply RM14 ferrite cores, clip size=27.55mmX8.0mm. RM14 transformer clip samples are available.
ETD34 SMPS transformer bobbin,16+16 pins lead free bobbin. ETD34 transformer frame, Parallel Distance=32.0mm. Pin pitch=2.54mm. Bobbin Size=41.8mmX38.6mmX30.04mm. We manufacture final ETD34 transformer for customer, with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
