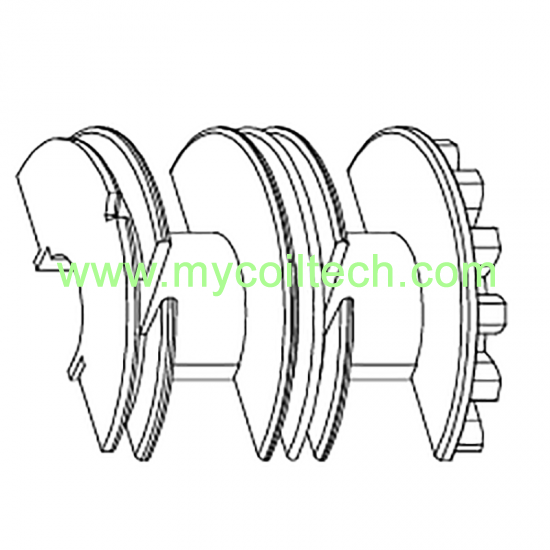

ET24 ECU Power Input Filter Inductor

ET24 high frequency filter bobbin ，This product is made of PBT material, which can withstand high temperatures of 120-150℃. It is suitable for high-temperature environments such as car engine compartments and industrial frequency converters, ensuring stable filtering performance. The dielectric strength is ≥20kV/mm, and its high insulation eliminates the risk of high-voltage short circuits, making it suitable for safety-sensitive fields such as new energy and medical care. Impact resistance up to 20kJ/m², vibration resistance, protection of winding structure, and extended service life. Resistant to oil, moisture and solvents, it can withstand complex environments without additional protection, reducing maintenance costs. The dimensional tolerance is ≤0.1mm, ensuring precise fit between the winding and the magnetic core, and consistent filtering effect. Compliant with UL94 V-0 flame retardant standards, it enhances equipment safety and facilitates compliance certification. To ensure the stability, safety and durability of equipment in industrial, automotive and other fields.

product origin:
China
brand:
MCT
item no.:
MCT-ET2403& MCT-ET2403-1
MOQ:
5000

contact now

product description

ET24 on-board charger (OBC) filter bobbin，Our products can be used in the industrial field, compatible with frequency converters and motor drives, suppress noise in the 50kHz-10MHz frequency band, withstand temperatures up to 150℃, and ensure equipment stability. In terms of automotive electronics, it is resistant to vibration and oil contamination in the engine compartment and on-board charger, complies with the CISPR 25 standard, and suppresses radiated noise. In medical equipment, high insulation (dielectric strength ≥20kV/mm) is suitable for safety-sensitive scenarios, and the low-noise design complies with the EN 60601 standard. In the field of communication and 5G, models with shielding covers suppress high-frequency radiation and optimize signal transmission in base stations and data centers. In new energy equipment, when handling currents above 3A, the ripple coefficient of the energy storage inverter is controlled to be less than 3%. Its PBT/phenolic resin skeleton is heat-resistant and impact-resistant, with flame retardancy (UL94 V-0), providing efficient noise suppression and reliable performance for multiple fields.

Production Specification 1

Design of high-frequency common mode inductors
