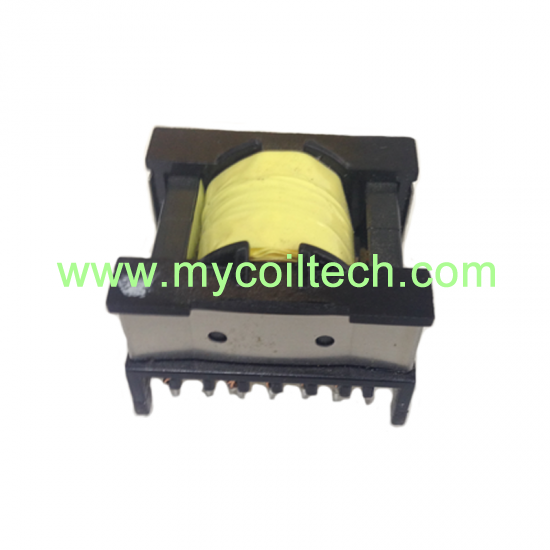

ETD34 SMPS transformers, power range 15~90W, with high operation voltage,large output power and thermal stability.
We provide samples for prototype testing, welcome custom.
brand:
MCTitem no.:
60~90W ETD34 Flyback Transformershipping port:
ShanghaiHefei Mycoil Technology Co.,LTD is professional electronic components manufacture, we make high frequency transformer, lamination transformer, audio transformer, encapsulate transformer, inductor, chokes. High frequency flyback transformer is one of our main products, we design and produce different power output range of high frequency flyback transformers, 0~12 W E16 flyback transformer, 10~18W EL19 flyback transformer, 12~24W EF20 flyback transformer, 120~180W ETD44 flyback transformer.
ETD34 power frequency transformers are widely used in SPC exchanges, color TV, VCD, DVD, mobile charger, PC power and other electronic instruments. We will feel appreciated if you can provide the parameters or photos of ETD34 flyback transformer. Size and electrical performance can be designed according to customers' R&D requirements.
Quick Details
|
Part No: 60~90W ETD34 Flyback Transformer |
|
Brand name: MCT |
|
The operating frequency: 40kHz-500KHz |
|
Custom made: Available |
|
Working temperature: -40 ℃ to + 125 ℃ |
|
Logo: Can be customized |
|
Storage temperature: -25 ℃ to + 85 ℃ |
|
Packing: Carton,can custom |
|
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
|
Power range: 15W~90W |
|
OEM: Available |
|
Shape type: horizontal, vertical |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: ETD34 High Frequency Flyback Transformers
Applications: Single-phase Transformer, DC-DC converter, Driving transformer, Power transformer, Digital camera, hand-held switching mode power charger.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Specification
If you have any needs, please contact us at any time, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
