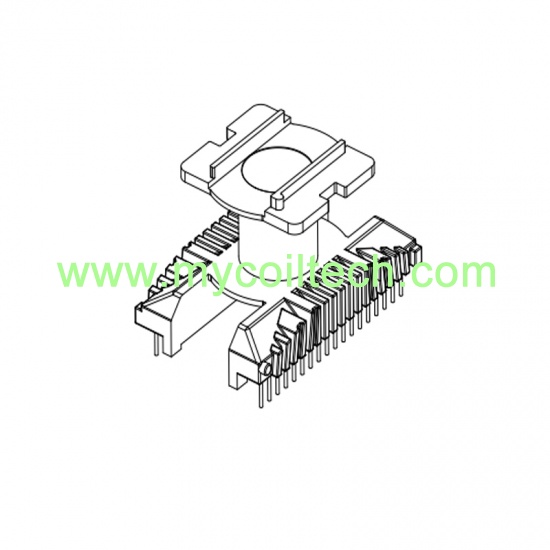

ETD39 High Flyback Transformer Bobbin 18+18 Pins

18+18 pins ETD39 vertical bobbin, ETD39 through hole transformer frame. Parallel Distance=25.3mm. Bobbin Size=47.7mmX31.6mmX29.6mm. Pin pitch=2.5mm, ETD39 electronic transformer has high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.

  • product origin:

    China
  • brand:

    MCT
  • item no.:

    MCT-ETD3909
  • shipping port:

    Shanghai
  • payment:

    T/T in advance
contact now
product description

18+18 pins vertical ETD39 coil former, high frequency bobbin, supply matched ETD39/EC39 cores, welcome customized electronic transformer.

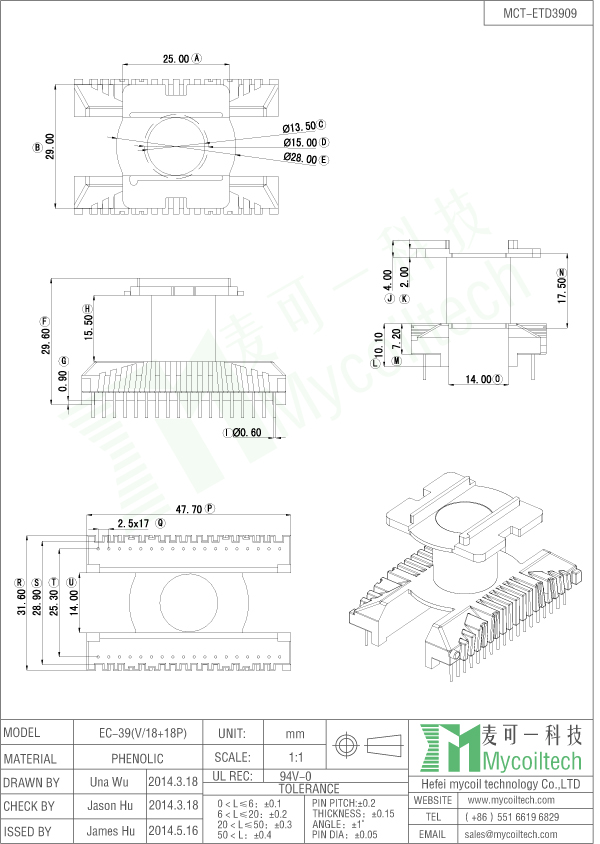

Product Specification

ETD39 vertical transformer


For more details, please contact us:

Email:  sales003@mycoiltech.com

Skype:  live:sales003_125

Contact: Miss Lily

Request a Free Quote

If you are interested in our products or have any questions, contact us now!

related products
  • 15+15 Pins ETD34 bobbin ETD34 High Frequency Transformer Frame

    ETD34 coil bobbin, 15+15 pins ETD34 horizontal transformer. Parallel Distance=30.0mm. Pin pitch=2.54mm. Bobbin Size=40.0mmX39.2mmX27.0mm. ETD34 soft ferrite core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.

  • ETD34 32 pins bobbin core 16+16 Pins Horizontal ETD34 Transformer

    ETD34 main transformer, 16+16 pins horizontal ETD34 bobbin. Parallel Distance=25.4mm. Pin pitch=2.54mm.Bobbin Size=41.8mmX38.6mmX30.04mm. ETD34 core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.

  • 16+16 Pins ETD34 Bobbin ETD34 High Power Transformer Bobbin

    ETD34 SMPS transformer bobbin,16+16 pins lead free bobbin. ETD34 transformer frame, Parallel Distance=32.0mm. Pin pitch=2.54mm. Bobbin Size=41.8mmX38.6mmX30.04mm. We manufacture final  ETD34 transformer for customer, with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.

  • switch mode transformer bobbin ETD59 Core Flyback Transformer Bobbin 13+13 Pin

    ETD59 flyback transformer. 13+13 pin horizontal ETD59 bobbin. Bobbin Size=66.8mmX66.2mmX48.35mm. Pin pitch=5.08mm. Parallel Distance=50.8mm. ETD59 high frequency transformer widely used in power supplies, fax machines, monitor, scanner, UPS and other equipments.

  • ETD49 Electronic Transformer Frame ETD49 Power Transformer Horizontal Coil Former

    ETD/ER/EC49 transformer bobbin. 10+10 pin horizontal ETD49 bobbin factory. Bobbin Size=56.0mmX54.4mmX35.35mm. Pin pitch=5.08mm. Parallel Distance=40.64mm. ETD49 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

  • ETD34 transformer horizontal bobbin 15+15 Pins ETD34 Power Transformer Frame

    ETD34 power transformer. 15+15 pins horizontal coil former. Bobbin Size=40.0mmX39.0mmX29.4mm. Pin pitch=2.54mm. Parallel Distance=29.0mm. We supply ETD34 EC34 ferrite core and transformers. ETD34 flyback transformer widely used in USB charge, LEDlighting, inverters, medicial supplies, power supply,amplifier,electrical equipments, etc.

  • ETD49 10+10 pin bobbin ETD49 Power Transformer Ferrite Core Bobbin

    PCB power transformer ETD49 bobbin 10+10 pins two slots. Bobbin Size=57.0mmX54.0mmX40.7mm. Pin pitch=5.0mm. Parallel Distance=41.0mm. High frequency transformer frame. Manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

  • Vertical ETD49 Bobbin Switching Mode Power Transformer ETD49 11+11 Pin Bobbin

    ETD49 core transformer frame. 11+11 pin ETD49 vertical bobbin wholesale. Bobbin Size=53.5mmX36.0mmX54.2mm. Pin pitch=5.0mm. Parallel Distance=27.6mm. ETD49 high frequency transformer widely used in power suppliers, PCB circuits, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

  • ETD44/ETD39/ETD59 Series Coil Bobbin ETD44 Flyback Transformer Horizontal Bobbin 9+9 Pins

    ETD44 high frequency bobbin. Horizontal ETD44 transformer. Bobbin Size=50.6mmX49.5mmX39.3mm. Pin distance=5.0mm. Parallel Distance=35.7mm. Lead free transformer bobbin. DIP bobbin.

  • 10+10 pins vertical ETD49 bobbin ETD49 High Voltage Transformer Ferrite Bobbin

    ETD49 PCB mounting transformer, 10+10 pins ETD49 vertical coil former. Bobbin Size=61.4mmX33.9mmX56.0mm. Pin pitch=5.08mm. Parallel Distance=30.48mm. PET material ETD49 HF transformer frame.Manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

  • 13+13 pins ETD29 transformer frame ETD29 Transformer Ferrite Core Horizontal Bobbin

    ETD29 power transformer bobbin. Ferrite core ETD29 bobbin 13+13 pins. Bobbin Size=34.7mmX34.6mmX24.3mm. Parallel Distance=25.4mm. Pin pitch=2.54mm. We manufacture various types of electronic transformers. Most of products are accept custom design and OEM service according to the requirements of the customers.

  • ETD34 Horizontal Electronic Transformer Bobbin with 7+7 Pins 7+7 Pins ETD34 High Frequency Flyback Electronic Transformer Bobbin

    7+7 Pins ETD34 bobbin for transformer. Parallel Distance=25.6mm. 14 Pins horizontal ETD34 transformer bobbin. Phenolic bobbin. Bobbin Size=39.9mmX35mmX29.9mm. UL REC:94V-0.
